Yueqing Winston Electric Co., Ltd. >> DIN Rail Switching Power Supply with CE (DR-75 75W)

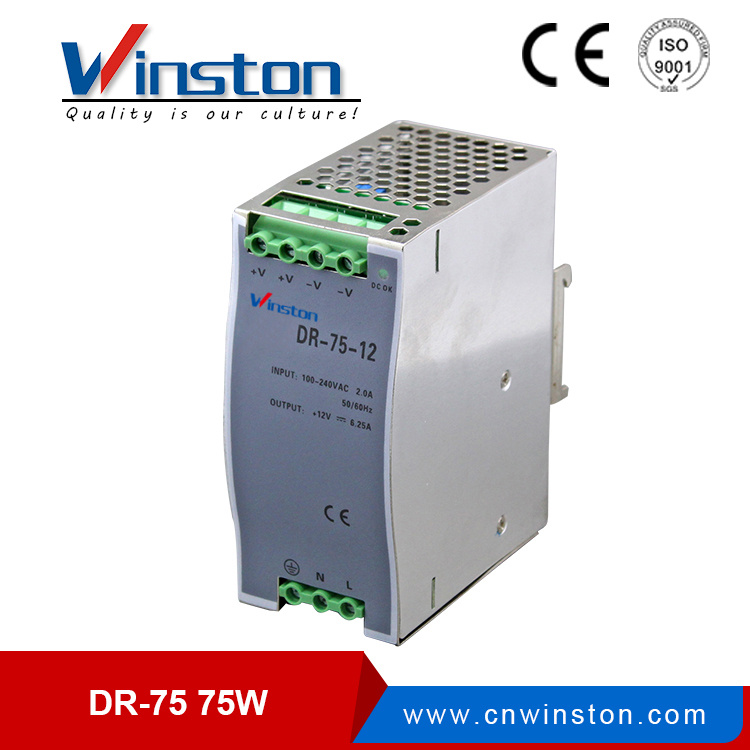

DIN Rail Switching Power Supply with CE (DR-75 75W)

DIN Rail Switching Power Supply with CE (DR-75 75W)
Price: US $ 12.1-14.3/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 10/Piece
Pay Type: L/C,T/T,Western Union,Paypal,Money Gram
Prod Model: DR-75-12 DR-75-24 DR-75-48
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Western Europe
Antistop: Switching Power Supply
Workmanship: The Exquisite German Technology
Test: 100% Full Load Burn-in Test
Dimension: 55.5*125.2*100mm
Cooling: by Free Air Convection
Display Usage: LED Indicator
Output Type: Single
Warranty: 2 Years
Output Power: 51 - 100W
Input Voltage: 110-220V
Connection Mode: Series Switching Power Supply
Starting Mode: Self-excited Switching Power Supply
Voltage Regulating Mode: Frequency Modulation Type
Power Supplying System: Terminal Power Distribution Equipment
Certification: ISO
Brand: Winston

Product Description

DR-75W SINGLE OUTPUT DIN RAIL POWER SUPPLY (DR-75-12 DR-75-15 DR-75-24 DR-75-48)
Product Description:

Features:
       ·universal AC input
       ·Small volume,low weight,high efficiency
       ·Protections:short circuit/over load/over voltage
       ·cooling by free air convectio
       ·can be installed on DIN rail: TS-35/7.5or TS-35/15
       ·LED indicator for power on
       ·100% full load burn-in test

       ·2 Year warranty


ModelDR-75-12DR-75-15DR-75-24DR-75-48



output
DC Voltage12V15V24V48V
Rated current0-6.3A 0-5A0-3.2A0-1.6A
Rated power 75.6W76W76.8W76.8W
Wave and noise100mvp-p150mvp-p150mvp-p240mvp-p
Adjustable range for DC voltage±10%±10%±10%±10%


input
Input voltage range85~264VAC,120~370VDC  47-63Hz
Efficiency 76%80%80%81%
Impact currentCold start current 20A/115VAC,40A/230VAC

protection
Overload105%~150% cut off the output, automatic  recovery
Over voltage121%-142% shut down O/P voltage, re-cover on to recover
environmentWorking temperature-10ºC~+50ºC
Withstand voltageI/P-O/P:1.5KV I/P-FG:1.5KVAC O/P-FG:0.5KV 1minute
safetyIsolation resistanceI/P-O/P,I/P-FG,O/P-FG:100M ohms/500VDC
othersDimension 55.5*125.2*100mm (L*W*H)
Packing 0.6kg/24pcs/14kg/42*25*24cm
note1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25ºC of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.

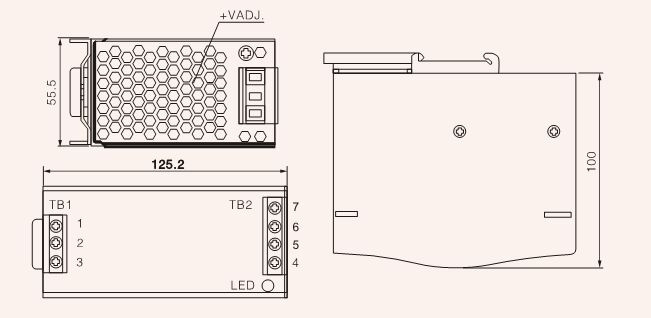

Dimension

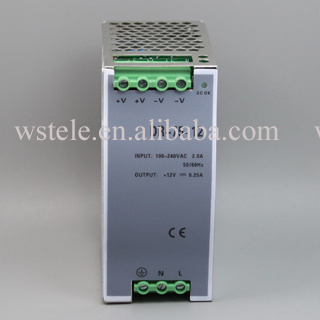

DETAILS
