Dixell Refrigeration Controller Xc420c Two Compressor Parallel Controllers

Name: Dixell Refrigeration Controller Xc420c Two Compressor Parallel Controllers
Brand: all-electronics-online.com
SKU: 729546355
Availability: InStock
Rating: 4.9 (132 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	XC420C
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Temperature Controller
Usage:	Refrigerator
Control Type:	Digital
Display Type:	LED
Material:	Plastic

Product Description

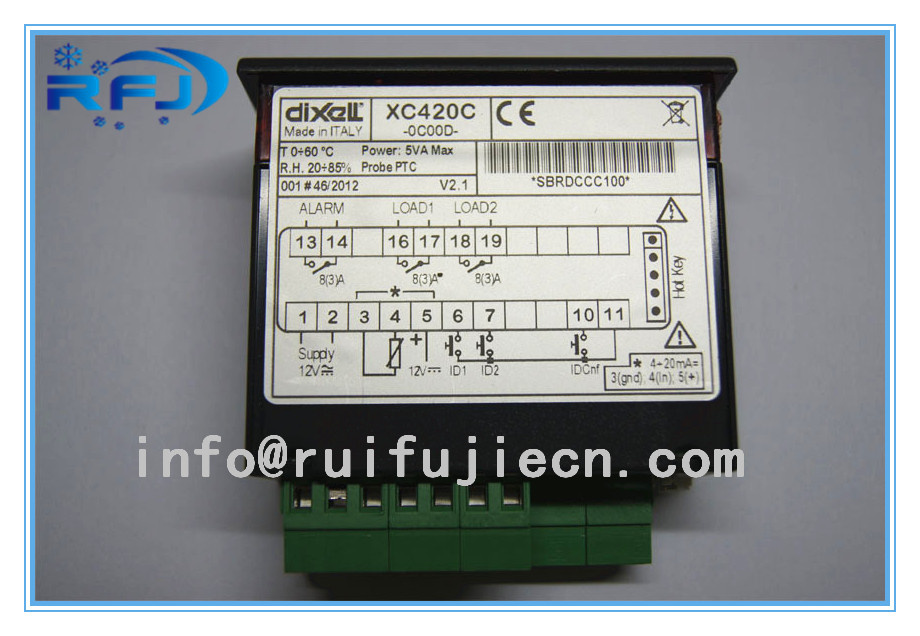

Dixell Refrigeration Controller Two compressor parallel controllers XC420C

The XC420C is used to control the compressor or fan in the condenser system.

Compressor can be single stage, multi-level or different power.

The pressure or temperature of the LP side of the LP (compressor) or HP side (condenser side) is adjusted to cause the unit pressure

The force or temperature is controlled in a neutral or linear proportional region.

The unique internal programming algorithm can balance the operation time of each compressor and ensure the operation time of each compressor

Between homogeneous.

The controller can convert pressure and temperature display to each other.

The front control panel provides the full operating status of the system: the suction/condensation pressure (temperature) value, the load operation condition, whether it is in

Alarm or check status.

Each load has a corresponding alarm input.Once the alarm is activated, the controller will issue a protective action command to cut off the load in time.

Hot keys can be used to set the parameters quickly when starting up.

Through modbus-rtu protocol, TTL output ports can be provided with centralized monitoring system XWBE300D, XWED500 connection.

HOW TO ORDER
PRIME CX

A	B	C				D			E
Power Supply	Inputs	-	Buzzer	X-REP (excludes TTL output)	RS485 output	-	Measurement unit	RTC	-	Compressor output	Connection
0 = 12Vac/dc	P = PTC	0	No	No	No	C	°C	No	0	8A	Screw
1 = 12Vac/dc	N = NTC	1	Yes	No	No	F	°F	No	1	20A	Screw
2 = 24Vdc	S =Pt1000 only for XR35/75CX	2	No	Yes	No	H	°C heating only for XR10CX	No	3	16A	Screw
3 = 9 ÷40Vdc	S =Pt1000 only for XR35/75CX	3	Yes	Yes	No	H	°C heating only for XR10CX	No	6	8A	Faston
4 = 110Vac	- - - -	4	No	No	Yes	L	°F heating only for XR10CX	No	7	20A	Faston
5 = 230Vac		5	Yes	No	Yes	L	°F heating only for XR10CX	No	8	16A	Faston
- -		6	No	Yes	Yes	I	°C	Yes	- -	- -	- -
- -		7	Yes	Yes	Yes	M	°F	Yes	- -	- -	- -
