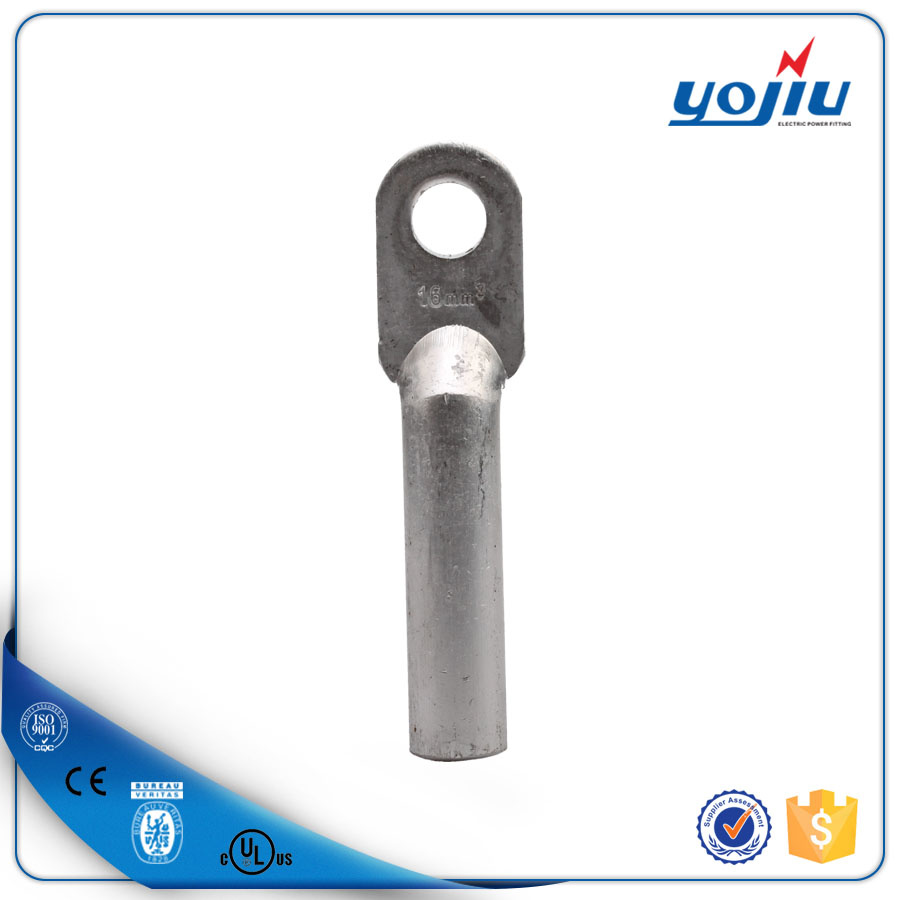

Dl Series Aluminum Lug Oil Plugging Cable Terminal

Name: Dl Series Aluminum Lug Oil Plugging Cable Terminal
Brand: all-electronics-online.com
SKU: 840398285
Availability: InStock
Rating: 4.5 (20 reviews)

Price:	US $ 0.05-2/Piece
Min Order:	500/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	DL
Yojiu Profession:	28 Years
Crimp Terminal Surface:	Original or Tin Plated
Crimp Terminal Material:	Aluminium
Usage:	Wire Connector, Power
Others:	OEM Service Offered
Product Name:	Dl Lug
Name:	Aluminium Cable Lug
Special:	Good Quality
Certificate:	ISO9001
Samples:	Available
Type:	Single Hole Terminals
Material:	Aluminum
Application:	Conduct Electricity
Character:	Other
Interface Type:	Other
Certification:	Other
Brand:	Yojiu or OEM

Product Description

Product Description

DL Aluminium lug Oil -Plugging terminal lug

DL Aluminium terminal lug( Oil -Pluggin) are suitable for the connection of wires, cable in the disthibution equipment andelectrical equipment. DL series of aluminum connecting terminals are press with aluminum ba

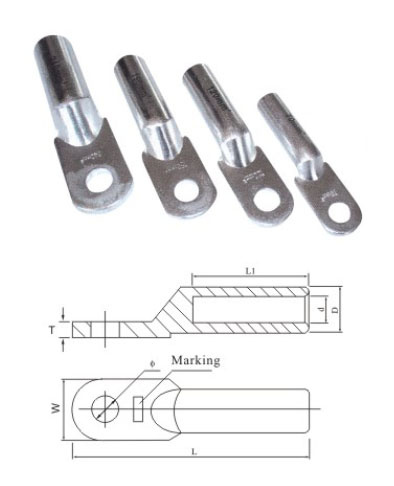

Dimension

Item No.	Cable spec (mm²)	Dimensions(mm)							Note
Item No.	Cable spec (mm²)	D	d	L	L1	W	T	φ	Note
DL16	16	11	6.4	70	32	16	4.5	8.5	(1) Can be produced according to customer's drawings
DL25	25	12	7.4	75	35	18	4.5	8.5
DL35	35	14	8.7	85	39	20	4.8	10.5
DL50	50	16	9.7	90	40	23	5.5	10.5
DL70	70	18	11.7	100	43	26	5.5	12.5
DL95	95	20	13.7	112	50	28	5.8	12.5
DL120	120	22	15.2	120	52	30	6.5	14.5
DL150	150	24	16.7	126	55	33	6.7	14.5
DL185	185	27	18.7	133	60	37	7	17
DL240	240	30	21	140	61	40	7.2	17
DL300	300	34	23	165	65	50	7.5	21
DL400	400	38	26	170	70	50	8	21
DL500	500	40	29	190	75	60	10	21
DL630	630	45	34	220	80	60	10.5	21
DL800	800	60	38	250	100	80	11	21

We are the biggest manufacturer and exporter of electric power fitting and cable accessory in China. We have more than 20 years experience and we are ISO9001/2000 certified enterprise. Our campany located in Liushe Town, Wenzhou. Liushi is the centr of eelectric appliance in China. It isabout 15Kmfar away from Wenzhou Airport and Railway Station and 104State level highway across through. Therefore the transportation is very convenient.

The total area of our company is over 1500m2. We have more than300 workers include 38 senior and intermcdiate special technical personnel and administraive personnel. We havemore than 200 series and 3000 vareties products. Include cable hardware, circuity hardware, substation hardware, power station hardware, cabletie, heat or cold shrinkable material and other accessory.

Our product has been exported to the Southeast Asia, Africa, Middle East, Europe and America more than 40 countries. In our trade with merchants of various countries, we always adhere to theprinciple of equality and mutual benefit. Welcomecustomers in this line to come over for negotia-tion and cooperation and make contribution to development of electric power.
