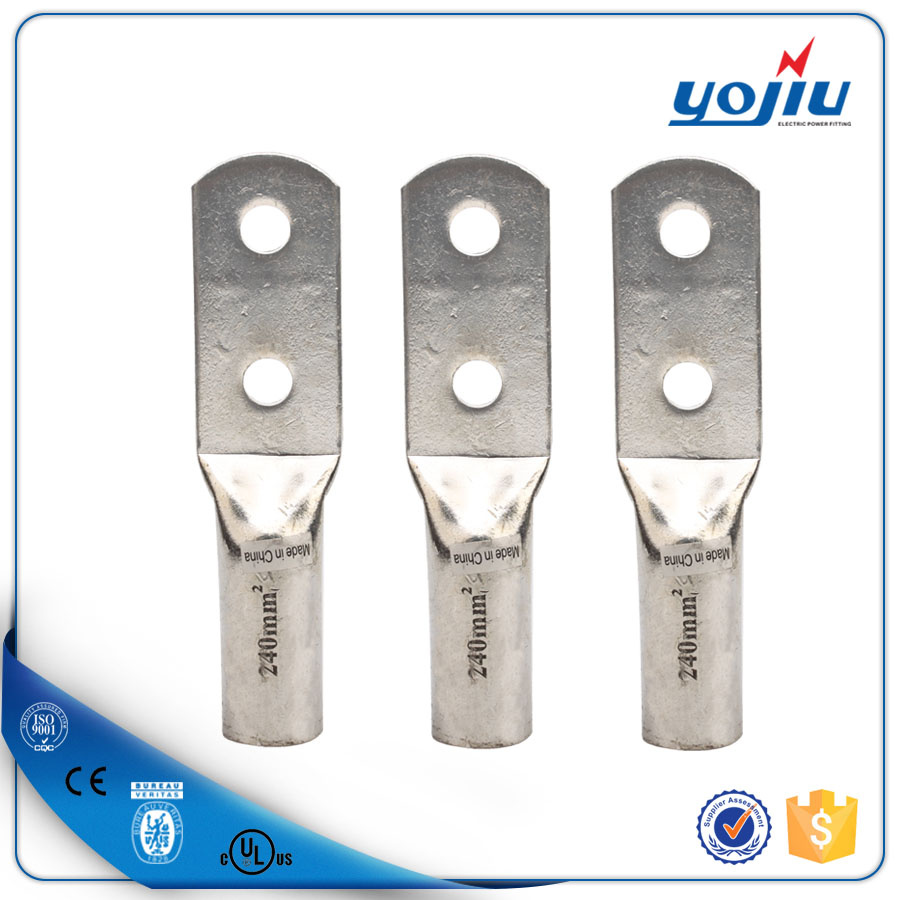

Double Holes Copper Crimping Tinned Cable Lug

Name: Double Holes Copper Crimping Tinned Cable Lug
Brand: all-electronics-online.com
SKU: 828183065
Availability: InStock
Rating: 4.4 (137 reviews)

Price:	US $ 0.2-15/Piece
Min Order:	500/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	DTGD
Yojiu Profession:	28 Years
Crimp Terminal Surface:	Original
Crimp Terminal Material:	Copper
Usage:	Wire Connector, Power
Others:	OEM Service Offered
Product Name:	Dtgd Copper Lug
Name:	Copper Cable Lug
Special:	Good Quality
Certificate:	ISO9001
Samples:	Available
Type:	Dual Hole Terminals
Material:	Copper
Application:	Conduct Electricity
Character:	Other
Interface Type:	Other
Certification:	Other
Brand:	Yojiu or OEM

Product Description

Product Description

DTGD Copper cable lug ,terminal lug,tublar type with two holes

DTGD copper termian cable lugs are suitable for the connection of copper conductors (section 10-300mm2) in power cable with electronic equiment. They are made of higher 99.9% percent pure copper tube T2 by die cast.The color can be red or Tin plated,according to the customer's requirem

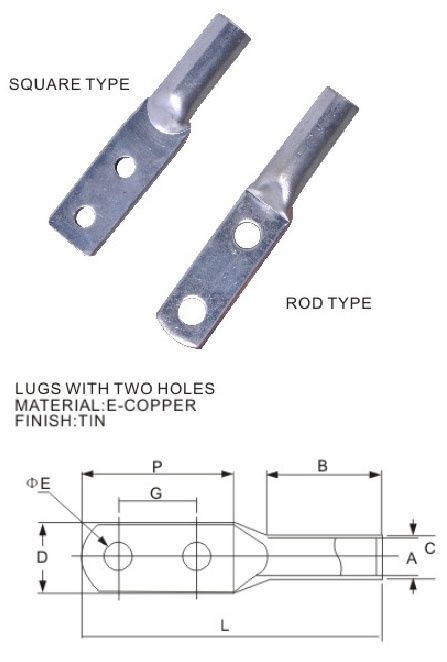

Dimension

Item No.	φE	Dimensions(mm)
Item No.	φE	A	C	D	G	P	B	L
DTGD16	10.5	5.4	7.1	15	40	64	15	84
DTGD25	10.5	6.8	8.8	18	40	64	15	87
DTGD35	10.5	8.2	10.8	18	40	66	17	90
DTGD50	13	9.5	12.4	22.5	40	66	27.5	102
DTGD70	13	11.2	14.7	24	40	67	30	107
DTGD95	13	13.5	17.4	26	40	67	33	111
DTGD120	13	15	19.4	28	40	70	36	118
DTGD150	13	16.5	21.2	31	40	72	44	130
DTGD185	13	18.5	23.5	35	40	75	55	140
DTGD240	13	21	26.5	38	40	78	55	150
DTGD300	13	23.5	30	42	40	78	55	160

We are the biggest manufacturer and exporter of electric power fitting and cable accessory in China. We have more than 20 years experience and we are ISO9001/2000 certified enterprise. Our campany located in Liushe Town, Wenzhou. Liushi is the centr of eelectric appliance in China. It isabout 15Kmfar away from Wenzhou Airport and Railway Station and 104State level highway across through. Therefore the transportation is very convenient.

The total area of our company is over 1500m2. We have more than300 workers include 38 senior and intermcdiate special technical personnel and administraive personnel. We havemore than 200 series and 3000 vareties products. Include cable hardware, circuity hardware, substation hardware, power station hardware, cabletie, heat or cold shrinkable material and other accessory.

Our product has been exported to the Southeast Asia, Africa, Middle East, Europe and America more than 40 countries. In our trade with merchants of various countries, we always adhere to theprinciple of equality and mutual benefit. Welcomecustomers in this line to come over for negotia-tion and cooperation and make contribution to development of electric power.
