Driver LEDs 80W Power Supply

Name: Driver LEDs 80W Power Supply
Brand: all-electronics-online.com
SKU: 687679795
Availability: InStock
Rating: 4.4 (32 reviews)

Price:	US $ 0.1/Piece
Trade Terms:	DHL,UPS
Min Order:	10/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	TY-D80W
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Power Factor:	> 98%
Usage:	Industry
Output Type:	Single
Driving Method:	LED Regulator Voltage
Circuit Structure:	Capacitor Step-down
Brand:	LED Taoyuan

Product Description

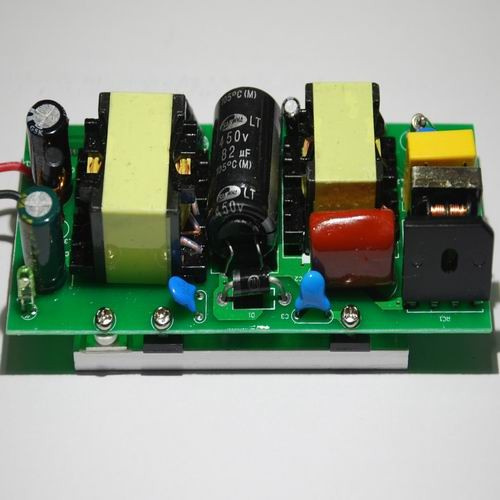

Drive LEDs 80W constant current power supply is a power LED, is the use of switching power converters, causing isolated constant current power supply, the output current is constant and adjustable, the design must pay attention to the high input power factor.

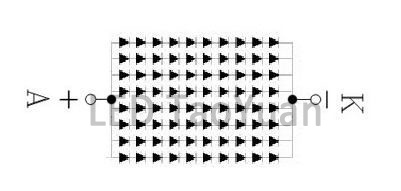

High-power LED drive 80W Features: Product is suitable for single high-power LED 80W built-in LED drivers. Circuit with constant current, constant voltage, overload, short circuit protection circuit. 8 for 10 series and integrated light. Such as the projection lamp, floodlight, street light power-driven model soon
High-power LED drive 80W is suitable for single 80W built-in high-power LED drive circuit,
LED drive 80W Size: 90mm * wide 55mm * High 35mm, .

High-power LED drive 80W Product Parameter Table:

Power Specifications	Input voltage	Output Voltage	Output Current	Power Factor	Efficiency
1PCS X 80W	85-265VAC	32-36V DC	2500± 3%mA	> 98%	> 90%

UV LED power supply, constant current drive designed for high power UV LED module light, LED floodlight, LED street light, LED tunnel light design, such as special power supply converter. LED power driver circuit have different power, different specifications for different requirements, to install in the internal and external of lamps and lanterns. Products are not waterproof (naked), waterproof products, low input and high voltage input for the customer to choose. LED power supply drives the commonly used products are the output power of 10W, 20W, 30W, 50W, 60W, 80W, 100W, 120W, etc. High-power LED constant current power supply drives the output, low temperature, stable performance and can work for a long period of time. Ensure that the service life of high power leds. Wide voltage input AC: 85-265 V.

TAOYUAN ELECTRON (HK) LIMITED is specializing in the production and sales. Our main products have: High power UV LED, UV LED series (UV LED 3W, LED 10W, LED 30W, LED 50W, LED 100W, UV LED 200W). UV LED lamps, UV curing lamps, UV flashlights, UV Solutions. Collected advantages of exquisite technology and experienced talents, we are committed to further research and manufacture, to create new LED world.

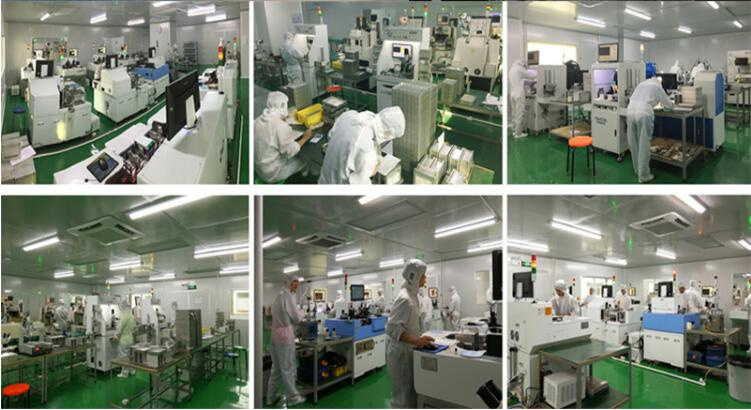

The factory has passed the certification and operated strictly according to the requirements of authentication system, and our LED Products are characterized with low power consumption, low attenuation, high brightness, long life and so on.

TAOYUAN ELECTRON (HK) LIMITED pursues the principle of "Customer First, Customer Supreme". We have advantage of reasonable price, fast delivery, quality assurance, wide variety of goods. We sincerely hope to cooperate with the merchants in home and abroad and to create a better tomorrow.
