Dt Copper Cable Lug Copper Connecting Terminals Sealed Cable Lugs

Name: Dt Copper Cable Lug Copper Connecting Terminals Sealed Cable Lugs
Brand: all-electronics-online.com
SKU: 765251625
Availability: InStock
Rating: 4.7 (150 reviews)

Price:	US $ 0.05/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application:	Wer Supply
Environmental Protection:	Resistance to Environmental
Connection Mode:	In-Line Connector
Shape:	Rectangle
Contact Termination Form:	Screws Fixed
Brand:	Jwl

Product Description

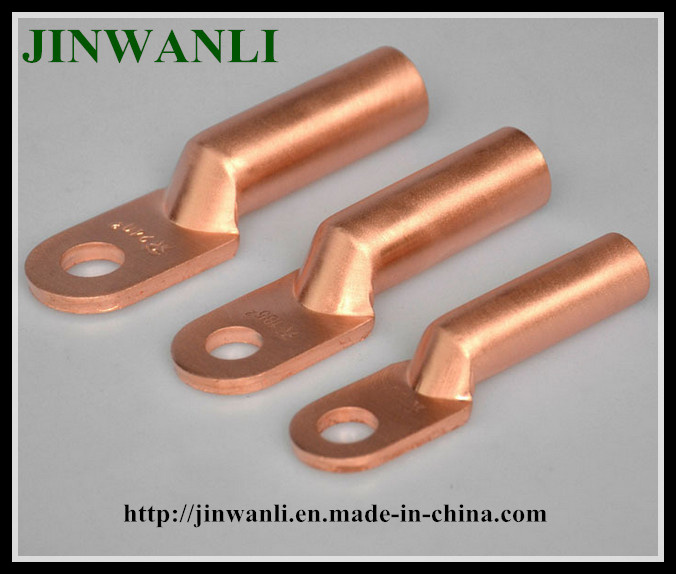

DT copper lug cable lug copper connecting terminals sealed cable lugs

Specifications
1.ISO certificate
2.pure copper wire99.9%
3.flexible and conductive

NAME	DT copper lug cable lug copper connecting terminals sealed cable lugs
MATERIAL	red copper
SURFACE TREATMENT	Bare copper or tinned plated
SIZE	As customer's request
COLOR	Red or white
DRAWING	customized design is acceptable.
ADVANTAGES	Professional staff and designer with many years experience
FEATURE	1) Pure copper wire99.9%
	2)Annealing to make the wire more flexible
	3)Class A process

Item No	Dimension(mm)
Item No	Φ	D	d	L	L1	B
DT-10	8.5	9	5.3	62	28	16
DT-16	8.5	10	6.5	68	30	16
DT-25	8.5	11	7	70	33	18
DT-35	10.5	12	8.5	80	36	20.5
DT-50	10.5	14	9.5	85	38	23
DT-70	12.5	16	11.5	95	43	26
DT-95	12.5	18	13.5	104	46	28
DT-120	14.5	20	15	112	49	30
DT-150	14.5	22	16.5	120	51	34
DT-185	16.5	25	18.5	125	55	37
DT-240	16.5	27	21	136	60	40
DT-300	18	31	23.5	155	66	50
DT-400	21	34	26.5	170	75	50
DT-500	21	38	29	190	75	60
DT-630	21	45	35	220	85	80
DT-800	21	50	38	260	85	100

Our company is a key electrical accessories manufacturer of terminal blocks and other cable accessories in China.

Our company is located in Yueqing, Wenzhou City, Zhejiang Province. It is a manufacturing and export company, specialized in producing components for kinds of lights, automobile and so on. They have gone through many authentications such as CQC, CE, RoHS. The main products are terminal blocks and wires, cable ties, cable clips, cable glands and copper inserts. They have entered the mafket of most parts in the world including Europe, the Middle East and Latin America. They are of good quality and sell well in many countries.

Our company manufactures products strictly according to IEC and national GB standards, and we have established a complete and improved quality management system according with ISO9002 standard system, We guarantee the products with competitive price, high quality and timely delivery. Besides, we can supply a complete set of after-sales service to our customers and help term expand their local market share.

We welcome you to contact us for more information and we are looking forward to chances of creating a long and mutually beneficial partnership with you. We do hope to cooperate very very well and develop rapidly with our joint efforts for mutual benefits.
