Dual CWDM 8 Channels Mux\Demux Module in 1u Rack

$Dual CWDM 8 Channels Mux\Demux Module in 1u Rack$

Price:	US $ 320-400/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	CWDM-20-8-1471-0-00-LC/PC-M/D-Dual-11
Usage:	CWDM Optical Systems
Type:	Wireless
Support Network:	Ethernet
Information Content:	Data
Certification:	RoHS
Condition:	New

Product Description

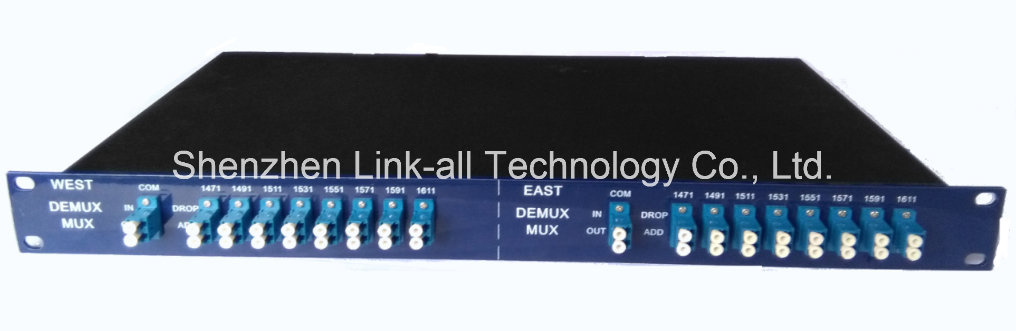

CWDM 8 Channel 2 Mux + 2 Demux in 1U rack

Description

Product function: Mmultiplexer and Demultiplexer CWDM 8 Channel

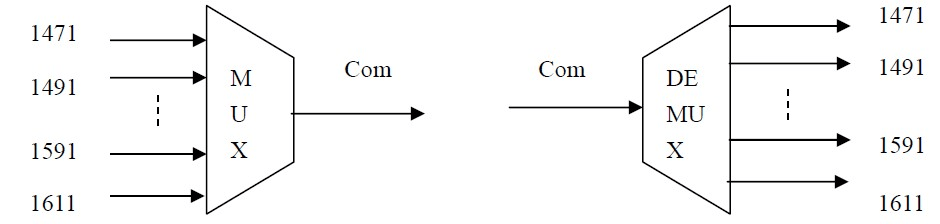

Product application drawing

Product Features

Cost-effective CWDM technology

Terminates eight wavelengths

Reliable passive thin film filter WDM optical technology

Low optical insertion loss

Low-profile modular design

Optic and/or Electric Specification

Item	Parameters	Unit	Value	Note
1	Channel Number	NA	8
2	Port Number	NA	36
3	Channel Spacing	nm	20
4	Center Wavelength(Channel)	nm	1471~1611
5	Pass Band	nm	l cw±6.5
6	Ripple over Pass Band	dB	≤0.5
7	Channel Insertion Loss	dB	≤3.2	1
8	Adjacent Channel Isolation	dB	≥30
8	Non-Adjacent Channel Isolation	dB	≥45
9	Insertion Loss Thermal Stability	dB/ºC	≤0.007
10	Wavelength Thermal Stability	nm/ºC	≤0.002
11	Return loss	dB	≥45
12	Directivity	dB	≥50
13	PDL	dB	≤0.25
14	PMD	PS	≤0.20
15	Power Handling	mW	300

Note1: IL include connector.

Pigtail and Connector

Item	Parameters	Specification	Note
1	Fiber Type (All ports)	SMF28e
2	Connector Type (All ports)	LC/PC with Duplex Adaptor

Order Information

CWDM	Coarse Wavelength Division Multiplexer
20	Channel Spacing: 20nm
8	8 channels
1471	Transmission starts at 1471nm
0	NA
00	NA
LC/PC	Connector Type: LC/PC
M/D	Mux & Demux in one package
Dual	Dual Mux & Demux Modules In one Rack
11	Rack Package Type (19'' rack mount chassis)
