Dynamic Brushless Servo Motor

Name: Dynamic Brushless Servo Motor
Brand: all-electronics-online.com
SKU: 791174695
Availability: InStock
Rating: 4.9 (138 reviews)

Price:	US $ 120-9500/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	SM190/SM200/SM260
Rated Power:	0.4kw-100kw
Rated Rotate Speed:	350rpm, 1700rpm, 2000rpm, 2500rpm, 3000rpm
Rated Torque:	1.27n.M-2500n.M
Number Of Stator:	Three-Phase
Speed:	Variable Speed 0-3000rpm
Function:	Torque/Speed/Position Control
Casing Protection:	IP54
Number Of Poles:	8pole&10pole&20pole
Starting Mode:	Soft Start
Certification:	Ce, Eco
Brand:	Synmot

Product Description

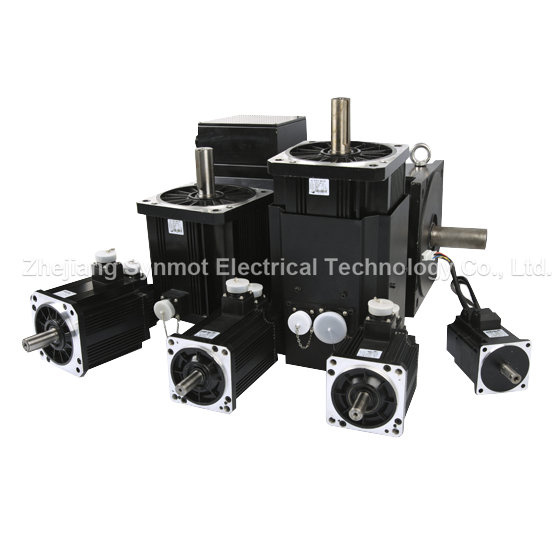

Synmot servo motor is permanent magnet AC motor, the main features including: ultra energy-saving ,high response and accuracy, low noise and low temperature rise , the rotor is made of high-performance rare-earth permanent magnet material. works reliably and to maintain less, with low rotary inertia so that it is easy to improve the rapidity of system, small volum, high speed and high torque, Using the high-resolution encoder(17-bit, 33-bit) to improve the position control accuracy, it controls the current according to d-p principal axis transformation, which increases the torque control accuracy from ±5% to ± 2% , Synmot has widely range of products which can satisfy various industires and products have been widly used in injection molding machine, textile machine, CNC machinery

Synmot is dedicated to research and application of energy saving technology in machinery, is a professional manufacture of servo motors, drives and servo system. The rated power of SM series drive is 0.4kw-100kw, which can satisfy the requirment of precise motion control in different industries, SM series energy -saving systems have been widely uesed in 50-3000ton injection molding machine, die casting machine, hydraulic machine, textile, elevator, lifting, CNC machine tool, printing and packing, metallurgy and mines etc

Synmot has national electrical professor as the chief engineer, the rechnical tea, is composed of pH, D masters, senior engineers with strong ability of innovation and engineering. It has more then 30 design patents and has established cooperation with Zhejiang University in production, design and research. Synmot has laboratories for motors, motor drives and energy saving technologies, and can develop the specially customized servo system of automatic equipment, CNC mahchines ans inspection devices.

Synmot uses computerized management systems such as ERP, OA, PLM etc, the enterprise culture is being positive and cooperative and pursuing excellence takes reaeach as guide, pays great attention to the product quality, so as to provide more environment-friendly, more precise and more stable products to provide the professional solutions in electrcal servo srivesystem
