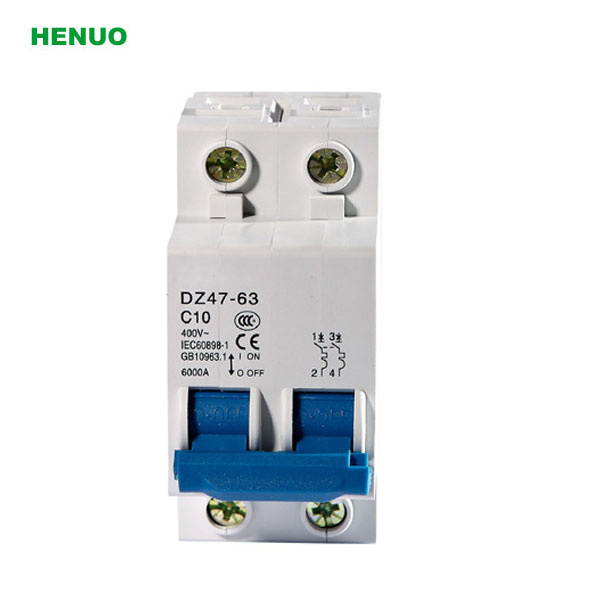

Dz47-63 2p MCB with Semko Certificate
| Price: |
US $ 0.8-0.88/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
200/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
Dz47-63 2p |
| Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Poles: |
1p,2p,3p,4p,1p+N,3p+N |
| Item: |
Dz47-63 Mini Circuit Breaker |
| Rated Insulation Voltage Uimp: |
500V |
| Rated Voltage Un(V): |
230/400V AC |
| Rated Current(a): |
1,2,3,4,6,10,16,20,25 |
| Tripping Characteristic: |
B/C/D |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Operation: |
Electric Type |
| Speed: |
Normal Type Circuit Breaker |
| Arc-extinguishing Medium: |
Air |
| Installation: |
Fixed |
| Structure: |
MCB |
| Poles Number: |
3 |
| Certification: |
Semko |
Product Description
DZ47-63 series high-breaking MCB is used in lighting distribution system for protection overload and short-circuit in the system. It is mainly used in AC 50Hz/60Hz, single-pole 240V or two, three, four pole 415V for overload and short-circuit protection as well as for infrequent on-and off switching electric equipment and lighting circuit in normal case.
> Annex: Alarm, auxiliary, shunt+ auxiliary, under-voltage, overvoltage
> Function: Overload protection, short circuit protection, leakage protection.
> Usage: Lighting distribution, motor protection.
> Poles: 1, 2, 3, 4
> Breaking capacity: 4500A, 6000A
> Rated current: 1, 2, 4, 6, 10, 16, 20, 25, 32, 40, 50, 63A
> Standard: IEC60898, GB10963, GB16917 IEC/EN60947-2+VC8036
Certificate: CE, CB, SEMKO
CE CB SEMKO MCB dz47-63 1p mini circuit breaker |
Function |
| 1. Protection against short circuit current and overload current |
| 2. Isolation |
| 3. Control |
| Connection Capacity |
Type of terminal :Lug type and Pin type
16mm2 flexible or 25 mm2 rigid up to 25A ratings
25mm2 flexible or 35mm 2rigid for 32A to 63A ratings |
Tripping Curve |
*Curve B: (3~5In) protect and control circuit against overload and short circuit ; protect people and length cables in TN and IT systems
*Curve C:(5~10In) protect and control circuit against overlaoad and short circuit ; protect people resistive and inductive loads with low inrush current.
*Curve D:(10~20In) protect and control circuit against overload and short circuit ; protect circuits which supply loads with high inrush current when the circuit closing. |
Technical Date |
| 1. Standard: IEC60898 |
| 2. Pole No.: 1P,2P,3P,4P,1P+N,3P+N |
| 3. Rated Current In(A): 1,2,3,4,6,10,16,20,25,32,40,50,63 |
4. Rated voltage Un(V): 230/400V AC |
5. Tripping characteristic: B/C/D |
6. Breaking capacity: 6kA |
7. Protection grade: IP20 |
8. Ambient temperature: -5°C+4°C |
9. Connection:Column type |
10. Installation: fastener installation on 35mm DIN rail |
Ordering Note (Follow information need be marked when order) |
*Product name and model |
*Frame level |
| *Poles |
| *Curve characteristic,rated current |
*Quantity |
Yueqing Heng Nuo Imp. & Exp. Co., Ltd. is the export department for TENGEN GROUP Co., Ltd, it is one leading manufacturer and exporter in the fields of electrical apparatus, wiring accessories, hardware, fire alarm system, tools and so on, our company located in Liushi town of Wenzhou city where is the largest production centre in China for electrical products.
From 1983 to now, our company has cooperated with more than 80 factories, and produces over 20 kinds, thousands of models of high quality electric products yearly. Mainly including:
1. Electrical apparatus: Circuit breaker, AC contactor, Relay, fuse, timer, counter, distribution box, meter socket, current transformer, meter, pushbutton switch, LED pilot lamp, limit switch, pedal switch, float switch, industrial plug & socket, Stabilizer and so on.
2. Wiring accessories: Cable tie, cable clip, cable puller, cable marker, cable lugs, cable glands, terminal blocks, wiring ducts, insulated terminals, MCB insulated busbar, dinrail and so on.
3. Hardware: Flexible conduit & connector, EMT fittings, Metal switch boxes and so on.
4. Tools: Hand crimping tools, cable cutter, hydraulic crimping tool, tester, screwdriver and so on
5. Fire alarm and warning system: Fire alarm bell, electric bell, smoke detector, motor siren, buzzer, warning light and so on
Internationalization standard quality guarantee system:
The product quality of Tengen Group has been strictly controlled in each working procedure,
Many kinds of internationalization standard quality guaranteed system can be highly effective
Under company's strict monitoring. Fellowtrader commended, customer's approval can sufficiently
Make sure of our product quality.
"Tengen" was evaluated as " Chinese famous trademark", Tengen Group has obtained American
FMRC Corporation ISO9001 quality system authentication, ISO14001 environment management
System authentication, CCC authentication, European Union CE safe Authentication, American UL
Authentication and Dutch KEMA authentication and so on, at the same time, it has had the first
Side laboratory -- low voltage electric appliance test center which is the first connected with
International in China.
We promise to offer you superior products, favorable price, and timely delivery. If you are interested in cooperating with us, please feel free to contact with us in your earliest convenience time.
