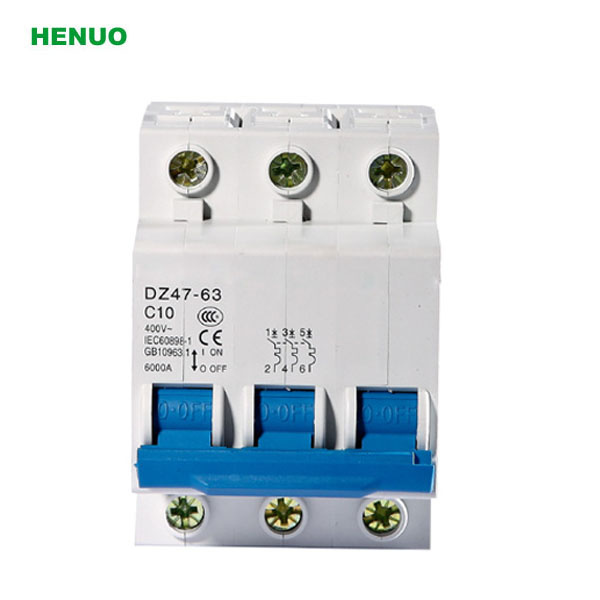

Dz47-63 New Style 10ka Circuit Beaker
| Price: |
US $ 0.8-0.88/Piece |
| Trade Terms: |
FOB |
| Min Order: |
200/Piece |
| Pay Type: |
T/T |
| Prod Model: |
DZ47-63 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model Number: |
Tgb1-63 |
| Electrical Life: |
8000 Times |
| Tripping Curve: |
C,D |
| Place Of Origin: |
Zhejiang, China |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Operation: |
Manual Type |
| Speed: |
Normal Type Circuit Breaker |
| Arc-extinguishing Medium: |
Air |
| Installation: |
Fixed |
| Structure: |
MCB |
| Poles Number: |
3 |
| Certification: |
CCC |
Product Description
Specifications
circuit beakers c60n 1p 2p 3p 4p
1.Standard:IEC/EN60898-1
2.Mounting:On Din Rail Fn60715(35mm)
1. Company Profile
Our company has perfect quality system which has passed the ISO9001 quality system., carrying out currently national standard and international Electro Technical Commission 'IEC521' standards strictly. We trust that best quality and hich-tech will bring us to win-win.
2. Specification
professional manufactures circuit beakers c60n 1p 2p 3p 4p
Electrical features |
|
Rated current In |
A |
1, 2, 6, 10, 16, 20, 25, 32, 40, 50, 63 |
| | | |
Poles |
P |
1,2,3,4 |
| | | |
Rated voltage Ue |
V |
230/400 |
| | | |
Insulation voltage Ui |
V |
500 |
| | | |
Rated frequency |
Hz |
50/60 |
| | | |
Rated breaking capacity |
A |
3000, 4500 |
|
Rated impulse withstand voltage (1.2/50) Uimp |
V |
4000 |
| | | |
Dielectric test voltage at ind. Freq. for 1 min |
Kv |
2 |
|
Pollution degree | |
2 |
|
Thermo-magnetic release characteristic | |
B, C, D |
Mechanical features |
|
Electrical life |
t |
4000 |
Mechanical life |
t |
10000 |
|
Protection degree | |
IP20 |
|
Reference temperature for setting of thermal element |
°C |
30 |
|
Ambient temperature (with daily average≤35°C) |
°C |
-5~+40 (special application please refer to temperature compensation correction) |
|
Storage temperature |
°C |
-25~+70 |
|
Yueqing Heng Nuo Imp. & Exp. Co., Ltd. is the export department for TENGEN GROUP Co., Ltd, it is one leading manufacturer and exporter in the fields of electrical apparatus, wiring accessories, hardware, fire alarm system, tools and so on, our company located in Liushi town of Wenzhou city where is the largest production centre in China for electrical products.
From 1983 to now, our company has cooperated with more than 80 factories, and produces over 20 kinds, thousands of models of high quality electric products yearly. Mainly including:
1. Electrical apparatus: Circuit breaker, AC contactor, Relay, fuse, timer, counter, distribution box, meter socket, current transformer, meter, pushbutton switch, LED pilot lamp, limit switch, pedal switch, float switch, industrial plug & socket, Stabilizer and so on.
2. Wiring accessories: Cable tie, cable clip, cable puller, cable marker, cable lugs, cable glands, terminal blocks, wiring ducts, insulated terminals, MCB insulated busbar, dinrail and so on.
3. Hardware: Flexible conduit & connector, EMT fittings, Metal switch boxes and so on.
4. Tools: Hand crimping tools, cable cutter, hydraulic crimping tool, tester, screwdriver and so on
5. Fire alarm and warning system: Fire alarm bell, electric bell, smoke detector, motor siren, buzzer, warning light and so on
Internationalization standard quality guarantee system:
The product quality of Tengen Group has been strictly controlled in each working procedure,
Many kinds of internationalization standard quality guaranteed system can be highly effective
Under company's strict monitoring. Fellowtrader commended, customer's approval can sufficiently
Make sure of our product quality.
"Tengen" was evaluated as " Chinese famous trademark", Tengen Group has obtained American
FMRC Corporation ISO9001 quality system authentication, ISO14001 environment management
System authentication, CCC authentication, European Union CE safe Authentication, American UL
Authentication and Dutch KEMA authentication and so on, at the same time, it has had the first
Side laboratory -- low voltage electric appliance test center which is the first connected with
International in China.
We promise to offer you superior products, favorable price, and timely delivery. If you are interested in cooperating with us, please feel free to contact with us in your earliest convenience time.
