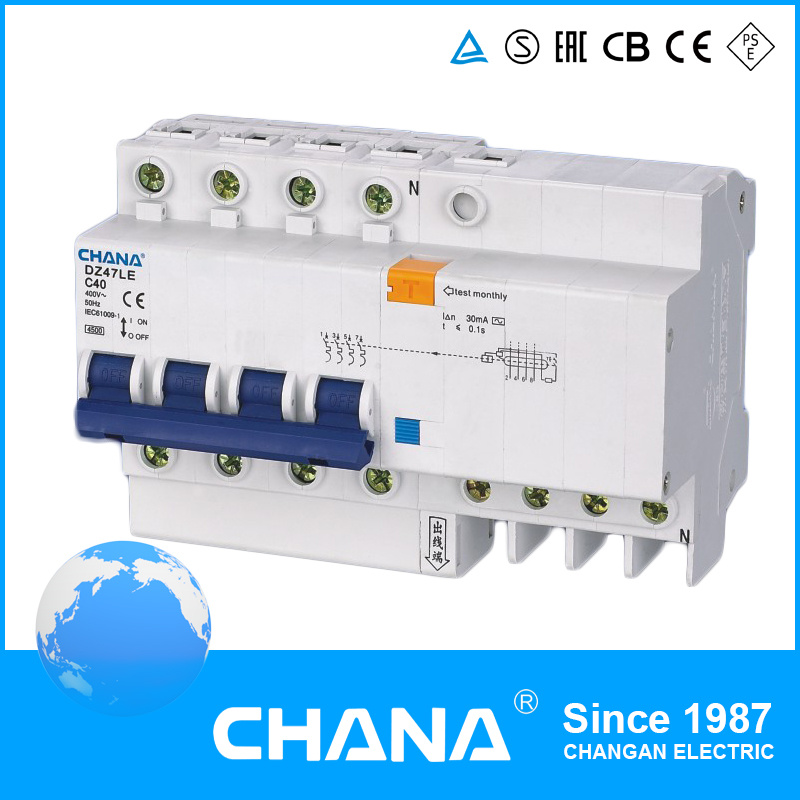

Dz47le-63 4p Electronic Type RCBO (RCCB with Overcurrent Protection)
| Price: |
US $ 4.73/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
DZ47LE-63 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Current In: |
6, 10, 16, 20, 25, 32, 40, 50, 63A |
| Rated Sensitivity In: |
0.03, 0.1, 0.3A |
| Company Credit Rate: |
AAA |
| Company Size: |
Over 2000 Stuff |
| Export Market: |
World |
| Quality: |
AAA |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Operation: |
Manual Type |
| Speed: |
High-Speed Circuit Breaker |
| Arc-extinguishing Medium: |
Air |
| Certification: |
CCC |
| Installation: |
DIN Rail |
| Structure: |
RCBO |
| Poles Number: |
2p(1p+N),4p (3p+N) |
Product Description
Description For DZ47LE-63 Circuit BreakerFree samples can be provided!!!Electrical Features | Type (wave form of the earth leakage sensed) | AC,A |
| Thermo-magnetic release characteristic | B,C |
| Rated current In MCB+add-on RCD block | 6, 10, 16, 20, 25, 32, 40, 50, 63A |
| Poles | 2P(1P+N),4P (3P+N) |
| Rated voltage Ue | 240/415V |
| Rated sensitivity In MCB+add-on RCD block | 6, 10, 16, 20, 25, 32, 40, 50, 63A |
| Rated residual making and breaking capacity Im | 500A(In40A) 630(In40A) |
| Rated short-circuit capacity lcn | 4,500A |
| Break time under In | 0.1s |
| Rated frequency | 50/60H |
| Rated impulse withstand voltage (1.2/50)Uimp | 4,000V |
| Dielectric TEST voltage at ind. Freq. for 1min | 2kV |
| Insulation voltage Ui | 500V |
| Pollution degree | 2 |
Mechanical Features | Electrical life | 2,000 |
| Mechanical life | 4,000 |
| Protection degree | IP20 |
| Reference temperature for setting of thermal element | 30º C |
| Ambient temperature (with daily average≤ 35º C) | -5º C...+40º C |
| Storage temperation | -25º C...+70º C |
Installation | Terminal size top/bottom for cable | 25mm2 |
| Terminal size top/bottom for busbar | 25mm2 |
| Tightening torque | 2.0 N*m |
| Mounting | On DIN rail EN 60715 (35mm) by means of fast clip device |
| Connection | From top and bottom (for combined type);From top (MCB+add-on RCD block) |

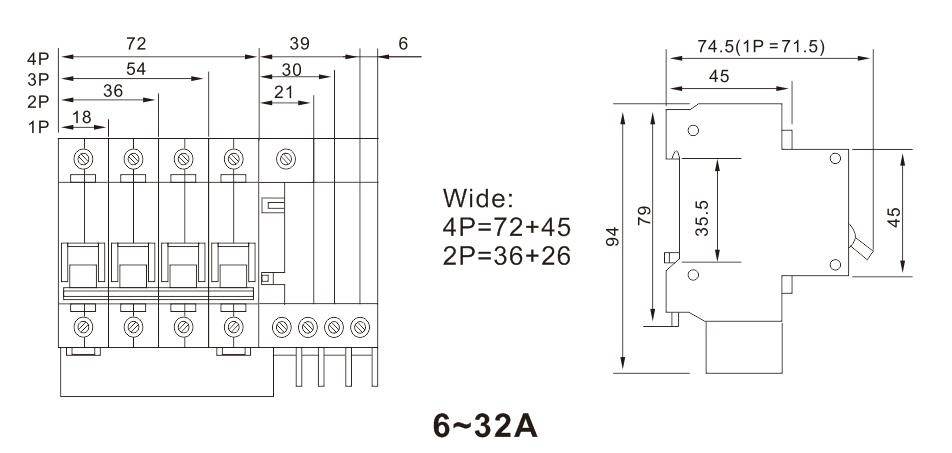

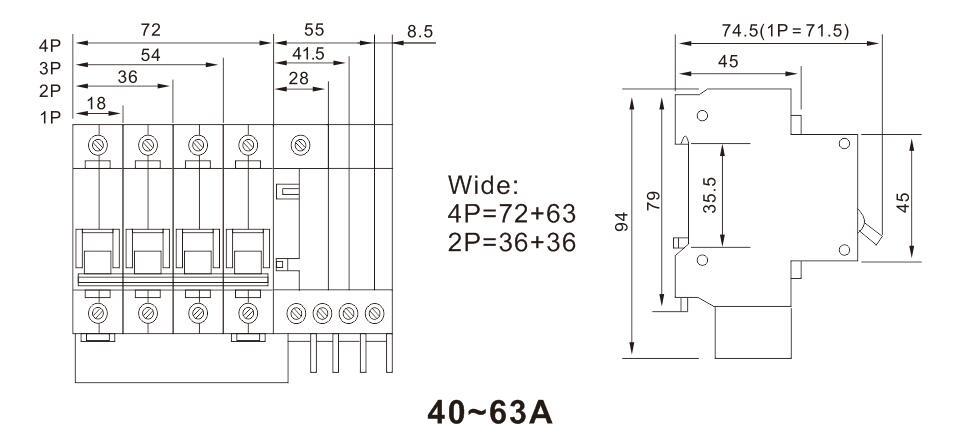

Dimensions(mm)
About US: Changan Group Co.,Ltd was established at years of 1987,which is leading of industrial electric appliances,integrating the research&development,manufacture,trade,information service functions together. At present,group have passed ISO9001,ISO14001,OHASA18001 and acquired 3C certification for all products,all of our export product are strictly production according to ISO9001 and IEC standard,some product had got CE,CB,SMEKO,KEMA certification.The company has owned 10 son companies,50 sales branch,3000 employees ,areas of 0.4 million square meters,registered capital reached 26 million,yearly out put value reached 346 million.The company has the honor to be titled as "China star enterprise","China top 500 private enterprise","China top 500 in machinery industry","China top 10 of LV electric appliance"Shipping: 1,Shipping can delivery by sea,air,or express according to customer requirement
Payment:
1. Small order under 3000USD T/T100% in advance
2. 30% deposit and 70% before shipping or after received copy of B/L
3. L/C also acceptable
Warranty:
1.We provide 1.5 year warranty.
2. Compensation will be paid if product had badly quality problem.
Payment:
1. We usually use T/T (30% deposit before production and 70% to be paid against the copy of B/L).
2.If the Amount is small, you can pay to us by western union/Paypal/Money Gram.
3. L/C also acceptableWarranty:1. We provide 18 months warranty.
2. If the product is defective, please notify us within 10 days of delivery.
3. All products must be returned on their original condition, in order to qualify for a refund or exchange of goodsOur ServicesA. Punctual delivery time:
We carry out your order into our well-organized production schedule, ensure your punctual delivery time.
Production report before your order packed.
Shipping notice and photos sent to you as soon as your order is shipped.
B. After-service:
We Pay high Attention To Your Feed back after receive the goods.
We Provide 18 months warranty after goods arrive.
We Positively Revert Your Complain Within 48hours.
C. Professional Sales:
We value every Inquiry Sent To Us, Ensure Quick Competitive Offer.
We Cooperate With Customer To Bid Tenders. Provide all Necessary Documents.
We Are A Sales Team, With All Technical Support From Engineer Team.FAQQ 1. What's the payment term?
A. We accept tt,30% deposit and 70% balance against the copy of b/l.
Q 2. How's the delivery time?
A. Usually it will take about 25 days for production.
Q 3. Tell me the standard of package?
A. Normally are cartons, but also we can pack it according to your requirement.
Q 4. Could you offer form a? or c/o?
A. It's totally not a? problem. We can prepare relative documents to foreign affairs office or other office??to apply for this certificate.
Q 5. Would you accept to use our logo?
A. If you have good quantity, it absolute no problem to do oem.
Established in 1987, CHANGAN GROUP Co., Ltd. Has been acknowledged as one of the most respected nation-wide manufacturers and exporters of low-voltage electrical apparatus in P. R. China.
Comprising more than 62 factories with over 2500 employees and the whole corporation occupies 82000m2 ground during past 27 years.
We manufacture and export varieties of low voltage electrical appliance including all kinds of CIRCUIT BREAKER, CONTACTOR, RELAY, SWITCH, SOLAR INVERTER etc.
All of our production procedures strictly follow ISO9001, ISO14001 and OHSAS18001, most of our products are certified such as SEMKO, TUV, CB and CE which can prove our guarantee quality and our products also have been chosen as "Chinese FAMOUS BRAND PRODUCT".
We not only make efforts in developing our own products with "CHANA"brand but also provide OEM services. Hope to establish good business relationships with your esteemed company in near future.
