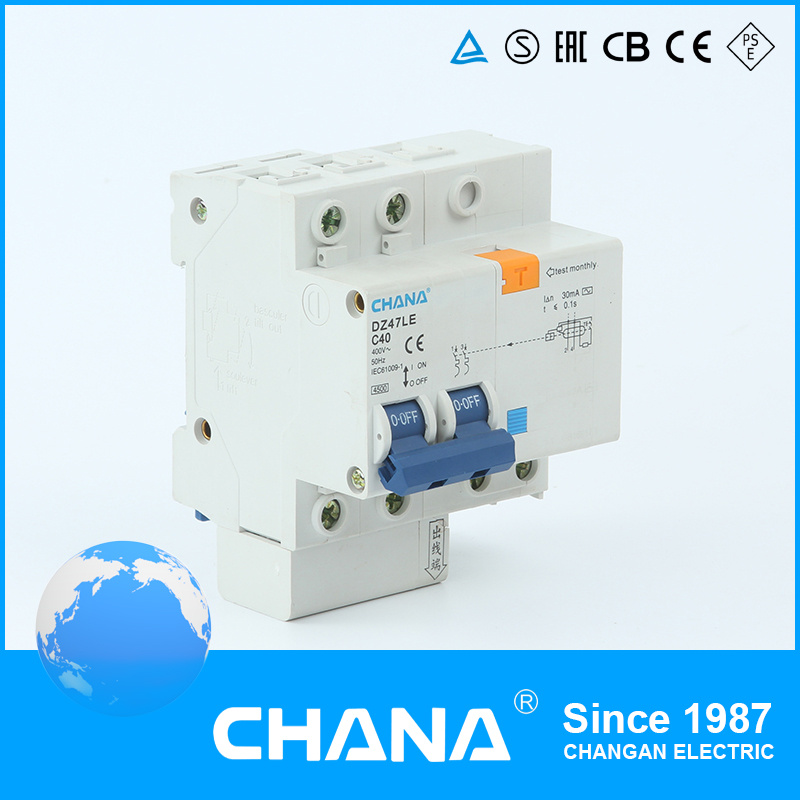

Dz47le-63 Electronic Type RCBO 2p/4p with Indicator
| Price: |
US $ 2.66-2.94/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,Western Union,Money Gram |
| Prod Model: |
DZ47LE-63 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Manufacturer: |
Original Factory |
| Poles: |
2p/4p |
| Rated Current In: |
6, 10, 16, 20, 25, 32, 40, 50, 63A |
| Company Size: |
Over 2000 Stuff |
| Electrical Life: |
2,000 |
| Mechanical Life: |
4,000 |
| Export Market: |
World |
| Quality: |
AAA |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Operation: |
Manual Type |
| Speed: |
High-Speed Circuit Breaker |
| Arc-extinguishing Medium: |
Air |
| Structure: |
MCB |
| Certification: |
CCC |
| Installation: |
DIN Rail |
| Poles Number: |
2p(1p+N),4p (3p+N) |
| Function: |
RCCB with Overcurrent Protection |
Product Description
Description For DZ47LE-63Technical DateElectrical Features| Type (wave form of the earth leakage sensed) | AC, A |
| Thermo-magnetic release characteristic | B, C |
| Rated current In MCB+add-on RCD block | 6, 10, 16, 20, 25, 32, 40, 50, 63A |
| Poles | 2P(1P+N), 4P (3P+N) |
| Rated voltage Ue | 240/415V |
| Rated sensitivity In MCB+add-on RCD block: | 0.03, 0.1, 0.3A |
| Rated residual making and breaking capacity Im | 500A(In40A) 630(In40A) |
| Rated short-circuit capacity lcn | 4, 500A |
| Break time under In | 0.1s |
| Rated frequency | 50/60Hz |
| Rated impulse withstand voltage (1.2/50)Uimp | 4, 000V |
| Dielectric TEST voltage at ind. Freq. For 1min | 2kV |
| Insulation voltage Ui | 500V |
| Pollution degree | 2 |
Mechanical Features| Electrical life | 2, 000 |
| Mechanical life | 4, 000 |
| Protection degree | IP20 |
| Ambient temperature (with daily average≤ 35º C) | -5º C...+40º C |
| Storage temperation | -25º C...+70º C |
InstallationTerminal size top/bottom for cable: 25mm2
Terminal size top/bottom for busbar: 25mm2
Tightening torque 2.0 N*m
Mounting: On DIN rail EN 60715 (35mm) by means of fast clip device
Connection: From top and bottom (for combined type)
From top (MCB+add-on RCD block)Company ProfileChangan Group Co., Ltd, Established in 1987, comprising more than 62 factories with over 2500 employees and the whole corporation occupies 82000m2 ground during past 30years.
We manufacture and export varieties of low voltage electrical appliance including all kinds of Circuit Breaker,
Contactor, Relay, Switch, Solar Inverter etc..
1. We already get the certificate of ISO9001, CE, SGS.CB for most of our products.
2. We have 30 years of manufacture and 20 years exporting experience.
3. We have completely sales service system, ensure every detail is going smooth.
4. We have new designed products each year by our R&D Department.
5. Perfect testing system ensure each product is qualified.
6. We have a good reputation in Russia, Turkey, Europe, South America, Mid-east and Africa Market. Shipping:1. Normally by SEA From NINGBO TO ...
2. Products are shipped via UPS / DHL / FedEx / TNT and so on expresses (door to door) If the amount is Small.
3. We Provide Drop shipping Service.
4. In order to ensure you receive your order tax free upon import, we can declare lower value according to your demand.
5. Shipping via EMS. UPS. FedEx and TNT express usually takes 3~7days dependent on the destination country.Payment:1. We usually use T/T (30% deposit before production and 70% to be paid against the copy of B/L).
2.If the Amount is small, you can pay to us by western union/Paypal/Money Gram.
3. L/C also acceptableWarranty:1. We provide 18 months warranty.
2. If the product is defective, please notify us within 10 days of delivery.
3. All products must be returned on their original condition, in order to qualify for a refund or exchange of goods Our ServicesA. Punctual delivery time:
We carry out your order into our well-organized production schedule, ensure your punctual delivery time.
Production report before your order packed.
Shipping notice and photos sent to you as soon as your order is shipped.
B. After-service:
We Pay high Attention To Your Feed back after receive the goods.
We Provide 18 months warranty after goods arrive.
We Positively Revert Your Complain Within 48hours.
C. Professional Sales:
We value every Inquiry Sent To Us, Ensure Quick Competitive Offer.
We Cooperate With Customer To Bid Tenders. Provide all Necessary Documents.
We Are A Sales Team, With All Technical Support From Engineer Team.FAQQ 1. What's the payment term?
A. We accept tt,30% deposit and 70% balance against the copy of b/l.
Q 2. How's the delivery time?
A. Usually it will take about 25 days for production.
Q 3. Tell me the standard of package?
A. Normally are cartons, but also we can pack it according to your requirement.
Established in 1987, CHANGAN GROUP Co., Ltd. Has been acknowledged as one of the most respected nation-wide manufacturers and exporters of low-voltage electrical apparatus in P. R. China.
Comprising more than 62 factories with over 2500 employees and the whole corporation occupies 82000m2 ground during past 27 years.
We manufacture and export varieties of low voltage electrical appliance including all kinds of CIRCUIT BREAKER, CONTACTOR, RELAY, SWITCH, SOLAR INVERTER etc.
All of our production procedures strictly follow ISO9001, ISO14001 and OHSAS18001, most of our products are certified such as SEMKO, TUV, CB and CE which can prove our guarantee quality and our products also have been chosen as "Chinese FAMOUS BRAND PRODUCT".
We not only make efforts in developing our own products with "CHANA"brand but also provide OEM services. Hope to establish good business relationships with your esteemed company in near future.
