E-80, E-95, N-80, N-95, N95/2, N95/3, N95/4 Pin Type Porcelain Insulators

Name: E-80, E-95, N-80, N-95, N95/2, N95/3, N95/4 Pin Type Porcelain Insulators
Brand: all-electronics-online.com
SKU: 825621855
Availability: InStock
Rating: 4.4 (39 reviews)

Price:	Negotiable/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	Pin Type Insulators
Application:	High-voltage
Material:	Porcelain
Structure:	Pin Insulator
Color:	Brown
Brand:	Ziyong

Product Description

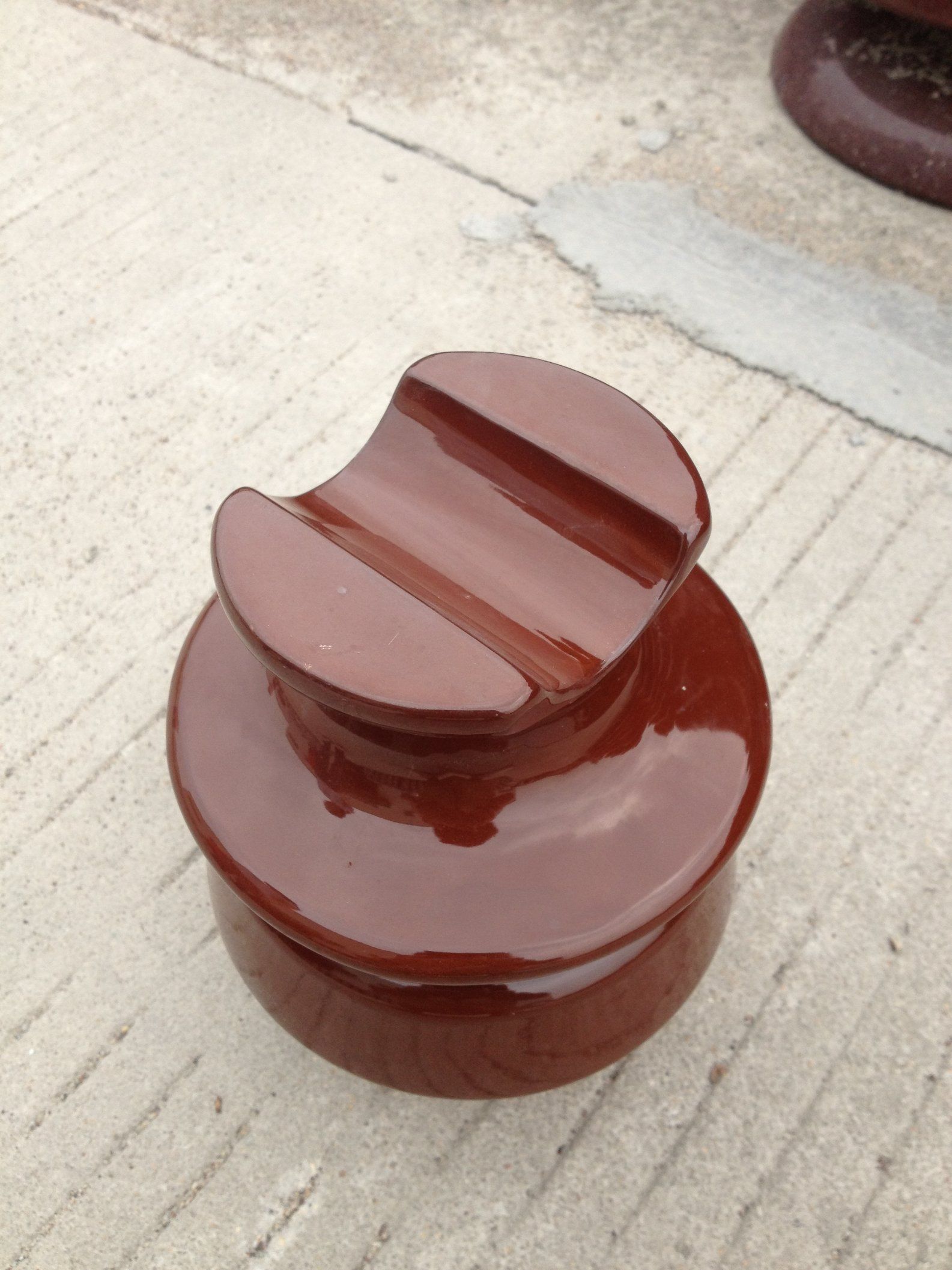

Pin insulators are designed to provide line support. The functions of these insulators is to support the conductor directly on the head or neck of the insulator (top and side grooves). Our pin insulators are designed and manufactured by many kinds of standards for insuring the insulators' electrical and mechanical performance, as well as all dimensional specifications and requirements.

Material:porcelain
Color: brown

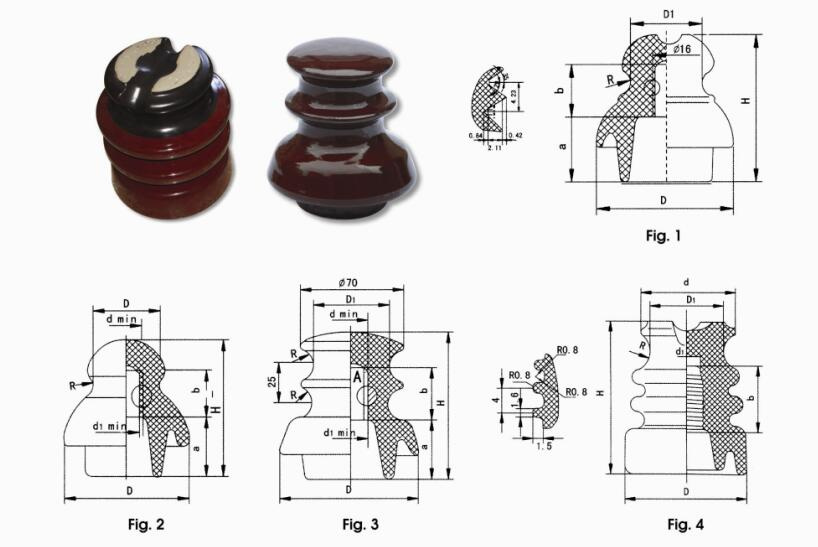

Drawing

Basic Data

Type		E-80	E-95	N-80	N-95	N95/2	N95/3	N95/4
Fig No		1	1	2	2	3	4	4
Main dimensions, mm	D	80	95	80	95	95	102	130
	H	85	97	87	97	100	120	152
	D1	42	50	42	50	50	60	80
	d min	16	16	19	22	22	80	100
	d1 min	/	/	21	24	24	25.4	25.4
	a	38	43	38	41	41
	b	38	32	30	35	35	51	51
	R	7.5	13	7.5	13	10	14	14
Leakage distance	mm	120	140	120	140	160	230	318
Minimum breaking load	kN	12.5	12.5	12.5	12.5	12.5	10	13.6
One minute withstand voltage wet	kV	10	10	10	10	10	34	50
Power Frequency Voltage	Dry, kV	-	-	-	-	-	70	80
Power Frequency Voltage	Wet, kV	-	-	-	-	-	45	55
Critical impulse flashover	Pos., kV	-	-	-	-	-	100	130
Critical impulse flashover	Neg., kV	-	-	-	-	-	120	150
Puncture Voltage	kV	-	-	-	-	-	95	115

Festures:
Excellent electrical performance
Unbreakable and light weight
Good heat resistance and cold resistance
Good chemical stability
High rigidity and toughness
Easiest handing and transportation
Water repelling surface
Long service life
Non-toxic, non-standing and recyclable

Service
Choose our products! You'll get
1) Good quality guarantee (2 years)
2) Factory direct prices
3) On time delivery
4) Free sample
5) Professional technology support

Strict quality controls have been taken to ensure that you'll get reliable products.
a. Material checks before production.
b. Random inspection during production.
c. Inspection before the shipment.

Our products fully comply with well recognized standards such as IEC, BS, ANSI.
