| Prod Model: |

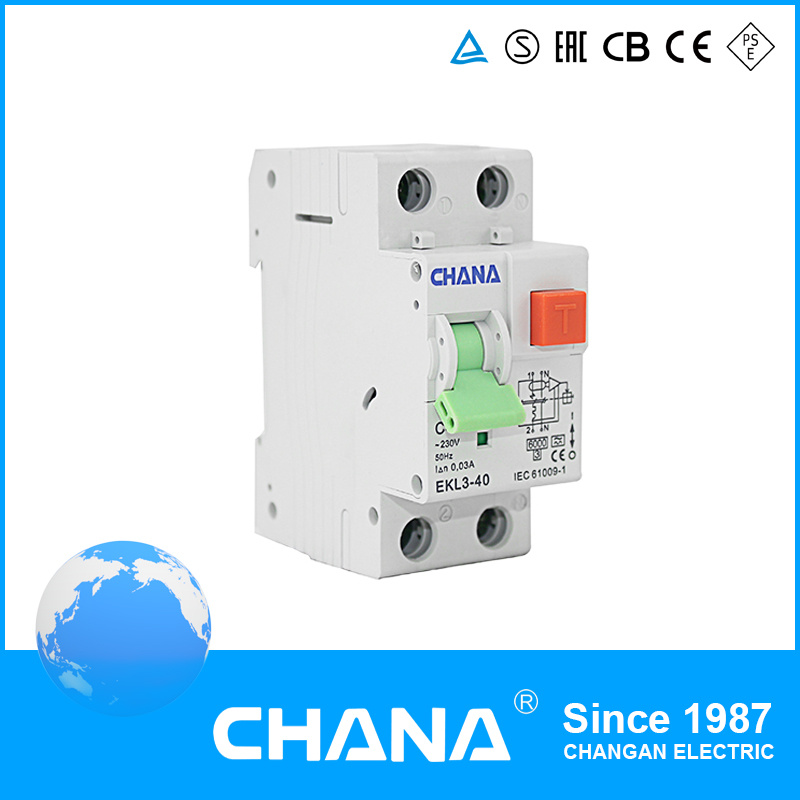

EKL3-40 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Current In: |
6, 10, 16, 20, 25, 32A |
| Rated Sensitivity In: |
0.03, 0.1, 0.3A |
| Company Credit Rate: |
AAA |
| Company Stuff: |
Over 2000 Stuff |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Operation: |
Manual Type |
| Speed: |
High-Speed Circuit Breaker |
| Arc-extinguishing Medium: |
Air |
| Certification: |
CCC |
| Installation: |
DIN Rail |
| Structure: |
RCBO |
| Poles Number: |
1p+N |
| Function: |
Avoid The Shock Hazard and Fire Caused by Earth L |
Product Description
Free samples can be provided!!!
Product Description
Electrical Features
Type (wave form of the earth leakage sensed): AC,A
Thermo-magnetic release characteristic:B, C
Rated current In: 6, 10, 16, 20, 25, 32,40A
Poles: 1P+N
Rated voltage Ue: 230/240V
Rated sensitivity In: 0.03, 0.1, 0.3A
Rated residual making and breaking capacity Im: 500A
Rated short-circuit capacity lcn: 6, 000A
Break time under In: ≤ 0.1s
Rated frequency: 50/60Hz
Rated impulse withstand voltage (1.2/50)Uimp: 4000V
Dielectric TEST voltage at ind. Freq. For 1min: 2kV
Insulation voltage Ui: 500V
Pollution degree: 2
Mechanical Features
Electrical life: 2, 000
Mechanical life: 2, 000
Contact position indicator: Yes
Protection degree: IP20
Ambient temperature (with daily average≤ 35º C): -5º C...+40º C
Storage temperation: -25º C...+70º C
Installation
Terminal connection type: Cable/U-type busbar/Pin-type busbar
Terminal size top/bottom for cable: 16mm2 18-5AWG
Terminal size top/bottom for busbar: 16mm2 18-5AWG
Tightening torque 2 N*m 18In-Ibs.
Mounting: On DIN rail EN 60715 (35mm) by means of fast clip device
Connection: From top
| Code | EKL3-40 |
| Electrical Features | Type | | AC,A |
| | Thermo-magnetic release characteristic | | B,C |
| | Rated current | A | 6,10,16,20,25,32,40 |
| | Poles | P | 1P+N |
| | Rated voltage | V | 230/240 |
| | Rated sensitivity I△n | A | 0.01,0.03, 0.1, 0.3 |
| | Insulation voltage | V | 300 |
| | Rated residual making and breaking capacity I△m | A | 500 |
| | Short-circuit current Inc=I△c | A | 4500/6000 |
| | Break time under I△n | S | ≤0.1 |
| | Rated frequency | Hz | 50/60 |
| | Pollution degree | | 2 |
| Mechanical Features | Electrical life | t | 2000 |
| | Mechanical life | t | 2000 |
| | Fault current indicator | | YES |
| | Protection degree | | IP20 |
| | Ambient temperature (with daily average≤35ºC) | ºC | -5ºC...+40ºC |
| | Storage temperature | | -25ºC...+70ºC |
| Installation | Terminal connection type | | Cable/Pin-type bus bar |
| | Terminal size top/bottom for cable | mm² | 16 |
| | | AWG | 18_5 |
| | Terminal size top/bottom for bus bar | mm² | 16 |
| | | AWG | 18_5 |
| | Tightening torque | N*m | 2 |
| | | In-Ibs. | 11 |
| | Mounting | | 35mm DIN rail |
| | Connection | | From top |
