Electric Heat-Treated Fiberglass Sleeving

Name: Electric Heat-Treated Fiberglass Sleeving
Brand: all-electronics-online.com
SKU: 643512765
Availability: InStock
Rating: 4.8 (118 reviews)

Price:	Negotiable/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	2000/Meter
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	LT-HTG
Markets:	North America,Eastern Europe,Southeast Asia,Africa,Western Europe
Raw Material:	Non-Alkali Fiberglass Yarns Braided
Operating Temperature:	-30~+360ceti Degree
Standard Color:	White, Black, Gray
Flammability:	UL Vw-1
Type:	Solid
Chemistry:	Inorganic Insulation
Material:	Fiberglass
Maximum Voltage:	<10KV
Application:	Insulation Sleeving
Thermal Rating:	450 Ceti Degree

Product Description

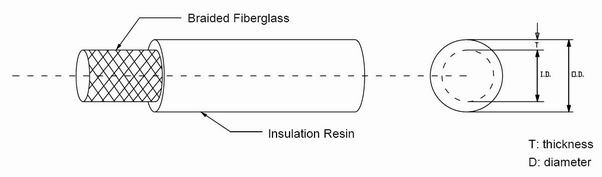

HTG Fiberglass Sleeving is a braided fibreglass sleeving treated at a high temperature to mould, dye color then impregnated with insulation resin. It is used in high temperature, low voltage applications and wherever repeated flexing or temperature extremes prohibit the use of other materials.
HTG Fiberglass Sleeving exhibits high tensile strength and high resistance to moisture, fungus and chemical attack.

Main Properties:
1. Operating temperature: -30~+360ºC
2. Thermal class: C
3. Short time peaks at +450ºC
4. Breakdown voltage: 800V.
5. Flammability: UL VW-1
6. Standard color: White, Black, Gray
(other colors are available at requesting)
7. Cutting tool: Scissors
8. Certificate: RoHS, MSDS, UL

Application:
1. Heat appliances lead
2. Lighting fixtures
3. Automotive wire harnesses
4. General electrical usage

Size	I.D. (mm)		Wall thickness (mm)	Roll Package		Cutting Package
Size	Min.	Max.	Wall thickness (mm)	Mts/Roll	Mts/Carton	Mts/PC	PCS/Bag	PCS/Carton
1.0	1.0	1.3	0.35 ±0.10	200	5,000	1.0	100	6,000
1.5	1.5	1.8	0.35 ±0.10	200	3,000	1.0	100	5,000
2.0	2.0	2.3	0.35 ±0.10	200	2,400	1.0	100	3,600
2.5	2.5	2.8	0.35 ±0.10	200	2,000	1.0	100	3,000
3.0	3.0	3.3	0.40 ±0.10	200	1,600	1.0	100	2,000
3.5	3.5	3.8	0.40 ±0.10	200	1,200	1.0	100	1,800
4.0	4.0	4.3	0.40 ±0.10	200	1,200	1.0	100	1,600
5.0	5.0	5.3	0. 50 ±0.10	100	1,000	1.0	100	1,200
6.0	6.0	6.3	0.50 ±0.10	100	800	1.0	100	900
7.0	7.0	7.3	0.50 ±0.10	100	600	1.0	50	600
8.0	8.0	8.3	0.50 ±0.10	50	600	1.0	50	600
9.0	9.0	9.5	0.60 ±0.15	50	600	1.0	50	450
10.0	10.0	10.5	0.60 ±0.15	50	600	1.0	40	360
12.0	12.0	12.5	0.60 ±0.15	50	600	1.0	30	270
14.0	14.0	14.5	0.70 ±0.15	50	600	1.0	20	200
16.0	16.0	16.5	0.70 ±0.15	50	600	1.0	20	200
