Fiberglass Sleeving Coated Acrylic (APF)

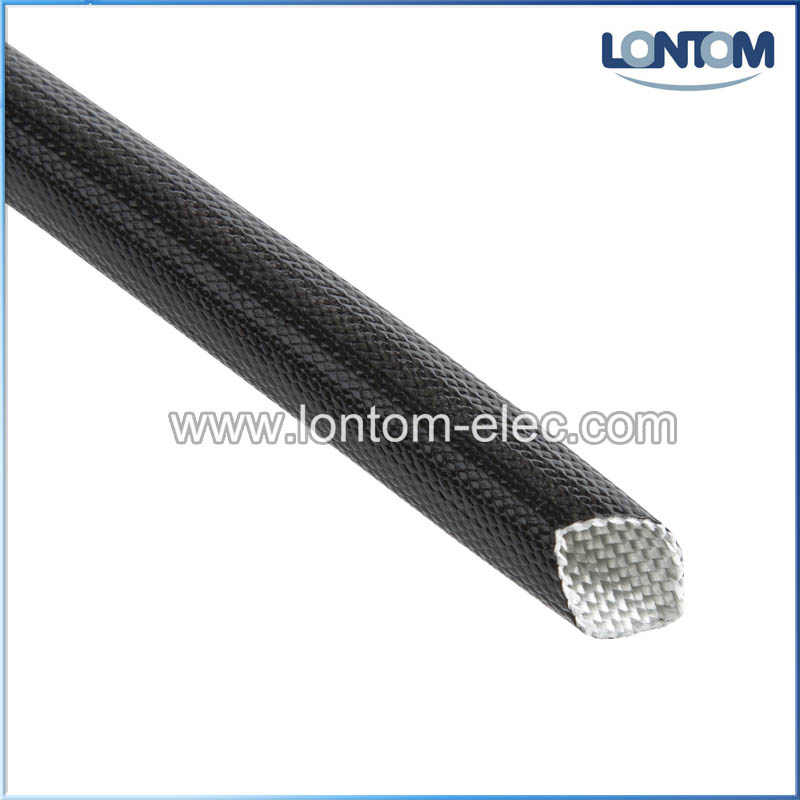

Name: Fiberglass Sleeving Coated Acrylic (APF)
Brand: all-electronics-online.com
SKU: 675648655
Availability: InStock
Rating: 4.8 (131 reviews)

Price:	Negotiable/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	2000/Meter
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	LT-APF
Markets:	South America,Eastern Europe,Southeast Asia,Western Europe
Operating Temperature:	-30° C~+155° C
Thermal Class:	F Class
Average Voltage:	1500V, 2500V, 4000V
Flammability:	UL Vw-1
Standard Color:	White, Black, Natural, Yellow
Certificate:	RoHS, MSDS, UL
Application:	Winding Wire Coating Insulation
Type:	Solid
Chemistry:	Inorganic Insulation
Material:	Fiberglass
Thermal Rating:	F 155
Maximum Voltage:	<10KV

Product Description

Acrylic Fiberglass Sleeving is an insulating sleeving produced with a thermal process. The fibreglass is coated with a acrylic resin; It is available in three standard voltage: 1500 Volt - 2500 Volt - 4000 Volt. This items belongs to the F class (155° C). The main characteristics are: Very good conformability, good heat and excellent abrasion resistance.

Main Properties:

1. Operating temperature: -30° C~+155° C

2. Thermal class: F

3. Short time peaks at +180° C

4. Average voltage: 1500V, 2500V, 4000V.

5. Flammability: UL VW-1

6. Standard color: White, Black, Natural, Yellow
(other colors are available at requesting)

7. Cutting tool: Scissors

8. Certificate: RoHS, MSDS, UL

Application:

1. Electrical appliances

2. Motor and transformers connections

3. Cable protection.

Size	I. D. (mm)		Wall thickness (mm)			Roll Package		Cutting Package
	Min.	Max.	APF1500V	APF2500V	APF4000V	Mts/Roll	Mts/Carton	Mts/PC	PCS/Bag	PCS/Carton
	Min.	Max.	APF1500V	APF2500V	APF4000V	Mts/Roll	Mts/Carton	Mts/PC	PCS/Bag	PCS/Carton
1.0	1.0	1.3	0.40± 0.12	0.41± 0.12	0.43± 0.12	200	5, 000	1.0	100	6, 000
1.5	1.5	1.8	0.40± 0.12	0.41± 0.12	0.43± 0.12	200	3, 000	1.0	100	5, 000
2.0	2.0	2.3	0.40± 0.12	0.41± 0.12	0.43± 0.12	200	2, 400	1.0	100	3, 600
2.5	2.5	2.8	0.40± 0.12	0.41± 0.12	0.43± 0.12	200	2, 000	1.0	100	3, 000
3.0	3.0	3.3	0.45± 0.12	0.48± 0.12	0.51± 0.15	200	1, 600	1.0	100	2, 000
3.5	3.5	3.8	0.45± 0.12	0.48± 0.12	0.51± 0.15	200	1, 200	1.0	100	1, 800
4.0	4.0	4.3	0.45± 0.12	0.48± 0.12	0.51± 0.15	200	1, 200	1.0	100	1, 600
5.0	5.0	5.3	0.50± 0.15	0.52± 0.15	0.55± 0.15	100	1, 000	1.0	100	1, 200
6.0	6.0	6.3	0.50± 0.15	0.52± 0.15	0.55± 0.15	100	800	1.0	100	900
7.0	7.0	7.3	0.50± 0.15	0.52± 0.15	0.55± 0.15	100	600	1.0	50	600
8.0	8.0	8.3	0.50± 0.15	0.52± 0.15	0.55± 0.15	50	600	1.0	50	600
9.0	9.0	9.3	0.60± 0.15	0.62± 0.15	0.66± 0.15	50	600	1.0	50	450
10.0	10.0	10.3	0.60± 0.15	0.62± 0.15	0.66± 0.15	50	600	1.0	40	360
12.0	12.0	12.3	0.60± 0.15	0.62± 0.15	0.66± 0.15	50	600	1.0	30	270
14.0	14.0	14.3	0.62± 0.15	0.64± 0.15	0.68± 0.15	50	600	1.0	20	200
16.0	16.0	16.3	0.62± 0.15	0.64± 0.15	0.68± 0.15	50	600	1.0	20	200

Lontom Products manufactures and distributes the largest selection of heat shrink tubing, Electric Insulation Sleeving, Tape and wires split loom products, and sold insulation material and wiring accessories throughout the world. Lontom has delivered excellence by consistently providing our customers with extraordinary levels of quality, competitive pricing, service and timely deliveries. We believe providing personalized and professional customer service is essential. Additionally, by manufacturing our own products and partnering with qualified suppliers, we guarantee that our products and services will meet or exceed each of our customer's specific needs.

Exceptional service combined with a large selection of products for varying applications and industries have been the key to Lontom's success over the past seven years. Our staff of professionals truly cares about their respective customer responsibilities; They take the time to listen and respond accordingly.
