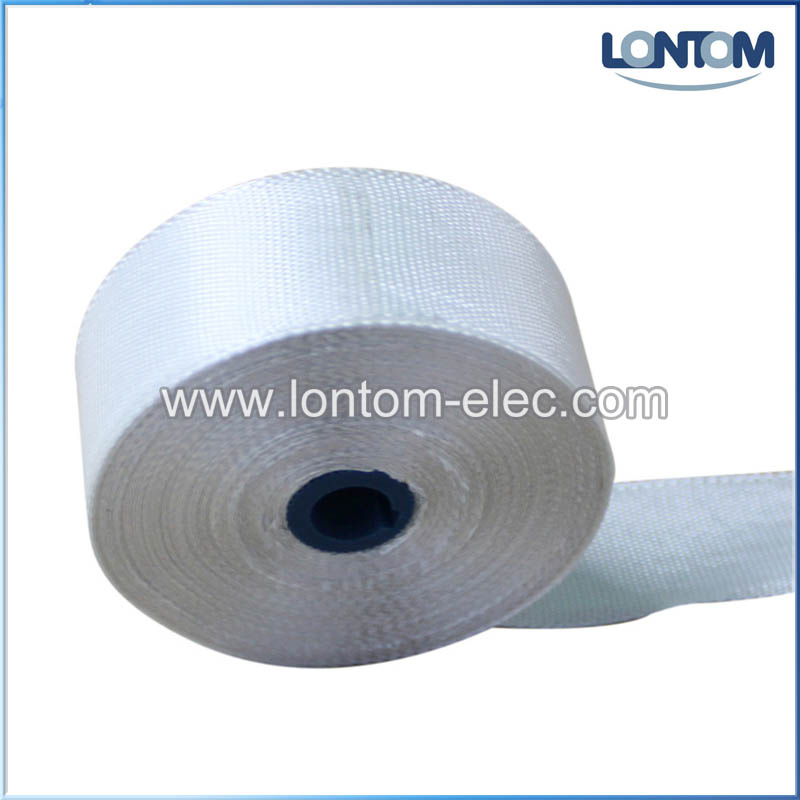

Non-Alkali Insulation Fiberglass Tape

Name: Non-Alkali Insulation Fiberglass Tape
Brand: all-electronics-online.com
SKU: 672494355
Availability: InStock
Rating: 4.8 (116 reviews)

Price:	Negotiable/Roll
Trade Terms:	FOB,CFR,CIF
Min Order:	1000/Roll
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	LT-FGT
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Thickness:	0.13mm~0.40mm
Width:	10mm~150mm
Length/Roll:	Normal Package 30 or 50 Meters
Standard Color:	White
Application:	Motor
Type:	Insulation Sleeve
Chemistry:	Inorganic Insulation
Material:	Fiberglass
Maximum Voltage:	10KV~20KV
Thermal Rating:	450 Ceti Degree

Product Description

FGT Fiberglass Tape is weaved by no-alkali fiberglass yarn, with good thermal resistant and insulation features, which is widely used for windings of motor and transformer.

Main Properties:

1 Thickness: 0.13mm~0.40mm

2. Width: 10mm~150mm

3. Length/Roll: Normal package 30 or 50 meters

4. Standard color: White

5. Flammability: VW-1

6. Weave: Plain

7. Cutting tool: Scissors

8. Certificate: RoHS, MSDS

Application:

1. AC, DC motors

2. Electric generators

3. Transformers.

Test content		Unit	Standard
Appearance			Smooth and white, not any impurity
Standard roll length		M	50 meters per roll and each roll allow one junction.
Density	warp	No. /cm	22± 1
Density	weft	No. /cm	11± 1
Tolerance	thickness	mm	± 0.01
	width	mm	± 1
	length	m	± 0.3
Metallic oxide content		%	< 0.8
Combustible content		%	0.6~2.0
Tensile strength at break		N/20mm	≥ 1000
Weight per unit length		g/m	± 0.1%
Standard color			white
