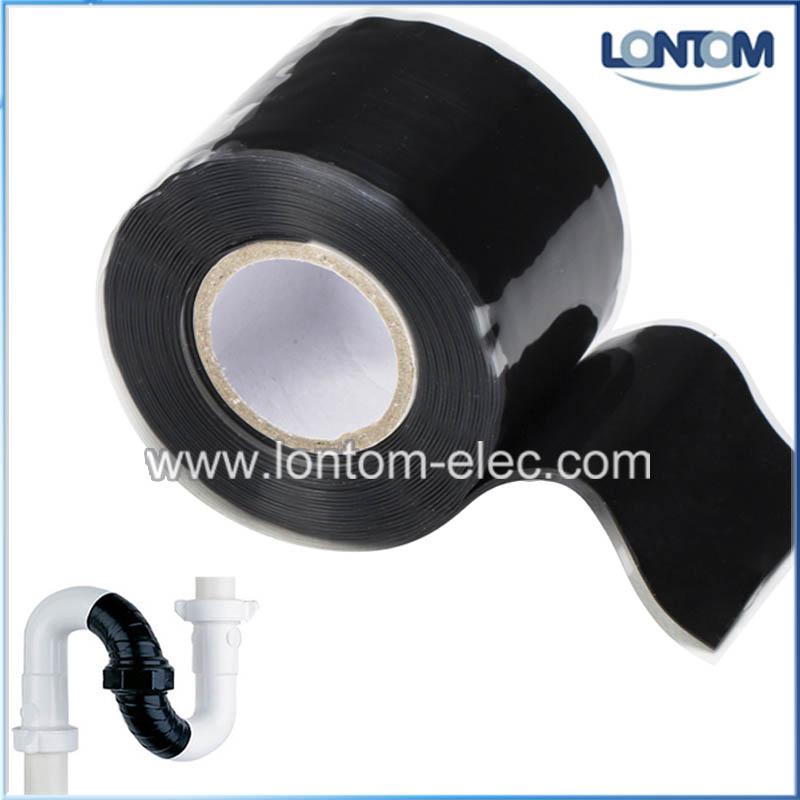

High-Temperature Silicone Rubber Electrical Self Fusing Tape

Prod Model:	LT-SFT
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Thickness:	0.3mm~1.5mm
Width:	10mm~50mm
Length:	3 ~ 45 Meters/Roll
Standard Color:	Black, Red, Yellow, White, Orange, Green, Brick Re
Operating Temperature:	-50ºC~250ºC
Elongation:	≥300%
OEM Service:	Yes
Density:	1.16g/Cm³
Samples:	Free for Existing Sample
Application:	Motor
Type:	Insulation Tape
Chemistry:	Organic Insulation
Material:	Silicone
Thermal Rating:	H 180
Maximum Voltage:	20KV~100KV

Product Description

Self Fusing Silicone Tape is made of the highest quality materials for a permanent air-tight and water-tight seal in emergency situations. It is designed for quick plumbing repairs, sealing hoses in your car/truck/boat, coating the ends of rope, sealing the hatch of a space shuttle as it re-enters earth's atmosphere, wrapping tool handles, emergency O-ring seals or to insulate electrical wiring. It resists fuels, acids, oils, solvents, salt water, road salt and UV rays .

Main Properties:
(1)Thickness: 0.3mm~1.5mm
(2) Width: 10mm~50mm
(3) Length/Roll: Normal package 3 ~ 45 meters
(4) Standard color: Black, Red, Yellow, White, Orange, Green, Brick Red
(5) Operating temperature:-50ºC~250ºC
(6) Elongation≥300%
(7) OEM service
(8)Normal package:1 roll per PE bag

Application:
(1) Emergency Radiator Hose Repair
(2)Insulate electrical wiring
(3) Corrosion Protection

Operation Instruction:
1.) Wrap Rescue Tape around project by stretching and overlapping onto itself. Stretch at least double to ensure a good bond; for high pressure leaks stretch to maximum amount. The tighter Rescue Tape is wrapped, the quicker and stronger the bond.

2.) Continue wrapping Rescue Tape around project by overlapping 50% onto itself so that ½ the width is covered with the next wrap. The first and last wrap should completely overlap onto the previous wrap for a complete bond. Additional layers may be necessary, and the same process should be used over the previous layers. Rescue Tape works on either side.

3.) Repositioning Rescue Tape is only appropriate in the first few seconds after wrapping. Attempting to reposition Rescue Tape after 1 minute or longer is not recommended. Rescue Tape is not reusable; however, additional Rescue Tape can be applied over project at any time in the future.

Technical Data:

Property	Test Results*
Operating temperature range	-50° C to 250° C
Optimum working temperature	180° C (10years)
Cold Brittle Point	-50° C
Elongation, Min.	300%
Bond Strength, Min.	50g/mm
Volume resistivity, Min.	1×1013Ω·cm3
Water Absorbtion, Max.	3% By Weight
Dielectric Strength, Min.	20KV/mm
Dielectric Dissipation Factor	1.94×10-2
Dielectric Constant	2.10
Density	1.16g/cm³
