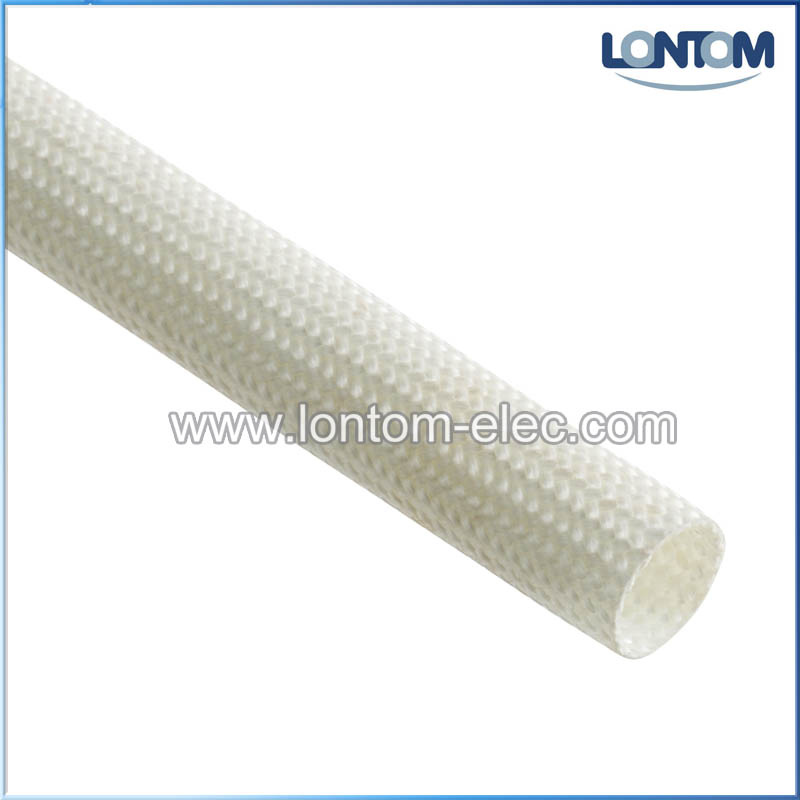

Self-Extinguishable Fiberglass Sleeving

Name: Self-Extinguishable Fiberglass Sleeving
Brand: all-electronics-online.com
SKU: 644840995
Availability: InStock
Rating: 4.7 (53 reviews)

Price:	Negotiable/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	2000/Meter
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	LT-SSG
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Raw Material:	Non-Alkali Fiberglass Yarn Braided
Coating:	Silicone Resin
Operating Temperature:	-60° C~+200° C
Thermal Class:	H
Breakdown Voltage:	1500V, 2500V, 4000V
Flammability:	UL Vw-1
Standard Color:	White, Black, Red, Yellow
I.D.:	0.5mm~30mm
Cutting Tool:	Scissors
Normal Package:	100, 200 Meters Per Roll, Then Carton
Application:	Winding Wire Coating Insulation
Type:	Solid
Chemistry:	Inorganic Insulation
Material:	Fiberglass
Thermal Rating:	H 180
Maximum Voltage:	<10KV

Product Description

Silicone Fiberglass Sleeving is an insulating sleeving produced with a thermal process. The fibreglass is coated with a silicone resin; It is available in three standard voltage: 1500 Volt - 2500 Volt - 4000 Volt. The thermal treatment and the special resins used for this item give the material a very good softness and elasticity, excellent high temperature resistance and good dielectric strength.

Main Properties:

1. Operating temperature: -60° C~+200° C

2. Thermal class: H

3. Short time peaks at +250° C

4. Breakdown voltage: 1500V, 2500V, 4000V.

5. Flammability: UL VW-1

6. Standard color: White, Black, Red, Yellow,
(other colors are available at requesting)

7. Cutting tool: Scissors

8. Certificate: RoHS, MSDS, UL

Application:

1. Electrical appliances

2. Motor and transformers connections

3. All kinds of lamps.

4. General electrical usage.

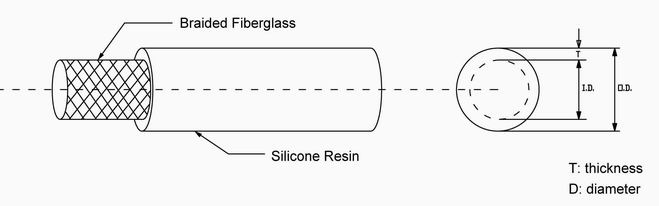

Size	I. D. (mm)		Wall thickness (mm)			Roll Package		Cutting Package
	Min.	Max.	SSG1500V	SSG2500V	SSG4000V	Mts/Roll	Mts/Carton	Mts/PC	PCS/Bag	PCS/Carton
	Min.	Max.	SSG1500V	SSG2500V	SSG4000V	Mts/Roll	Mts/Carton	Mts/PC	PCS/Bag	PCS/Carton
1.0	1.0	1.3	0.40± 0.12	0.41± 0.12	0.50± 0.15	200	5, 000	1.0	100	6, 000
1.5	1.5	1.8	0.40± 0.12	0.41± 0.12	0.50± 0.15	200	3, 000	1.0	100	5, 000
2.0	2.0	2.3	0.40± 0.12	0.41± 0.12	0.50± 0.15	200	2, 400	1.0	100	3, 600
2.5	2.5	2.8	0.40± 0.12	0.41± 0.12	0.50± 0.15	200	2, 000	1.0	100	3, 000
3.0	3.0	3.3	0.50± 0.12	0.52± 0.12	0.52± 0.15	200	1, 600	1.0	100	2, 000
3.5	3.5	3.8	0.50± 0.12	0.52± 0.12	0.52± 0.15	200	1, 200	1.0	100	1, 800
4.0	4.0	4.3	0.50± 0.12	0.52± 0.12	0.52± 0.15	200	1, 200	1.0	100	1, 600
5.0	5.0	5.3	0.50± 0.12	0.52± 0.12	0.55± 0.15	100	1, 000	1.0	100	1, 200
6.0	6.0	6.3	0.50± 0.12	0.52± 0.12	0.55± 0.15	100	800	1.0	100	900
7.0	7.0	7.3	0.50± 0.12	0.52± 0.12	0.55± 0.15	100	600	1.0	50	600
8.0	8.0	8.3	0.50± 0.12	0.52± 0.12	0.55± 0.15	100	600	1.0	50	600
9.0	9.0	9.3	0.60± 0.12	0.62± 0.12	0.65± 0.15	100	600	1.0	50	450
10.0	10.0	10.3	0.60± 0.12	0.62± 0.12	0.65± 0.15	100	600	1.0	40	360
12.0	12.0	12.3	0.60± 0.12	0.62± 0.12	0.65± 0.15	100	600	1.0	30	270
14.0	14.0	14.3	0.70± 0.12	0.73± 0.12	0.78± 0.15	100	600	1.0	20	200
16.0	16.0	16.3	0.70± 0.12	0.73± 0.12	0.78± 0.15	100	600	1.0	20	200
