Electric Wire H05V-U H07V-U H05V-R H07V-R
| Price: |
US $ 0.12-0.5/Meter |
| Min Order: |
1000/Meter |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
H05v-u H07v-u H05v-r H07v-r |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Application: |
Heating |
| Conductor Material: |
Copper |
| Insulation Material: |
PVC |
| Certification: |
CCC |
| Sheath Material: |
No Sheath |
| Brand: |
OEM |
Product Description
Application and Description
H05V-R/H07V-R cables are preferably for installation indoors, in cable ducts and in industrial plants or switching
stations, under ground installation. Can be used in switchboards and distributor boards or where a thicker
strand of multi-wire is required. Found in electronic and electrical equipment and switchgear cabinets
designed for export to a European country and for MRO replacement of European made equipment wire.
Standard and Approval
HD 21.3 S3, BS 6004, VDE-0281 Part-3, CEI 20-20/3 , CEI 20-35 (EN60332-1)
CEI 20-52, CE Low Voltage Directive 73/23/EEC and 93/68/EEC, ROHS compliant

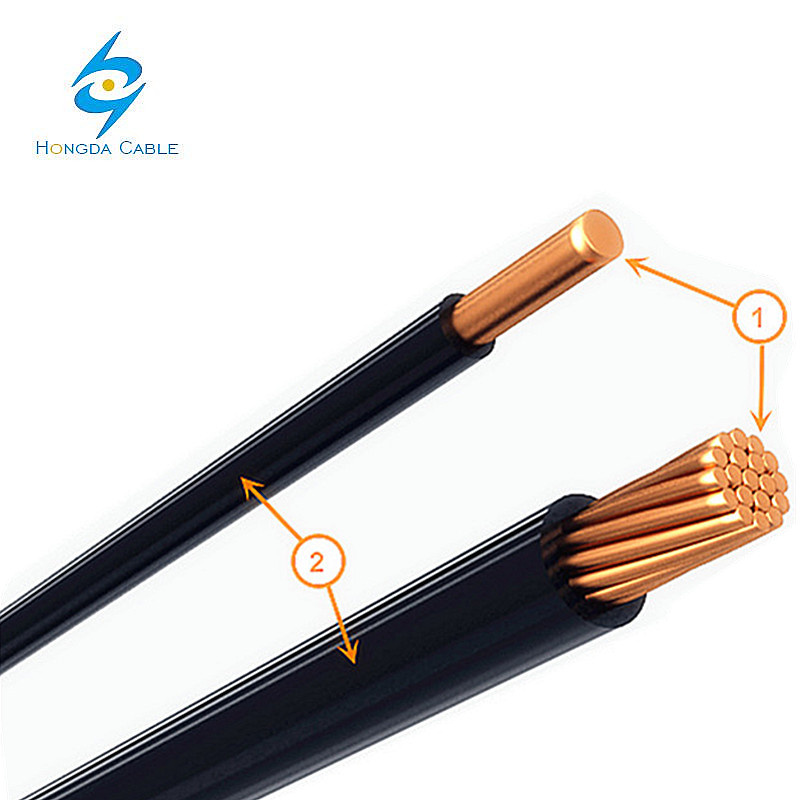

Cable Construction
Bare copper solid/strands conductor
Strands to VDE-0295 Class-2, IEC 60228 Cl-2
Special PVC TI1 core insulation
Cores to VDE-0293 colors on chart
Technical Characteristics
Working voltage: 300/500 volts(H05V-R), 450/750 volts(H07V-R)
Test voltage: 2000 volts(H05V-R), 2500 volts(H07V-R)
Flexing bending radius: 15 x Ø
Static bending radius: 15 x Ø
Flexing temperature: -5º C to +70º C
Static temperature: -30º C to +80º C
Short circuit temperature: +160º C
Flame retardant: IEC 60332.1
Insulation resistance: 10 MΩ x km
Cable Parameter
| AWG | No. of Cores x Nominal Cross Sectional Area # x mm² | Nominal Thickness of Insulation mm | Nominal Overall Diameter
mm | Nominal Copper Weight kg/Km | Nominal Weight kg/Km |
| H05V-R |
| 20(7/29) | 1 x 0.5 | 0.6 | 2.2 | 4.8 | 9 |
| 18(7/27) | 1 x 0.75 | 0.6 | 2.4 | 7.2 | 12 |
| 17(7/26) | 1 x 1 | 0.6 | 2.6 | 9.6 | 15 |
| H07V-R |
| 16(7/24) | 1 x 1.5 | 0.7 | 3.0 | 14.4 | 23 |
| 14(7/22) | 1 x 2.5 | 0.8 | 3.6 | 24 | 35 |
| 12(7/20) | 1 x 4 | 0.8 | 4.2 | 39 | 51 |
| 10(7/18) | 1 x 6 | 0.8 | 4.7 | 58 | 71 |
| 8(7/16) | 1 x 10 | 1.0 | 6.1 | 96 | 120 |
| 6(7/14) | 1 x 16 | 1.0 | 7.2 | 154 | 170 |
| 4(7/12) | 1 x 25 | 1.2 | 8.4 | 240 | 260 |
| 2(7/10) | 1 x 35 | 1.2 | 9.5 | 336 | 350 |
| 1(19/13) | 1 x 50 | 1.4 | 11.3 | 480 | 480 |
| 2/0(19/11) | 1 x 70 | 1,4 | 12.6 | 672 | 680 |
| 3/0(19/10) | 1 x 95 | 1,6 | 14.7 | 912 | 930 |
| 4/0(37/12) | 1 x 120 | 1,6 | 16.2 | 1152 | 1160 |
| 300MCM(37/11) | 1 x 150 | 1,8 | 18.1 | 1440 | 1430 |
| 350MCM(37/10) | 1 x 185 | 2,0 | 20.2 | 1776 | 1780 |
| 500MCM(61/11) | 1 x 240 | 2,2 | 22.9 | 2304 | 2360 |
| | 1 x 300 | 2.4 | 24.5 | | 2940 |
| | 1 x 400 | 2.6 | 27.5 | | 3740 |

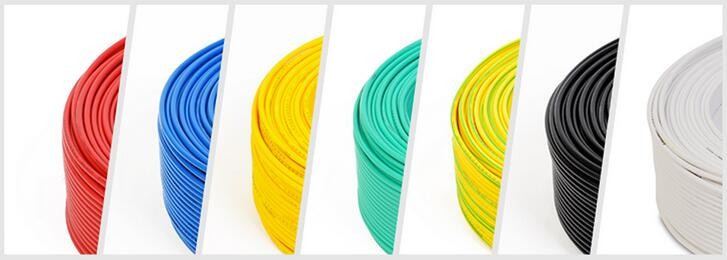

Available Color

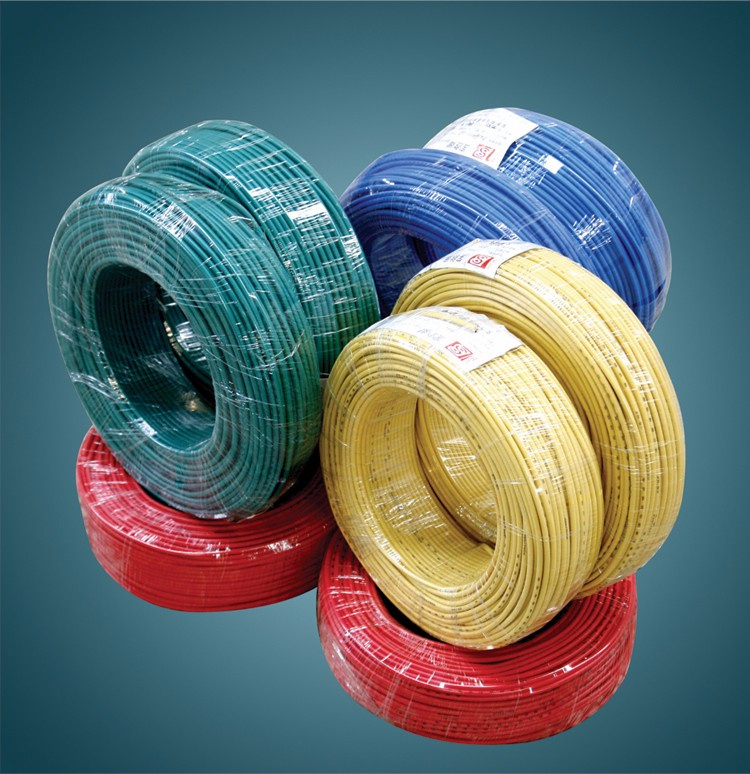

Packing shipping
Why Choose Us ?

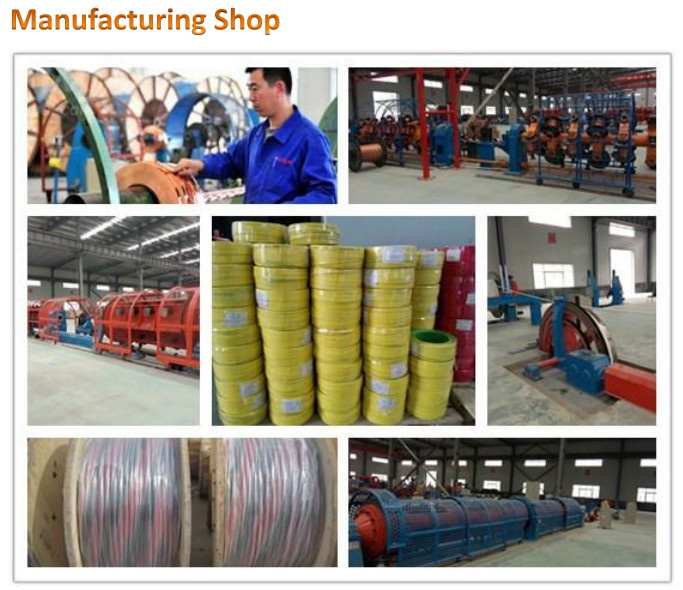

1. We have a large production base, and advanced production equipment
2. Have an competitive price and high quality
3. Excellent after-sale service
4. Free issue:packaging list,invoice
5. Powerful technology team
6. Strict quality assurance system and perfect testing means
7. Advanced process equipment
8. Delivery on time
9. Our cable sales to Middle East,Africa,Russia,Southeast Asia, etc.
10.We have a good reputation in the overseas
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock,
it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: 30% T/T in advance,70% T/T balance before shipment
