Electric Wireless Loadcell

Name: Electric Wireless Loadcell
Brand: all-electronics-online.com
SKU: 764176465
Availability: InStock
Rating: 4.7 (52 reviews)

Price:	US $ 1000/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	load cell
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Capacity:	1~200t
Product Name:	Wireless Loadcell
Shackles:	Included
Pattern:	Handheld
Out-Wire:	Wireless

Product Description

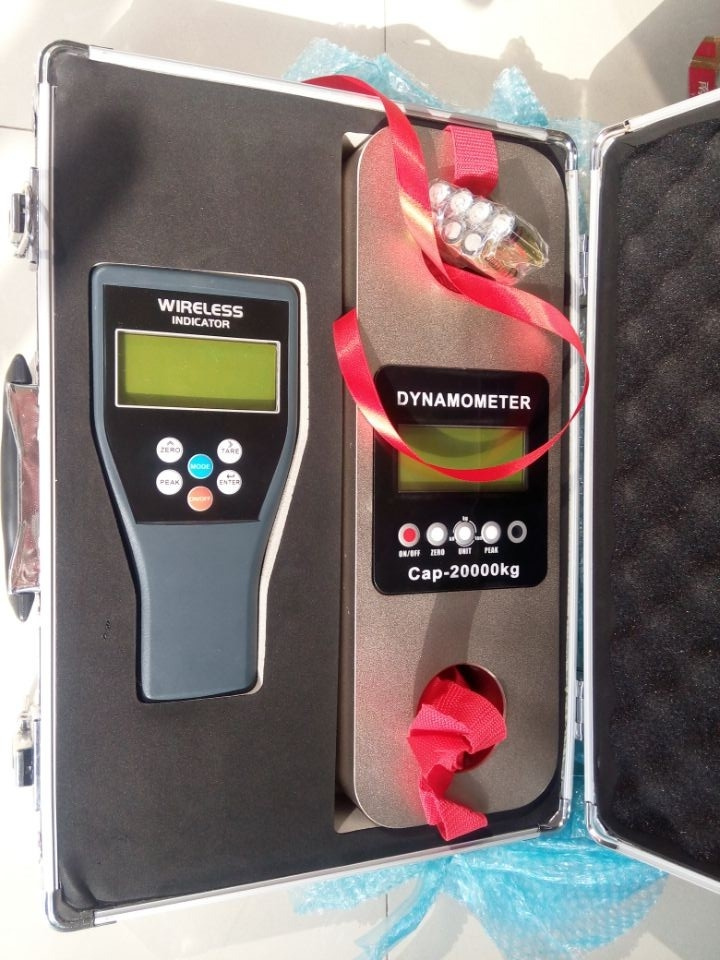

Electric Wireless LoadCell

Brief Introduction for wire loadcell :
Wireless loadcell is a new style weight meter.The weighing meter combination of wireless transmission technology,dynamic measurement technology, using digital signal for signal transmission and display.The instrument consists of weighing and display of two major, Weighing in part by the weighing sensor and intelligent measuring instrument, Measurement data sended by wireless transmission module, The part of the large-capacity battery supplypower. A handheld Display instrument,Power supplied by lithium batteries,Character liquid crystal display. Wireless load cells, both inherited our existing advantages of cable transmission of the weighing instrument, At the same time overcome the transmission distance is short, poor anti-interference ability and cable transmission line easily crushed shortcomings.. Display instrument is small, light weight, easy to carry and use features. The available in the following capacities : 1MT, 2MT, 3MT, 5MT, 10MT, 20MT, 30MT, 50MT, 100MT, 150MT & 200MT.

Model list of wireless Load cell

Model	Cap.	Div.	A	B	C	D	φ	H	Material
			(mm)
GR-WL-01	1t	0.5kg	245	112	37	190	43	335	Aluminum
GR-WL-02	2t	1kg	245	116	37	190	43	335	Aluminum
GR-WL-03	3t	1kg	260	123	37	195	51	365	Aluminum
GR-WL-05	5t	2kg	285	123	57	210	58	405	Aluminum
GR-WL-10	10t	5kg	320	120	57	230	92	535	Alloy Steel
GR-WL-20	20t	10kg	420	128	74	260	127	660	Alloy Steel
GR-WL-30	30	10kg	420	138	82	280	146	740	Alloy Steel
GR-WL-50	50t	20kg	465	150	104	305	184	930	Alloy Steel
GR-WL-100	100t	50kg	570	190	132	366	229	1230	Alloy Steel
GR-WL-200	200t	100kg	725	265	183	440	280	1380	Alloy Steel

Technical Data :

Rated Load	1MT, 2MT, 5MT, 10MT, 20MT, 30MT, 50MT, 100MT& 200MT.
Display:	25mm (1") 5 digits LCD
Power On Zero Range:	20% F.S.
Manual Zero Range:	4% F.S.
Tare Range:	20% F.S.
Stable Time:	< 10 seconds
Overload Indication:	100% F.S. + 9e
Max. Safety Load:	125% F.S.
Ultimate Load:	400% F.S.
Battery Life:	> 40 hours
Battery Type:	"LR6(AA)" size alkaline batteries. 1.5V x 3
Operating Temp:	-10°C ~ +40°C
Operating Humidity:	< 85% RH under 20°C
Wireless Distance:	Min. 80 m (default), 200 m (optional)
Optional shackles	Type G2130, Nominal Size (in.) = 1 3/4, Working Load Limit (tons) = 25
