| Prod Model: |
GR-WL-01 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Usage: |
Pressure Sensor |
| Output: |
Digital Sensor |
| Wireless Digital: |
1t-200t |
| Battery Life: |
50h |
| Warranty: |
1 Year |
Product Description

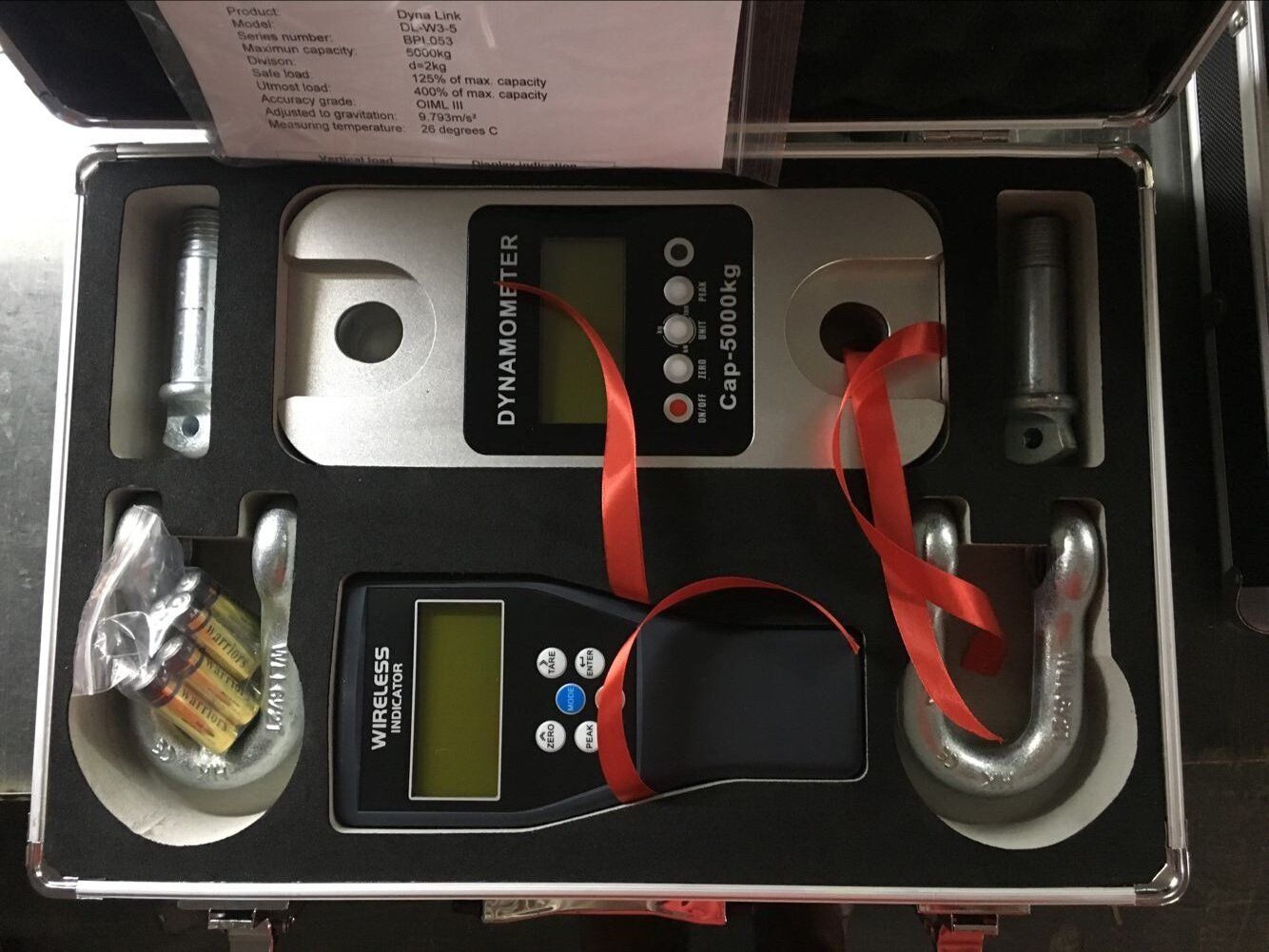

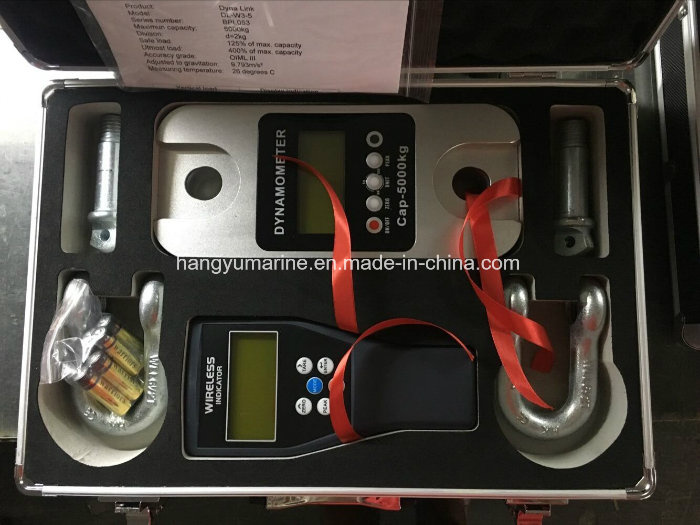

Wireless Loadcell with Handle Indicator/DynamometerApplications:
l Under Hook Crane weighing
l Wire Rope and cable tension monitoring
l Heavy lift and rigging
l Aircraft manufacturing and repair
l Structural load testing and certification
l Crane and hoist calibration and proof load testing
l Water weight testing and calibration
l Shipping&receiving weighing
l Manufacturing and heavy construction
l Event staging and rigging
l Offshore mooring anchor setting
l Bollard pull testing and certification
l Escalator comb impact testing
Features:1. Rugged construction, fresh integrated sensor design
2. Accuracy: 0.05% of capacity
3. All fuctions and units are clearly display on the LCD (with backlighting),
4. LCD digital display 1 inch high for easy distant viewing.
5.Two user programmable SetPoint can be used for safety and warning applications or for limit weighing.
6. Long battery life on 3 standard "LR6(AA)"size alkaline batteries.
7. All commonly used internationally recognized units are available: kg/t/lb/N/kN
8. Infrared Remote control easier to calibration(with password)
9. Infrared Remote control with many fuctions:"ZERO", "TARE","CLEAR","PEAK","ACCUMULATE","HOLD","Unit Change","Voltage Check"and "Power OFF"
10. Local mechanical keys:"ON/OFF","ZERO","PEAK" and "Unit Change".
11. Low battery warnning.
12. RF wireless palm indicator
13. Wireless data receiver receives 100M
14. Opention: Shackle
Parameter:1. Body Display 25mm (1") 5digits LCD with backlight
2. Indicator Display 25mm (1") 5digits LCD with backlight
3. Power on zero range 20% F.S.
4. Manual Zero Range 4% F.S.
5. Tare Range 20% F.S.
6. Stable Time ≤10 seconds
7. Overload Indication 100% F.S. + 9e
8. Max.Safety Load 125% F.S.
9. Ultimate Load 400% F.S.
10. Battery Life ≥50 hours
11. Battery Type:"LR6(AA)"size alkaline batteries.1.5Vx3
12. Indicator Battery "LR6(AA)"size alkaline batteries. 1.5Vx4
13. Operating Temp. - 20°C ~ + 50°C
14. Operating Humidity ≤85% RH under 20°C
15. Remote controller distance: Min 15m

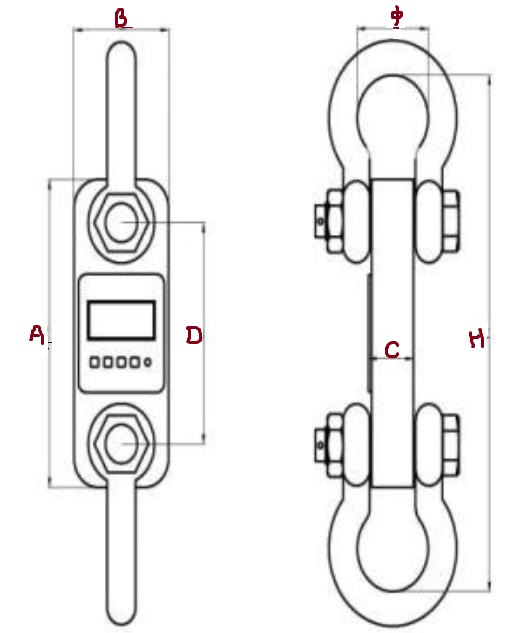

Specification| Model | Cap. | Div. | A | B | C | D | φ | H | Material |
| (mm) |
| GR-WL-01 | 1t | 0.5kg | 245 | 112 | 37 | 190 | 43 | 335 | Aluminum |
| GR-WL-02 | 2t | 1kg | 245 | 116 | 37 | 190 | 43 | 335 | Aluminum |
| GR-WL-03 | 3t | 1kg | 260 | 123 | 37 | 195 | 51 | 365 | Aluminum |
| GR-WL-05 | 5t | 2kg | 285 | 123 | 57 | 210 | 58 | 405 | Aluminum |
| GR-WL-10 | 10t | 5kg | 320 | 120 | 57 | 230 | 92 | 535 | Alloy Steel |
| GR-WL-20 | 20t | 10kg | 420 | 128 | 74 | 260 | 127 | 660 | Alloy Steel |
| GR-WL-30 | 30 | 10kg | 420 | 138 | 82 | 280 | 146 | 740 | Alloy Steel |
| GR-WL-50 | 50t | 20kg | 465 | 150 | 104 | 305 | 184 | 930 | Alloy Steel |
| GR-WL-100 | 100t | 50kg | 570 | 190 | 132 | 366 | 229 | 1230 | Alloy Steel |
| GR-WL-200 | 200t | 100kg | 725 | 265 | 183 | 440 | 280 | 1380 | Alloy Steel |
