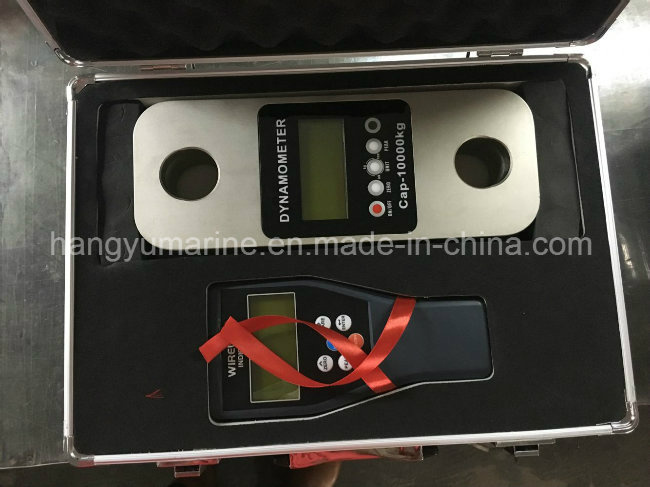

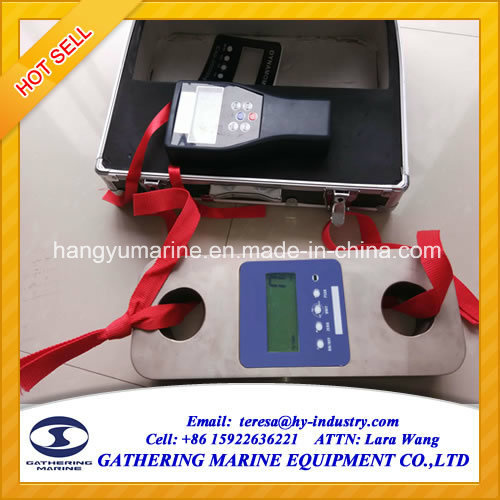

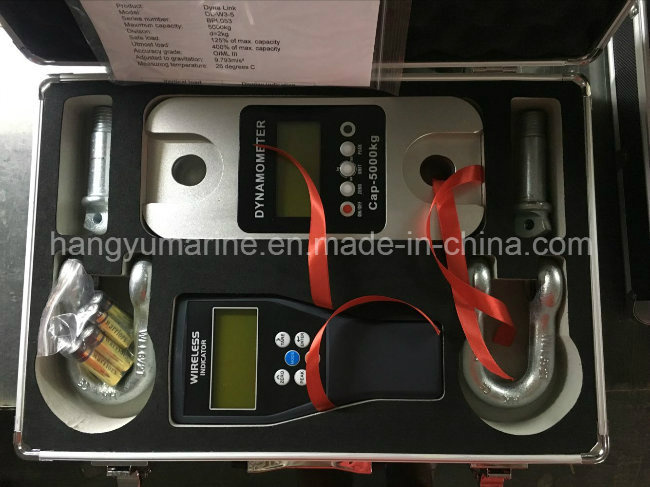

1t~200t Wireless Control Dynamometer / Load Cell for Loading Test
| Price: |
US $ 600-3400/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
GR-WL-50 Dynamometer |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Wireless Digital Dynamometer Origin: |
China Wireless Load Cell |
| Wireless Digital Dynamometer Brand: |
Gr Wireless Load Cell |
| Wireless Digital Dynamometer Capacity: |
1t~200t Wireless Load Cell |
| Wireless Digital Dynamometer Application: |
Hook Crane Weighing/Proof Load Testing |
| Wireless Digital Dynamometer Accuracy: |
0.05% of Capacity |
| Wireless Load Cell Battery Life: |
50 Hours Wireless Loadcell |
| Wireless Load Cell Available Units: |
Kg/T/Lb/N/Kn Wireless Digital Dynamometer |
| Wireless Loadcell Wireless Date Receiver: |
Receives 100m Wireless Digital Dynamometer |
| Wireless Loadcell Package: |
Aluminum Alloy Case |
| Output: |
Digital Sensor, Digital Sensor |
Product Description
1t~200t Wireless Control Dynamometer / Load Cell for Loading Test
Application:
Under Hook Crane weighing
Wire Rope and cable tension monitoring
Heavy lift and rigging
Aircraft manufacturing and repair
Structural load testing and certification
Crane and hoist calibration and proof load testing
Water weight testing and calibration
Shipping&receiving weighing
Manufacturing and heavy construction
Event staging and rigging
Offshore mooring anchor setting
Bollard pull testing and certification
Escalator comb impact testin
Features:
1. Rugged construction, fresh integrated sensor design
2. Accuracy: 0.05% of capacity
3. All fuctions and units are clearly display on the LCD (with backlighting),
4. LCD digital display 1 inch high for easy distant viewing.
5. Two user programmable Set-Point can be used for safety and warning applications or for limit weighing.
6. Long battery life on 3 standard "LR6(AA)"size alkaline batteries.
7. All commonly used internationally recognized units are available: Kg/t/lb/N/kN
8. Infrared Remote control easier to calibration(with password)
9. Infrared Remote control with many fuctions: "ZERO", "TARE", "CLEAR",
"PEAK", "ACCUMULATE", "HOLD", "Unit Change", "Voltage Check"and "Power OFF"
10. Local mechanical keys: "ON/OFF", "ZERO", "PEAK" and "Unit Change".
11. Low battery warnning.
12. RF wireless palm indicator
13. Wireless data receiver receives 100M
14. Opention: Shackle
Parameter:
1. Body Display 25mm (1") 5digits LCD with backlight
2. Indicator Display 25mm (1") 5digits LCD with backlight
3. Power on zero range 20% F. S.
4. Manual Zero Range 4% F. S.
5. Tare Range 20% F. S.
6. Stable Time ≤ 10 seconds
7. Overload Indication 100% F. S. + 9e
8. Max. Safety Load 125% F. S.
9. Ultimate Load 400% F. S.
10. Battery Life ≥ 50 hours
11. Battery Type: "LR6(AA)"size alkaline batteries. 1.5Vx3
12. Indicator Battery "LR6(AA)"size alkaline batteries. 1.5Vx4
13. Operating Temp. - 20° C ~ + 50° C
14. Operating Humidity ≤ 85% RH under 20° C
15. Remote controller distance: Min 15m
| Model | Cap | Div. | A | B | C | D | φ | H | Material |
| (mm) |
| GR-WL-01 | 1t | 0.5kg | 245 | 112 | 37 | 190 | 43 | 335 | Aluminum |
| GR-WL-02 | 2t | 1kg | 245 | 116 | 37 | 190 | 43 | 335 | Aluminum |
| GR-WL-03 | 3t | 1kg | 260 | 123 | 37 | 195 | 51 | 365 | Aluminum |
| GR-WL-05 | 5t | 2kg | 285 | 123 | 57 | 210 | 58 | 405 | Aluminum |
| GR-WL-10 | 10t | 5kg | 320 | 120 | 57 | 230 | 92 | 535 | Alloy Steel |
| GR-WL-20 | 20t | 10kg | 420 | 128 | 74 | 260 | 127 | 660 | Alloy Steel |
| GR-WL-30 | 30t | 10kg | 420 | 138 | 82 | 280 | 146 | 740 | Alloy Steel |
| GR-WL-50 | 50t | 20kg | 465 | 150 | 104 | 305 | 184 | 930 | Alloy Steel |
| GR-WL-100 | 100t | 50kg | 570 | 190 | 132 | 366 | 229 | 1230 | Alloy Steel |
| GR-WL-200 | 200t | 100kg | 725 | 265 | 183 | 440 | 280 | 1380 | Alloy Steel |

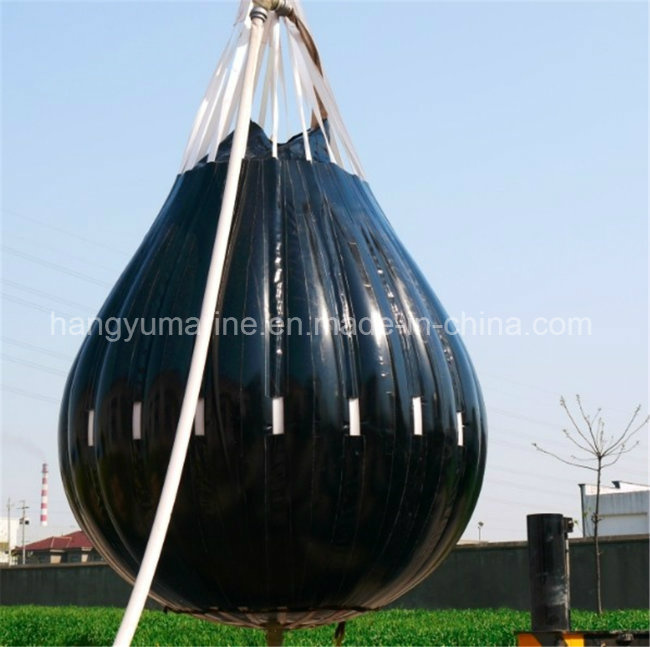

Optional Load Test Water Bag
Please contact us if you are interested in any Load Test equipment Loadcell Dynamometer, Water Bags etc. Thanks
