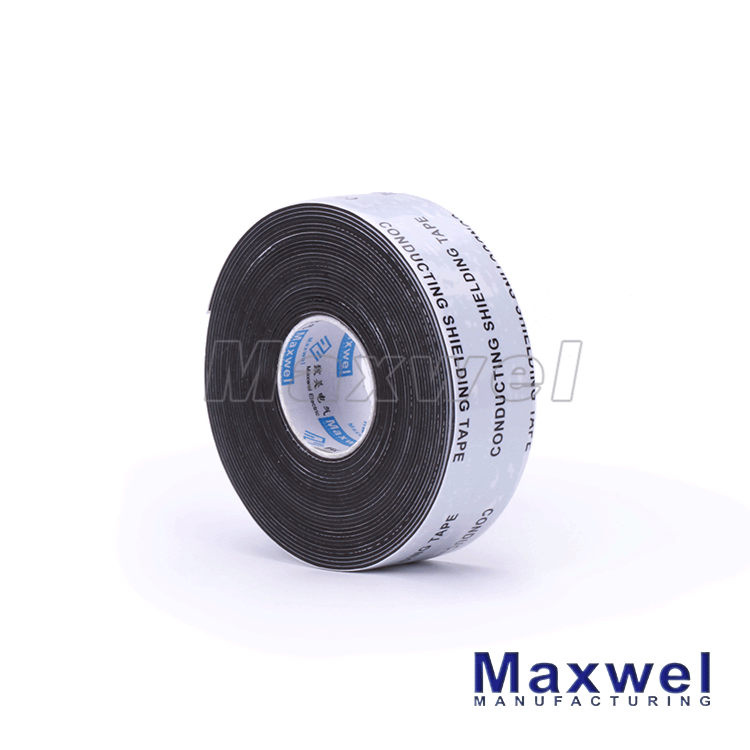

Electrical Semi Conducting Tape (KE40)

Prod Model:	KE40
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Colour:	Black
Normal Size:	25mm*0.76mm*5m
Raw Material:	Semi Epr
Function:	Shield
Application:	Insulators
Type:	Insulation Tape
Chemistry:	Hybrid Insulation
Material:	Rubber
Thermal Rating:	Y 90
Maximum Voltage:	<10KV

Product Description

High Voltage EPR Tape (KE40)

Semi-Conducting Tape is high-voltage splicing tape, made from semi EPR(Ethylene Propylene Rubber), they are non-vulcanizing and shelf-stable conductivity over a wide temperature range. Its conductivity is not affected, except by low-viscosity oils.

Features
Semi-conducting (low resistivity)
Retains conductivity with strength
Elongates easily to conform to irregular shapes
Stable at elevated temperatures (130°C / 266°F)
Compatible with most solid dielectric cable insulations and conductors
Excellent resistance to cracking or checking from solvents, UV, or moisture
Compatible with high-voltage splicing and terminating materials
Usable for indoor or outdoor applications

Application
1.To electrically round out high-voltage connectors and to bond to insulating materials to minimize electrical stresses
2.Continue semi-conducting strand shielding found in solid dielectric (polyethylene, XLP, EPR, etc.) cables at 5 kV and above
3.Provide shielding for cable joints on solid dielectric insulated power cables (shielded or concentric neutral)
4.Replace semi-conducting layer beneath metallic shield of similar cables in case of damage (screening)
5. Make conductive portion of stress cone of power cable termination on solid dielectric insulated power cables
6.Maintain positive connection between concentric neutral semi-conducting jackets of power cables and semi-co
nducting surfaces of plug-in units
7.Establish a more positive contact between concentric neutral wires and pre-molded devices already installed with too much jacket exposed
8.Round out bolted connections on insulated bus bars

Size
19mmx0.76mmx4.5m
25mm X 0.76mm X 5m
Special size available


Description	Unit	Spec
Tensile Strength	Mpa	≥1.0
Elongation	%	≥500
Self Adhesion	/	Not loose
Thermal Stress Resistance	/	Pass
UV Exposure Resistance	/	No cracks
Volume Resistivity	Ω\cm	≥100~1000
