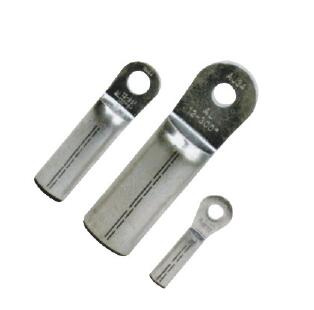

Yongjiu Electric Power Fitting Co., Ltd. >> Electrical Terminal DIN Au Cable Lugs Types Aluminum Ferrule

Electrical Terminal DIN Au Cable Lugs Types Aluminum Ferrule

Electrical Terminal DIN Au Cable Lugs Types Aluminum Ferrule
Price: US $ 0.05-2/Piece
Min Order: 500/Piece
Pay Type: L/C,T/T,Western Union,Money Gram
Prod Model: AU
Yojiu Profession: 28 Years
Crimp Terminal Surface: Original or Tin Plated
Crimp Terminal Material: Aluminium
Usage: Wire Connector, Power
Others: OEM Service Offered
Product Name: Au Lug
Name: Aluminium Cable Lug
Special: Good Quality
Certificate: ISO9001
Samples: Available
Type: Single Hole Terminals
Material: Aluminum
Application: Conduct Electricity
Character: Other
Interface Type: Other
Certification: Other
Brand: Yojiu or OEM

Product Description


Product Description
Material: Al-99.5%
Surface treatment: Tin-plated mini 15 microns
Product Property: It is in accordance with DIN 46329 with markings for correct crimping. And its barrel capped is filled with joint compound to avoid oxidization. And its type test is follow IEC 61238

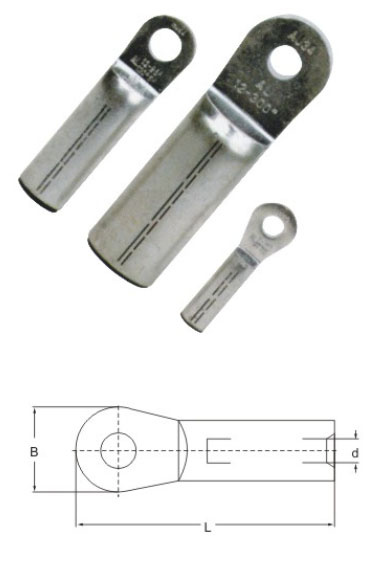

Dimension

Item NoCable spec(mm2)Dimensions(mm)Stud size
dL
AU16-816605.820M8
AU16-10605.820M10
AU25-82562.56.825M8
AU25-1062.56.825M10
AU35-83574.5825M8
AU35-1074.5825M10
AU50-105074.59.825M10
AU50-1274.59.825M12
AU70-107084.511.225M10
AU70-1284.511.225M12
AU95-109584.513.225M10
AU95-1284.513.225M12
AU120-101209714.730M10
AU120-129714.730M12
AU150-1015010516.330M10
AU150-1210516.330M12
AU185-1218510618.330M12
AU185-1610618.330M16
AU240-122401222138M12
AU240-161222138M16
AU300-1230012223.338M12
AU300-1612223.338M16




We are the biggest manufacturer and exporter of electric power fitting and cable accessory in China. We have more than 20 years experience and we are ISO9001/2000 certified enterprise. Our campany located in Liushe Town, Wenzhou. Liushi is the centr of eelectric appliance in China. It isabout 15Kmfar away from Wenzhou Airport and Railway Station and 104State level highway across through. Therefore the transportation is very convenient.

The total area of our company is over 1500m2. We have more than300 workers include 38 senior and intermcdiate special technical personnel and administraive personnel. We havemore than 200 series and 3000 vareties products. Include cable hardware, circuity hardware, substation hardware, power station hardware, cabletie, heat or cold shrinkable material and other accessory.

Our product has been exported to the Southeast Asia, Africa, Middle East, Europe and America more than 40 countries. In our trade with merchants of various countries, we always adhere to theprinciple of equality and mutual benefit. Welcomecustomers in this line to come over for negotia-tion and cooperation and make contribution to development of electric power.
