Electrical Terminal Dtl-3 Bimetallic Cable Lugs Types

Name: Electrical Terminal Dtl-3 Bimetallic Cable Lugs Types
Brand: all-electronics-online.com
SKU: 828774725
Availability: InStock
Rating: 4.9 (75 reviews)

Price:	US $ 0.1-10/Piece
Min Order:	500/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	DTL-3
Yojiu Profession:	28 Years
Crimp Terminal Surface:	Original or Tin Plated
Crimp Terminal Material:	Copper and Aluminium
Usage:	Wire Connector, Power
Others:	OEM Service Offered
Product Name:	Dtl-3 Lug
Name:	Bimetal Cable Lug
Special:	Friction Welding
Certificate:	ISO9001
Samples:	Available
Type:	Single Hole Terminals
Application:	Conduct Electricity
Material:	Aluminium&Copper
Character:	Other
Production Process:	Friction Welding
Interface Type:	Other
Certification:	Other
Brand:	Yojiu or OEM

Product Description

Product Description

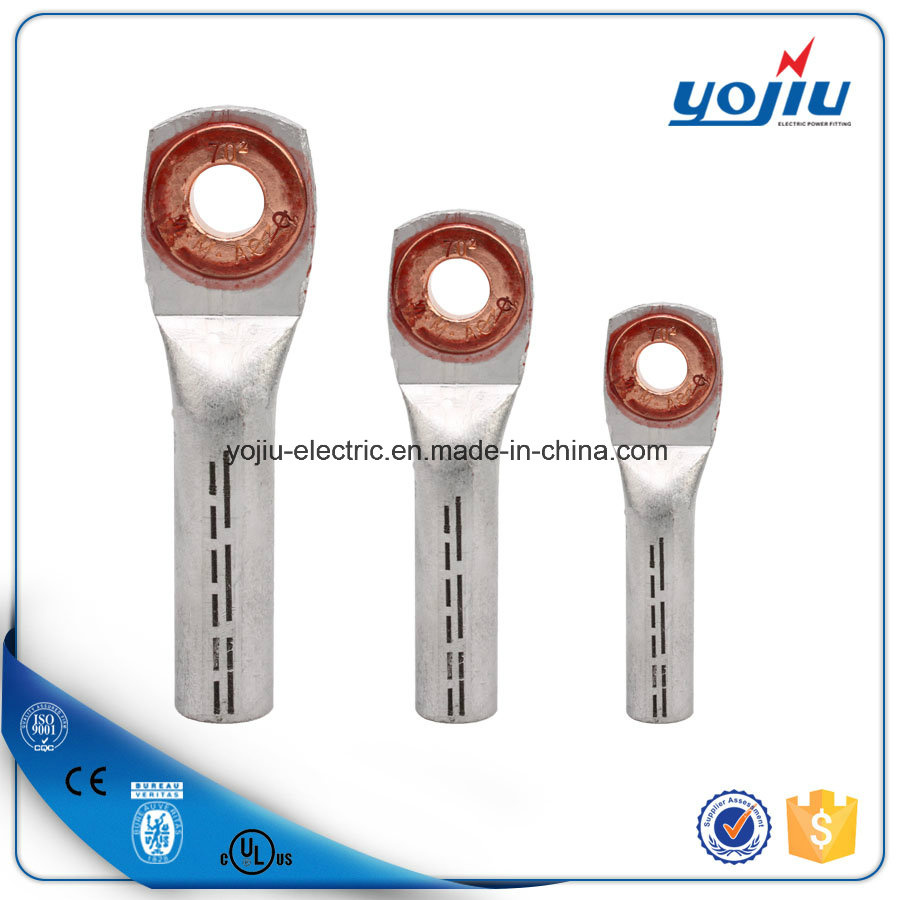

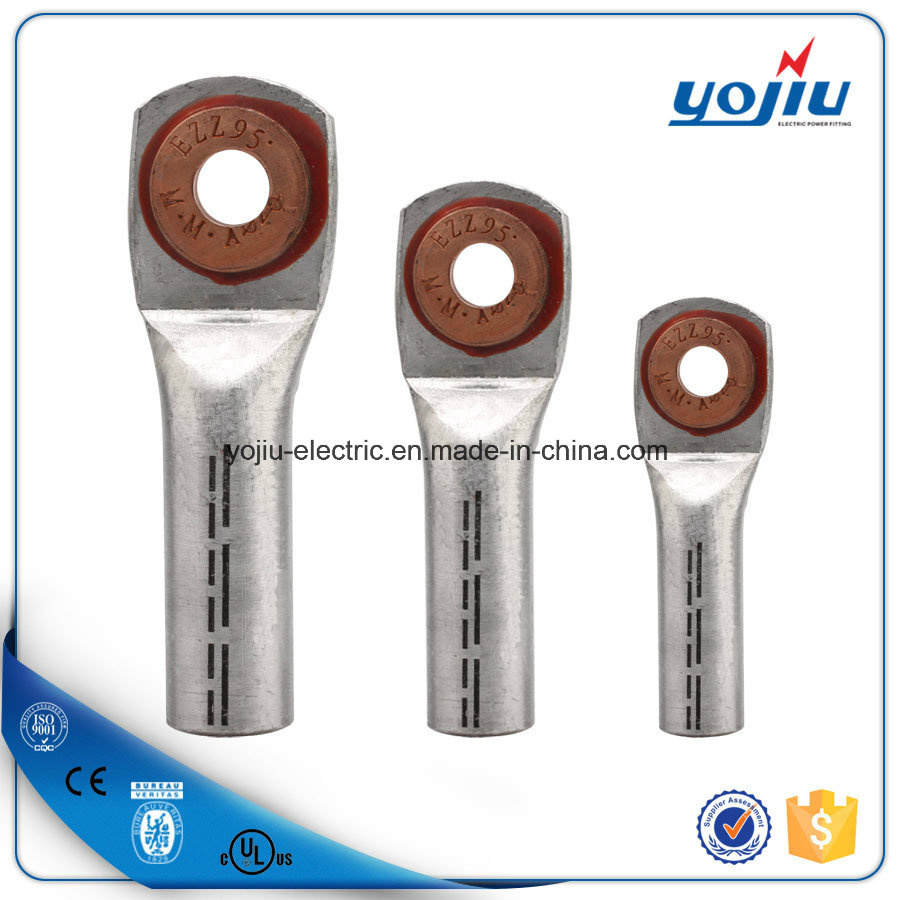

The Bimetal Lugs DTL-3 series of copper-aluminum wiring terminals are suitable for transition connection of the circular aluminium wires,hemicycle-sector aluminium wires,power supply cables in the distribution equipment and copper terminals of the electrical equipment. They are made from Cu 99.9% purity and Al 99.5 purity.

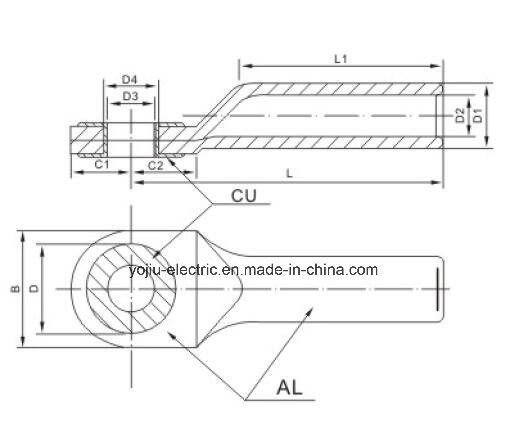

Dimension

Item No.	Dimensions(mm)
Item No.	C1	d1	d2	d3	L	L1
DTL-3-35	14.5	14	8	10.5	67	43
DTL-3-50	14.5	16	10	10.5	72	45.5
DTL-3-70	16.5	18	11.5	13	86	56
DTL-3-95	17.5	22	13.5	13	90	57.5
DTL-3-120	16.5	22	15	13	91	57
DTL-3-150	18.5	25	16.5	13	103	65
DTL-3-185	22	28	18.5	13	106	65
DTL-3-240	25.5	32	21	17	116	69

We are the biggest manufacturer and exporter of electric power fitting and cable accessory in China. We have more than 20 years experience and we are ISO9001/2000 certified enterprise. Our campany located in Liushe Town, Wenzhou. Liushi is the centr of eelectric appliance in China. It isabout 15Kmfar away from Wenzhou Airport and Railway Station and 104State level highway across through. Therefore the transportation is very convenient.

The total area of our company is over 1500m2. We have more than300 workers include 38 senior and intermcdiate special technical personnel and administraive personnel. We havemore than 200 series and 3000 vareties products. Include cable hardware, circuity hardware, substation hardware, power station hardware, cabletie, heat or cold shrinkable material and other accessory.

Our product has been exported to the Southeast Asia, Africa, Middle East, Europe and America more than 40 countries. In our trade with merchants of various countries, we always adhere to theprinciple of equality and mutual benefit. Welcomecustomers in this line to come over for negotia-tion and cooperation and make contribution to development of electric power.
