F24-60 12V Korea Wireless Remote Joystick Control for Tower Crane and Concrete Pump

Name: F24-60 12V Korea Wireless Remote Joystick Control for Tower Crane and Concrete Pump
Brand: all-electronics-online.com
SKU: 715473582
Availability: InStock
Rating: 5 (150 reviews)

Price:	US $ 500-1200/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	F24-60
Application:	Industrial Machinery
Signal Transmission:	Radio Waves
Type:	Joystick
Certification:	CE
Universal:	Universal
Transmission Distance:	50-100m
Material:	Plastic
Battery Type:	AA Battery
Voltage:	DC/AC12V,AC380V,AC110V,AC220V,DC/AC36V

Product Description

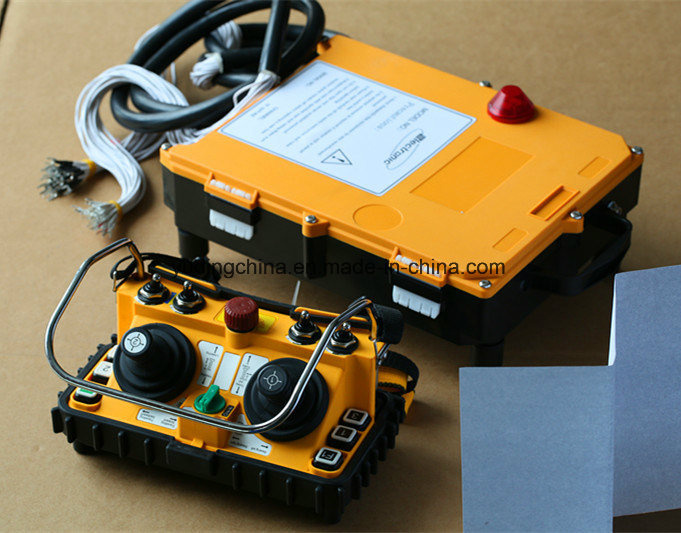

F24-60 12V Korea Wireless Remote Joystick Control for Tower Crane and Concrete Pump

2 Piece five speed paragraph sensing(4 directions)+6 piece single speed keys(Include power button)+ 1 piece stop button + 1 piece rotation key + 2 piece two paragraph selector switch + 2 pieces three paragraph selector switch.

F24-60 Transmitter:

(1) Dimension: Length x Width x High :220 x 110 x 90mm
(2) Weight: 860kg( Not included battery) three stage LED lights.
(3) Power: Four section 1.5 V AA alkaline batteries;
With the battery voltage alarm device, when voltage is insufficient to cut off the circuit itself;
The total stop button using the self locking type red "mushroom head" button, further emphasized the overall safety factor.

F24-60 receiver:

RX Model	F24-60-RX-V-(E)
RX Size	36x24x7.7cm
RX Weight	about2478g
Protection Degree	IP65
Housing Material	glass fiber-reinforced nylon-6
connection diagram	English
Temperature Rating	-35°C ~ +85°ºC
Power Supply	AC380V,AC36V,AC220V,AC110V,AC48V,AC24V, AC12V/DC12V,AC380V/AC220V(50-60Hz)
Relays	Max 40 Relays control functions(setted by programming tool),1 relay control EMS
Output Relays	5Amp Omniseal Relays(AC250V/10A Relays ,10Amp fuse)
I.D.Code	4.3 billion
Operating Frequency	310.0325-331.165MHz
Channel Spacing	0.2675MHz
Channel	80CH
Sensitivity	>=-110DBm
Interface	Cable output

Receiver:
(1) Dimension: Length x Width x High :290 x 230 x 90mm
(2) Weight:2200g(Not include cable)
(3) Received power:24/48/110/220/380v AC; 12~48V
Frequency rate: 331.165( Mhz) VHF
Frequency control: Quartz crystal
The output contacts: Full sealed relay 10 A / 250 V (itself a control point for passive switch output signal);
Receive high frequency: Sensitivity ≥-110dBm;
Reaction speed: 0.065 second.
Enclosure protection level:IP65;
Structure: Nylon + glass fiber
Multiple safety protection design: Hamming code, watchdog circuit, 32 bits don't repeat identification number.

Application:

Tower crane, concrete pump, hydraulic pump, hydraulic crane, etc

Company Picture:

Henan Dirk Electronic Co. Ltd (former Henan Yuding Electronics Crop., Ltd) is an industrial radio remote controls manufacturer in China. Established in August, 2010, With more than 10 years experience on this industrial remote control system business area. Headquartered in Zhengzhou, Henan province. Dirk has so many experts in the industrial radio remote controller area to assure quality and productivity, Dirk are becoming one of the leading companies in this industry in China.

Our main products is: F21 Series radio remote controls, F23 series radio remote controls, F24-60 Dual Joystick radio remote control and explosion-proof remote controls. All these remote controls are easy to operate to keep workers safety and Efficient. All our products are CE & FCC & ISO Certificate.

Quality is company's life. From the raw material testing, manufacturing, aging test and assembly, Each process are operate according to ISO9001: 2008 & international quality control system to guarantee the products quality. Competitive price with excellent quality and good after-sales service make our Internal customers are covered Over 400 cities of 33 countries. We also have built long-term business relationship with the foreign customers.

We here sincerely hope to establish partnership with you and your esteem company.
