Factory Control Box Wire Rvs Escalator and Elevator Cable

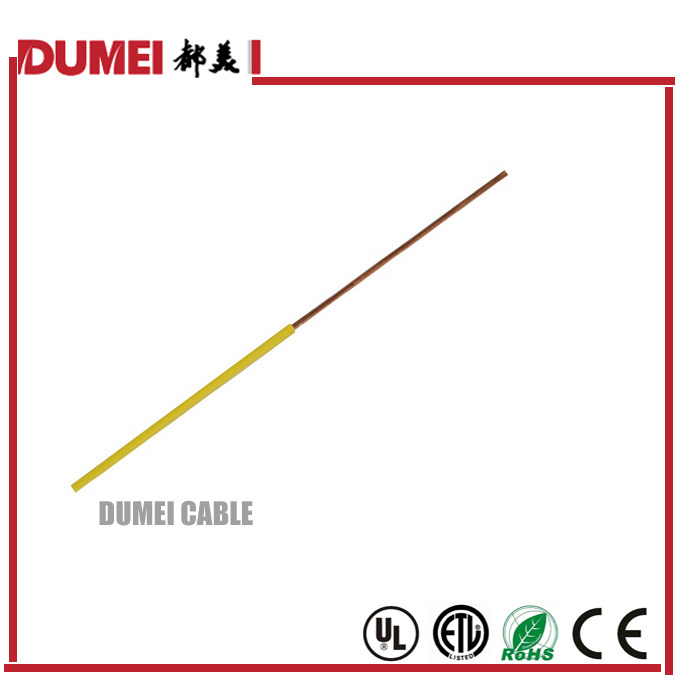

Name: Factory Control Box Wire Rvs Escalator and Elevator Cable
Brand: all-electronics-online.com
SKU: 727962772
Availability: InStock
Rating: 4.7 (74 reviews)

Price:	Negotiable/Meter
Min Order:	20000/Meter
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	RVS
Conductor Type:	Solid
Conductor Material:	Copper
Insulation Material:	PVC
Certification:	3c
Type:	Control Box Wire
Application:	Elevator Escalator Cable
Brand:	Dumei or OEM

Product Description

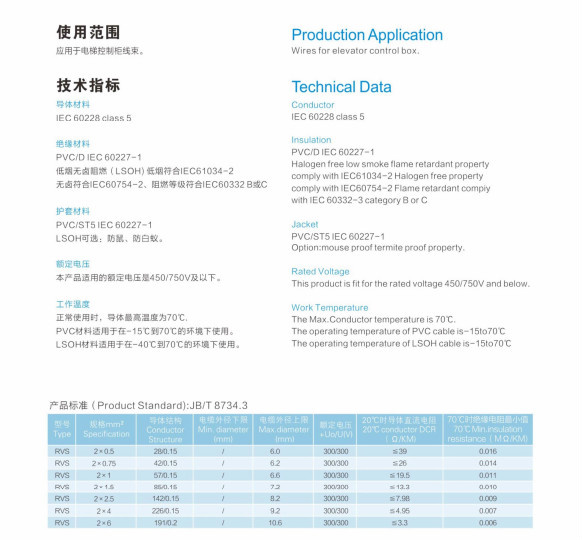

1\ product describe

/
Wire

(Product Standard):GB/T 5023.3
	mm²					20ºC	70ºC
Type	Specification	Conductor Structure	Min. diameter(mm)	Max.diameter (mm)	Uo/U(V)	(Ω/KM)20ºC conductor DCR(Ω/KM)	(MΩ/KM)70ºC Min.insulation resistance
60227 IEC 05(BV)	0.5	1/0.8	1.9	2.3	300/500	<=36	0.015
60227 IEC 05(BV)	0.75	1/0.98	2.1	2.5	300/500	<=24.5	0.012
60227 IEC 05(BV)	1	1/1.13	2.2	2.7	300/500	<=18.1	0.011
60227 IEC 01(BV)	1.5	1/1.38	2.6	3.2	450/750	<=12.1	0.011
60227 IEC 01(BV)	2.5	7/0.68	3.3	4	450/750	<=7.41	0.0009
60227 IEC 01(BV)	4	7/0.86	3.8	4.6	450/750	<=4.61	0.0077
60227 IEC 01(BV)	6	7/1.04	4.3	5.2	450/750	<=3.08	0.0065
60227 IEC 01(BV)	10	7/1.35	5.6	6.7	450/750	<=1.83	0.0065
60227 IEC 01(BV)	16	7/1.7	6.4	7.8	450/750	<=1.15	0.005
60227 IEC 01(BV)	25	7/2.14	8.1	9.7	450/750	<=0.727	0.005
60227 IEC 01(BV)	35	7/2.52	9	10.9	450/750	<=0.524	0.0043
60227 IEC 01(BV)	50	19/1.78	10.6	12.8	450/750	<=0.387	0.0043
60227 IEC 01(BV)	70	19/2.16	12.1	14.6	450/750	<=0.268	0.0035
60227 IEC 01(BV)	95	19/2.52	14.1	17.1	450/750	<=0.193	0.0035
60227 IEC 06(RV)	0.5	28/0.15	2.1	2.5	300/500	<=39	0.013
60227 IEC 06(RV)	0.75	30/0.18	2.2	2.7	300/500	<=26	0.011
60227 IEC 06(RV)	1	40/0.18	2.4	2.8	300/500	<=19.5	0.01
60227 IEC 02(RV)	1.5	48/0.2	2.8	3.4	450/750	<=13.3	0.01
60227 IEC 02(RV)	2.5	47/0.26	3.4	4.1	450/750	<=7.98	0.009
60227 IEC 02(RV)	4	77/0.26	3.9	4.8	450/750	<=4.95	0.007
60227 IEC 02(RV)	6	112/0.26	4.4	5.3	450/750	<=3.3	0.006
60227 IEC 02(RV)	10	88/0.38	5.7	6.8	450/750	<=1.91	0.0056
60227 IEC 02(RV)	16	141/0.38	6.7	8.1	450/750	<=1.21	0.0046
60227 IEC 02(RV)	25	220/0.38	8.4	10.2	450/750	<=0.78	0.0044
60227 IEC 02(RV)	35	308/0.38	9.7	11.7	450/750	<=0.554	0.0038
60227 IEC 02(RV)	50	441/0.38	11.5	13.9	450/750	<=0.386	0.0037
60227 IEC 02(RV)	70	421/0.46	13.2	16	450/750	<=0.272	0.0032


(Product Standard):JB/T 8734.2
	mm²					20ºC	70ºC
Type	Specification	Conductor Structure quantity/diameter	Lower limited diameter(mm)	Upper limited diameter(mm)	Uo/U(V)	(Ω/KM)	(MΩ/KM)
BVR	0.75	7/0.37	/	2.9	450/750	<=24.5	0.013
BVR	1	7/0.43	/	3.1	450/750	<=18.1	0.012
BVR	1.5	7/0.52	/	3.4	450/750	<=12.1	0.011
BVR	2.5	19/0.41	/	4.1	450/750	<=7.41	0.011
BVR	4	19/0.52	/	4.8	450/750	<=4.61	0.009
BVR	6	19/0.64	/	5.3	450/750	<=3.08	0.0084
BVR	10	49/0.52	/	7.3	450/750	<=1.83	0.0072
BVR	16	49/0.64	/	8.6	450/750	<=1.15	0.0062
BVR	25	98/0.58	/	10.2	450/750	<=0.727	0.0058
BVR	35	133/0.58	/	11.7	450/750	<=0.524	0.0052
BVR	50	133/0.69	/	13.9	450/750	<=0.387	0.0051
BVR	70	189/0.69	/	16	450/750	<=0.268	0.0045

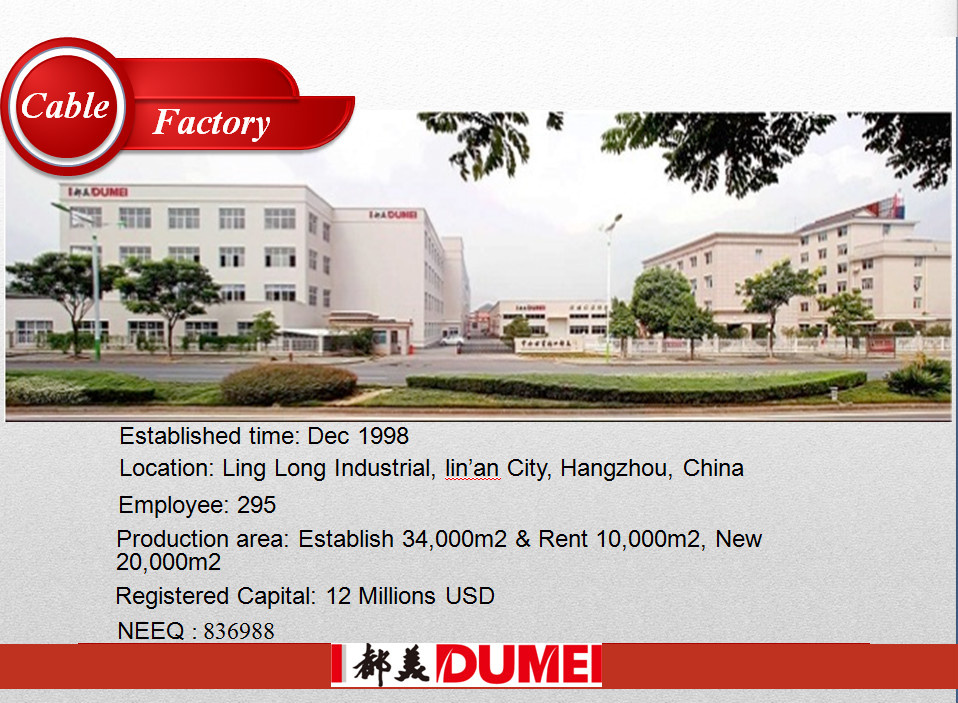

2\Cable Factory

3\Advanced Measurement Equipments

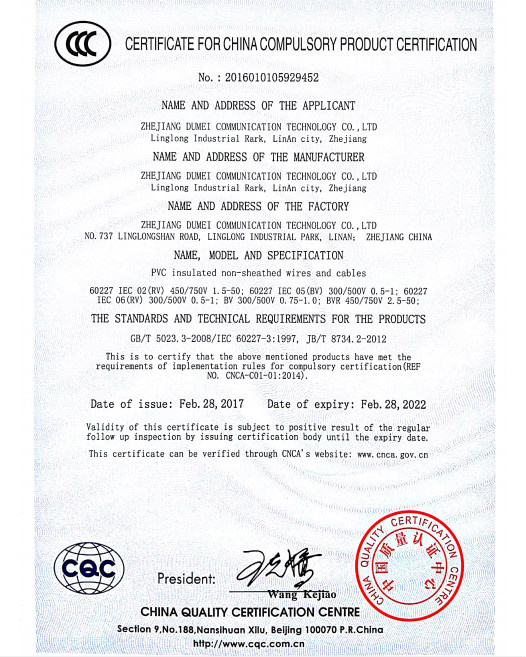

4\ Certifications

5\Contact now

Our company supplies different kinds of products. High quality and reasonable price. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect o UR service, we provide the products with good quality at the reasonable price.
