Factory Control Box Wire (RVV) Escalator and Elevator Cable

Name: Factory Control Box Wire (RVV) Escalator and Elevator Cable
Brand: all-electronics-online.com
SKU: 727904302
Availability: InStock
Rating: 4.6 (20 reviews)

Price:	Negotiable/Meter
Min Order:	20000/Meter
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	RVV
Conductor Type:	Solid
Conductor Material:	Copper
Insulation Material:	PVC
Certification:	3c
Type:	Control Box Wire
Application:	Elevator Escalator Cable
Brand:	Dumei or OEM

Product Description

1\ product describe

/
Fiexibie Control Cable(Escalator&Elevator)
60227 IEC 52(RVV),60227 IEC 53(RVV)
(Product Standard):GB/T 5023.5
	mm²					20ºC	70ºC
Type	Specification	Conductor Structure	Min. diameter(mm)	Max.diameter (mm)	Uo/U(V)	(Ω/KM)20ºC conductor DCR(Ω/KM)	(MΩ/KM)70ºC Min.insulation resistance
60227 IEC 52(RVV)	2×0.5	28/0.15	4.6	5.9	300/300	<=39	0.012
60227 IEC 52(RVV)	2×0.75	30/0.18	4.9	6.3	300/300	<=26	0.01
60227 IEC 52(RVV)	3×0.5	28/0.15	4.9	6.3	300/300	<=39	0.012
60227 IEC 52(RVV)	3×0.75	30/0.18	5.2	6.7	300/300	<=26	0.01
60227 IEC 53(RVV)	2×0.75	30/0.18	5.7	7.2	300/500	<=26	0.011
60227 IEC 53(RVV)	3×0.75	30/0.18	6	7.6	300/500	<=26	0.011
60227 IEC 53(RVV)	4×0.75	30/0.18	6.6	8.4	300/500	<=26	0.011
60227 IEC 53(RVV)	5×0.75	30/0.18	7.4	9.3	300/500	<=26	0.011
60227 IEC 53(RVV)	2×1	40/0.18	5.9	7.5	300/500	<=19.5	0.01
60227 IEC 53(RVV)	3×1	40/0.18	6.3	8	300/500	<=19.5	0.01
60227 IEC 53(RVV)	4×1	40/0.18	7.1	9	300/500	<=19.5	0.01
60227 IEC 53(RVV)	5×1	40/0.18	7.8	9.8	300/500	<=19.5	0.01
60227 IEC 53(RVV)	2×1.5	48/0.2	6.8	8.6	300/500	<=13.3	0.01
60227 IEC 53(RVV)	3×1.5	48/0.2	7.4	9.4	300/500	<=13.3	0.01
60227 IEC 53(RVV)	4×1.5	48/0.2	8.4	10.5	300/500	<=13.3	0.01
60227 IEC 53(RVV)	5×1.5	48/0.2	9.3	11.6	300/500	<=13.3	0.01
60227 IEC 53(RVV)	2×2.5	47/0.26	8.4	10.6	300/500	<=7.98	0.009
60227 IEC 53(RVV)	3×2.5	47/0.26	9.2	11.4	300/500	<=7.98	0.009
60227 IEC 53(RVV)	4×2.5	47/0.26	10.1	12.5	300/500	<=7.98	0.009
60227 IEC 53(RVV)	5×2.5	47/0.26	11.2	13.9	300/500	<=7.98	0.009

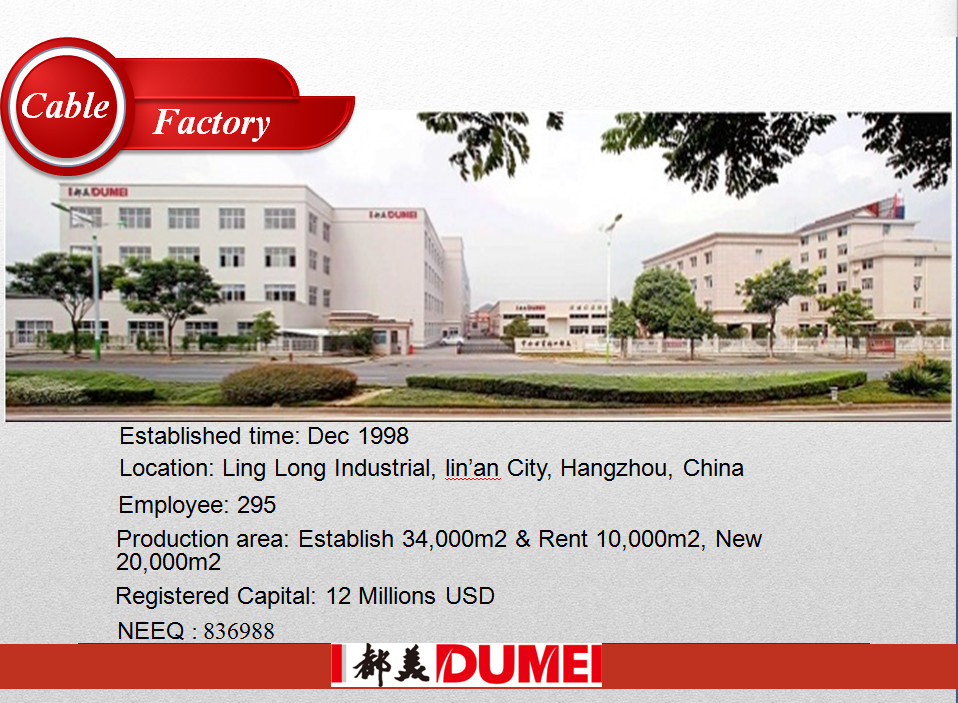

2\Cable Factory

3\Advanced Measurement Equipments

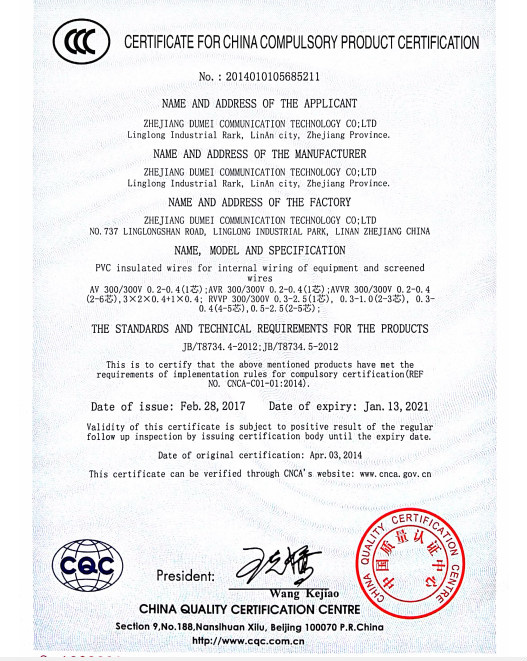

4\ Certifications

5\Contact now

Our company supplies different kinds of products. High quality and reasonable price. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect o UR service, we provide the products with good quality at the reasonable price.
