Name: Factory Power Cable Vvrp Escalator and Elevator Cable
Brand: all-electronics-online.com
SKU: 727964772
Availability: InStock
Rating: 4.6 (107 reviews)

Price:	Negotiable/Meter
Min Order:	20000/Meter
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	VVRP
Conductor Type:	Solid
Conductor Material:	Copper
Insulation Material:	PVC
Certification:	3c
Type:	Power Cable
Application:	Elevator Escalator Cable
Brand:	Dumei or OEM

Product Description

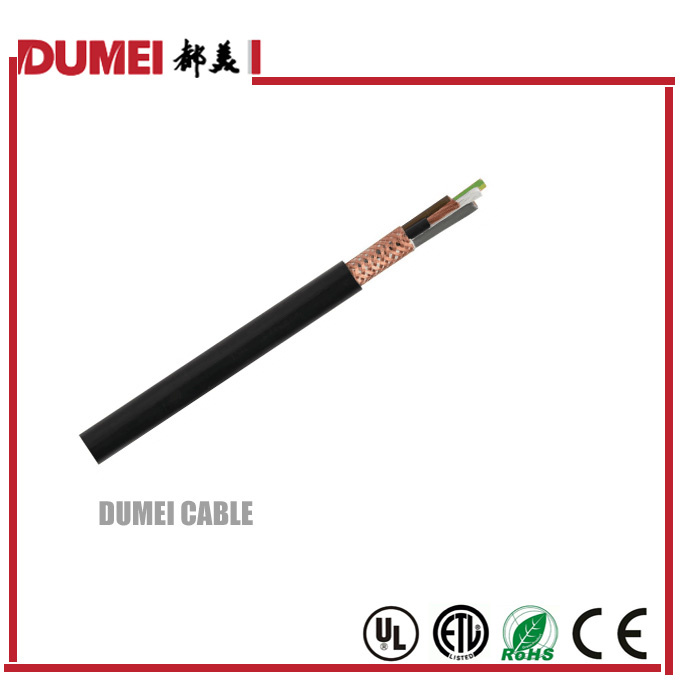

Factory Power Cable VVRP Escalator and Elevator cable

1\ product describe

/
Power Cable (Escalator&Elevator)
RVV,VVR,VVRP
(Product Standard):JB/T 8734.3
	mm²					20ºC	70ºC
Type	Specification	Conductor Structure	Min. diameter(mm)	Max.diameter (mm)	Uo/U(V)	(Ω/KM)20ºC conductor DCR(Ω/KM)	(MΩ/KM)70ºC Min.insulation resistance
RVV	2×6	112/0.26	12.5	14.5	300/500	<=3.3	0.008
RVV	2×10	78/0.4	14.1	17.3	300/500	<=1.91	0.0056
RVV	3×4	77/0.26	10.7	14	300/500	<=4.96	0.007
RVV	3×6	112/0.26	12	14.8	300/500	<=3.3	0.007
RVV	4×4	77/0.26	11.8	14.6	300/500	<=4.96	0.007
RVV	4×6	112/0.26	14	16	300/500	<=3.3	0.006
RVV	4×10	78/0.4	17.3	19	300/500	<=1.91	0.0056
RVV	5×4	77/0.26	13.3	16.5	300/500	<=4.96	0.007
RVV	5×6	112/0.26	15.3	17.5	300/500	<=3.3	0.006
RVV	7×6	112/0.26	16.5	20.1	300/500	<=3.3	0.006
RVV	7×10	78/0.4	20.7	25.5	300/500	<=1.91	0.0056
VVR	5×16	301/0.26	22	26.9	0.6/1KV	<=1.21	0.0046
VVR	7×4	77/0.26	15.5	19.4	0.6/1KV	<=4.96	0.007
VVR	7×6	112/0.26	17.5	21.4	0.6/1KV	<=3.3	0.006
VVR	7×10	78/0.4	21.9	26.8	0.6/1KV	<=1.91	0.0056
VVR	7×16	301/0.26	24.3	30.3	0.6/1KV	<=1.21	0.0046
VVR	3×6+1×4	112/0.26,77/0.26	14.4	17.6	0.6/1KV	<=3.3/4.96	0.006/0.007
VVR	3×10+1×6	78/0.4,112/0.26	16.9	20.7	0.6/1KV	<=1.91/3.3	0.0056/0.007
VVR	3×16+1×10	301/0.26,78/0.4	20.3	24.9	0.6/1KV	<=1.21/1.91	0.0046/0.0056
VVRP	2×4	77/0.26	11.7	14.3	0.6/1KV	<=4.96	0.007
VVRP	2×6	112/0.26	18.5	22.5	0.6/1KV	<=3.3	0.006
VVRP	3×4	77/0.26	12.2	15	0.6/1KV	<=4.96	0.007
VVRP	3×6	112/0.26	13.7	16.7	0.6/1KV	<=3.3	0.006
VVRP	3×10	78/0.4	16.6	20.2	0.6/1KV	<=1.91	0.0056
VVRP	4×4	77/0.26	13.5	15.6	0.6/1KV	<=4.96	0.007
VVRP	4×6	112/0.26	15	18.4	0.6/1KV	<=3.3	0.006
VVRP	4×10	78/0.4	18	22	0.6/1KV	<=1.91	0.0056
VVRP	4×16	301/0.26	20.7	25.3	0.6/1KV	<=1.21	0.0046
VVRP	5×6	112/0.26	16.3	20.1	0.6/1KV	<=3.3	0.006
VVRP	5×10	78/0.4	19.8	24.2	0.6/1KV	<=1.91	0.0056
VVRP	7×4	77/0.26	16	20	0.6/1KV	<=4.96	0.007
VVRP	7×6	112/0.26	18	22	0.6/1KV	<=3.3	0.006
VVRP	7×10	78/0.4	22	27	0.6/1KV	<=1.91	0.0056
VVRP	7×16	301/0.26	27.3	33.3	0.6/1KV	<=1.21	0.0046

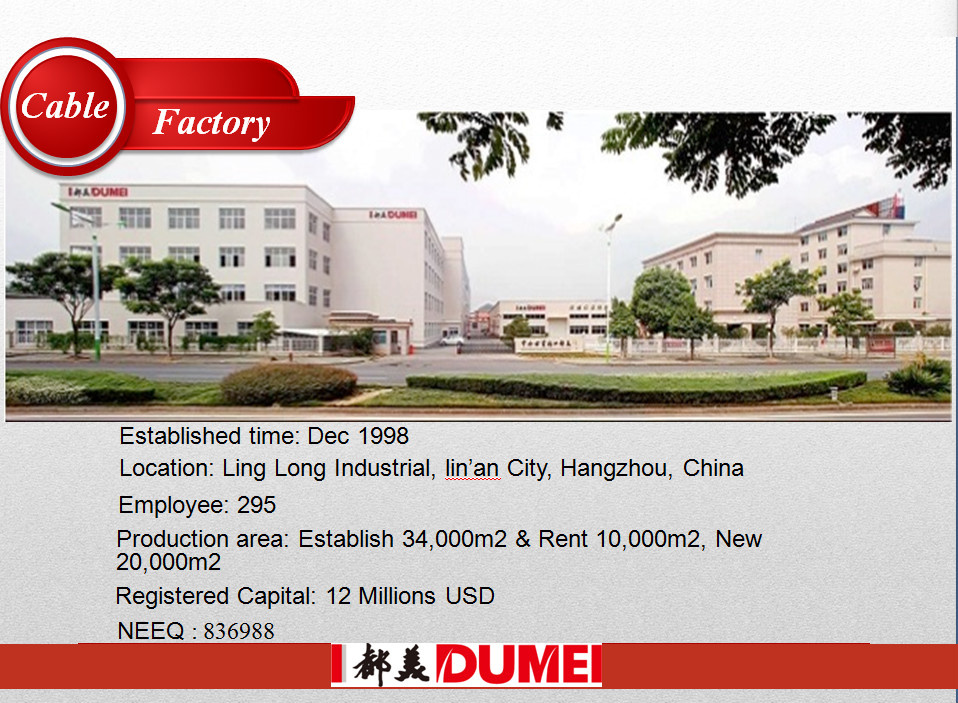

2\Cable Factory

3\Advanced Measurement Equipments

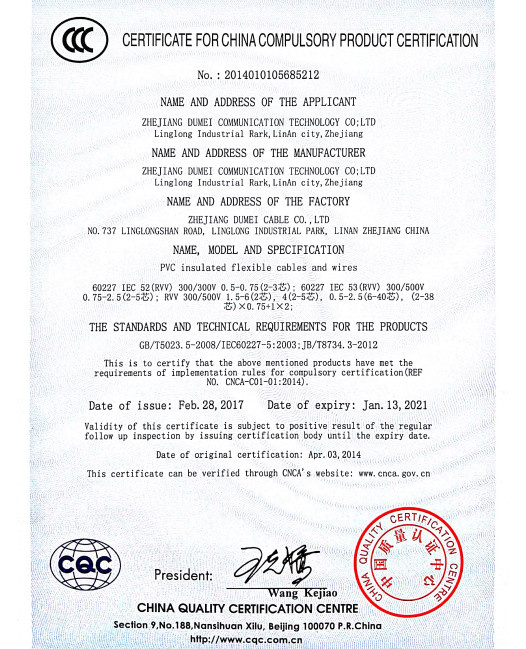

4\ Certifications

5\Contact now

Our company supplies different kinds of products. High quality and reasonable price. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect o UR service, we provide the products with good quality at the reasonable price.
