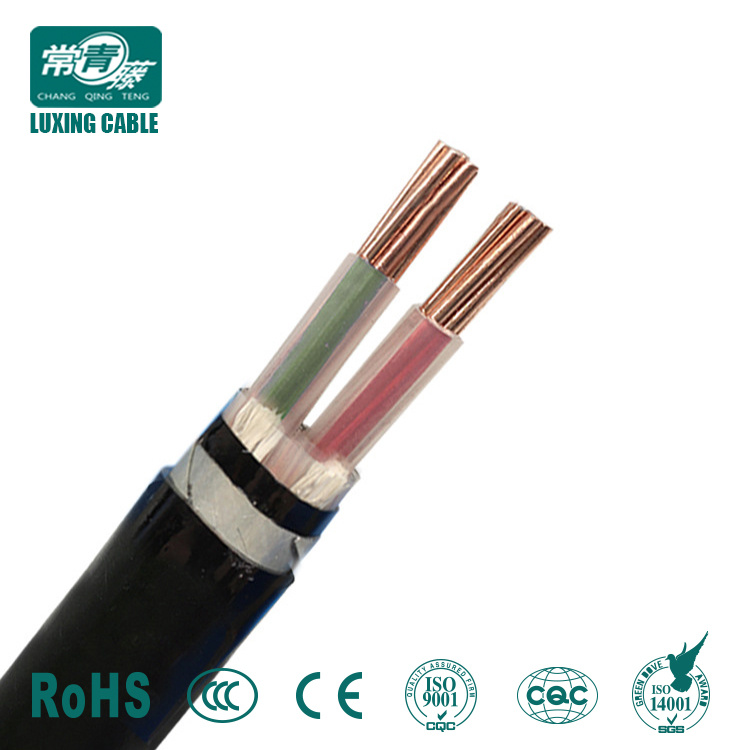

Factory Supply 2 Core 10mm2 LV Armoured XLPE Cable
| Price: |
US $ 0.1-5/Meter |
| Min Order: |
100/Meter |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
2 core 10mm2 lv armoured xlpe cable |
| Product Name: |
2 Core LV Armoured Cable |
| Rated Voltage: |
450/750V 0.6/1 Kv |
| Conductor: |
Copper |
| Insulation: |
PVC |
| Sheath: |
PVC |
| Core Color: |
Red Yellow Blue Green Black or as Your Requirement |
| Shield: |
Copper Wire / Copper Tape / Steel Tape |
| Packaging: |
Packed in Roll or Wooden Drum |
| Shipping: |
3-10 Working Days |
| MOQ: |
100 Meter |
| Voltage: |
Low and Medium Voltage Cable |
| Current: |
DC & AC |
| Insulation Material: |
PVC |
| Certification: |
VDE |
| Application: |
Instrument |
| Model: |
Various Control Cable |
| Brand: |
Chang Qing Teng |
Product Description
1. Construction:
Conductor: stranded aluminum
Insulation: Cross-linked polyethylene (XLPE) or Polyvinyl chloride (PVC)
Inner sheath: Polyvinyl chloride (PVC)
Amour: Steel tape armored(STA)
Sheath: Polyvinyl chloride (PVC)
Number of Cores & Nominal Cross-section
Number of Cores | 1 | 2 | 2+1 | 3 | 3+1 | 4 | 4+1 | 5 |
| Section Area(mm) | 4-400 | 2.5-300 | 2.5-300 | 2.5-300 | 4-300 | 2.5-300 | 4-300 | 2.5-300 |
2. Operating Features:
1)The maximum conductor operating temperature: 90°C
During short circuit (lasting less than 5 seconds) the maximum temperature of the cable conductor shall not be above 250°C
Environment temperature should be no lower than 0°C for laying the cable.
2)Bending Radius of the Cable:
Single Core Cable: Non Armored Cable 20D, Armored Cable 15D
Cores Cable: Non Armored Cable 15D, Armored Cable 12D.
Remarks: D means practical external diameter of the cable
3. Model and Name
China Type | Description | Application |
Cu | Al |
YJV | YJLV | XLPE insulation PVC sheath power cable (Cu/XLPE/PVC) | To be laid indoors, in tunnel, cable furrow or pipe, the cable couldn't bear mechanical force outside |
YJY | YJLY | XLPE insulation PE sheath power cable (Cu/XLPE/PE) |
YJV22 | YJLV22 | XLPE insulation, steel tape armor, PVC sheath power cable (Cu/XLPE/PVC/STA/PVC) | To be laid underground, the cable could bear certain mechanical force, but it couldn't bear great pulling force. |
YJV23 | YJLV23 | XLPE insulation, steel tape armor, PE sheath power cable (Cu/XLPE/PVC/STA/PE) |
YJV62 | YJLV62 | XLPE insulation, no magnetism steel tape armor, PE sheath power cable |
YJV32 | YJLV32 | XLPE insulation, thin steel-wire armor, PVC sheath power cable (Cu/XLPE/PVC/SWA/PVC) | Be applicable to the well, water inside and fall in the bad soil, the cable cans bear the equal dint outside the machine with pull the dint . |
YJV72 | YJLV72 | XLPE insulation, have no the magnetism thick steel-wire armor, PVC sheath power cable |
YJV42 | YJLV42 | XLPE insulation, thick steel-wire armor, PVC sheath power cable | Be applicable to the well, underwater with the bottom of sea, the cable cans bear the bigger pressure with lead to pull the dint. |
Company Information Our company-Shandong New Luxing Cable Co.,Ltd establish in the year of 1999 , so until now we have
been in this line for more than 18 years .at present ,we have 150 empoyees in total , and annual sales volume
is about 8 billion .our headquarter in Jinan City , the capital in shandong province . and our factory located in

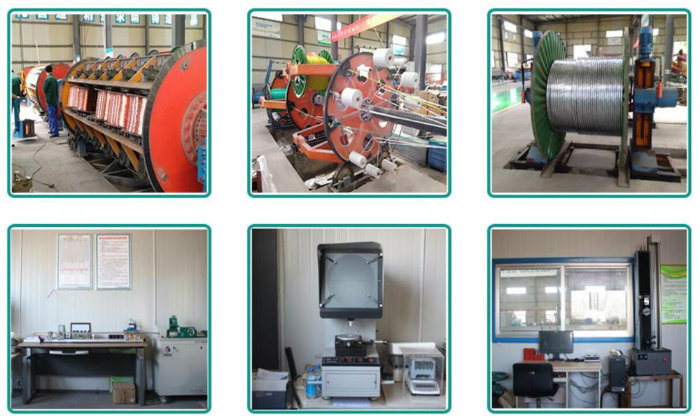

Dezhou City , Covering an area of more than 60 acres .Strict Quality Test ( Raw Material & Finished Cable )

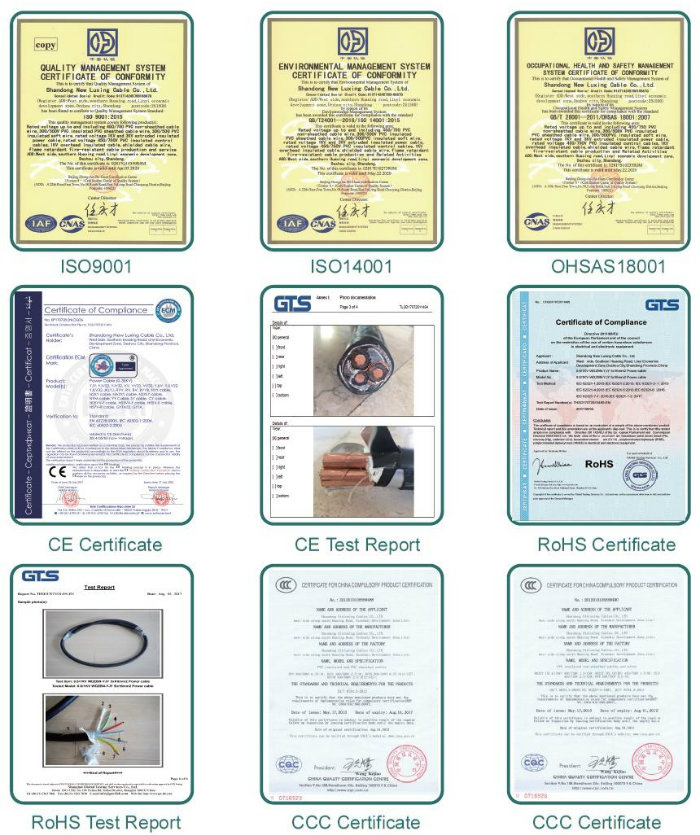

Certificates ( ISO CE CCC ROHS GB/T )

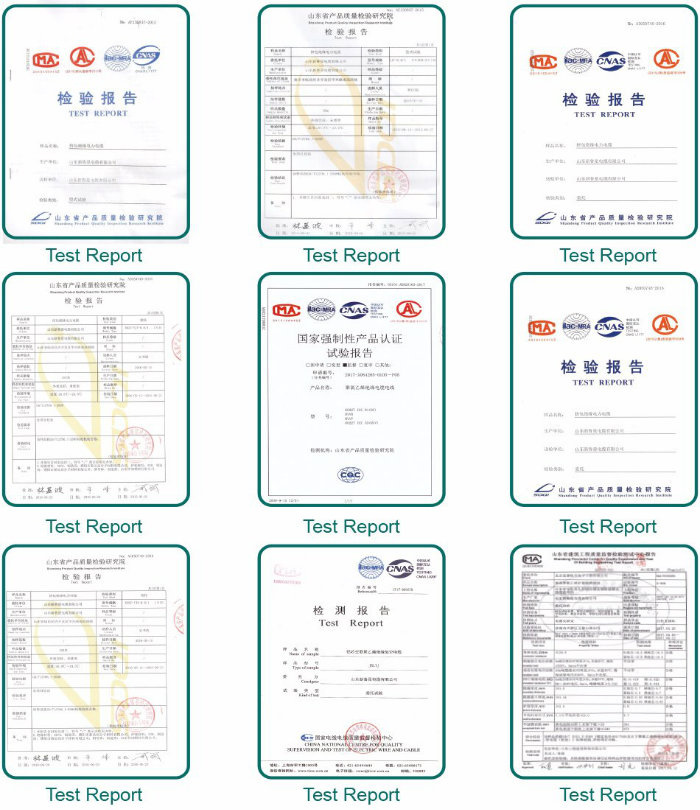

Type Test Report
We Mainly Produce the Following Products | 300/500V 450/750V electrical wire | AAC conductor |
| 600/1000V PVC insulated cable | AAAC conductor |
| 600/1000V XLPE insulated cable | ACSR conductor |
| 1.8/3KV to 26/35KV power cable | OPGW |
| Armored underground cable | ABC cable |
| Control cable and instrumentation cables | Rubber cable |

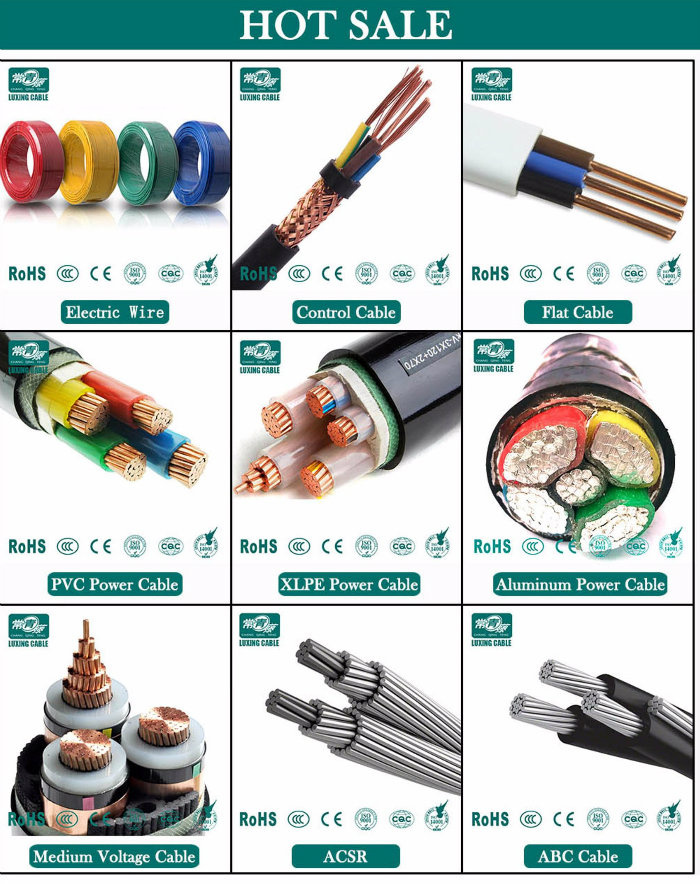

More Hot Sale Products for you to choose
Contact Information
1) About Luxing Cable Factory:
-Shandong New Luxing Cable Co., Ltd established in the year of 1999.
-The headquarter is located in Jinan City, the capital of Shandong province, China.
-Registered capital of USD16.5 million, Legal representative Wang Xiuzhen.
-Luxing Cable Factory is located in Linyi Economic Development ZoneCovering an area of more than 60 acres.
-Shandong New Luxing Cable Co., Ltd has more than 150 employees, which college degree more than 50 people.
2)Why Choose Luxing Cable Factory?
-Luxing cable, the designated supplier of China's national grid construction.
-We provid high-quality cables for our clients for more than 18 years.
-The professional, safe and reliable of Luxing factory gained great trust and praise from our customers.
-Serve you any time.
3)The Product of Luxing Cable Factory
-300/500V 450/750V electrical wire
-600/1000V PVC insulated cable
-600/1000V XLPE insulated cable
-1.8/3KV to 26/35KV power cable
-Armored underground cable
-Control cable and instrumentation cables
-ABC cable
-AAC conductor
-AAAC conductor
-ACSR conductor
-OPGW
-Rubber cable
4)Product application
-Used for open air installation, for direct burrial underground, in water, in cable ducts, power stations, for industry and distribution boards and so on.
-Power transmission and distribution project bids we can work, cable retail and wholesale, regional agent we can cooperate.
5)Production Market
-Supply power cables & electrical wire to
South America(Brazil...),
East Asia(Korea...),
Africa(Uganda, South Africa, Zimbabwe...),
Southeast Asia(Myanmar, Thailand, Indonesia, Philippines, Malaysia, Cambodia...),
Europe(Czech Republic...) to global market.
-Had fixed partnership with SGCC&STATE GRID CORPORATION OF China (China largest power enterprise) and many other our country State-owned big enterprise.
6)Our service
-We guarantee that we will comply with the requirements of warranty period specified in the contract, that the Goods supplied under the purchase order For Procurement of self-carrying distribution network's cable and wire.
-We will be manufactured under this specification and that the Goods will be new, unused, of the most recent or current models. Once we are selected, we will supply the Goods strictly according to the requirements of the Contract.
-The warranty shall remain valid for twelve (12) months after the Goods, or any portion thereof as the case maybe, have been delivered to and accepted at the final destination indicated in the SCC, or for eighteen (18) months after the date of shipment from the port or place of loading in the country of origin, whichever period concludes earlier.
-During the warranty period purchaser may proclaim directly to the manufacturer in the written form or by the agent if there is any problem in Goods quality. The manufacturer will do the repair or replacement in reasonable time, and will bear all the expenses relating to this.
