Factory Supply RG6 with Power Cable

Name: Factory Supply RG6 with Power Cable
Brand: all-electronics-online.com
SKU: 703475302
Availability: InStock
Rating: 4.8 (90 reviews)

Price:	US $ 5.2-5.6/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	30000/Meter
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	Factory Supply Rg6 With Power Cable
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Jacket:	PVC,PE
Jacket Color:	White, Gray, Black, Yellow, Brown, Red
Conductor Size:	28AWG, 26AWG, 24AWG, 23AWG, 22AWG
Delivery Detail:	2 Weeks for One Container
Spec:	Available on Request
Application:	Coaxial Cable
Conductor Material:	BC/CCS/CCA/TC/CU/CCAG
Cover Material:	PVC
Certification:	UL
Type:	Coaxial Cable
Brand:	DSC

Product Description

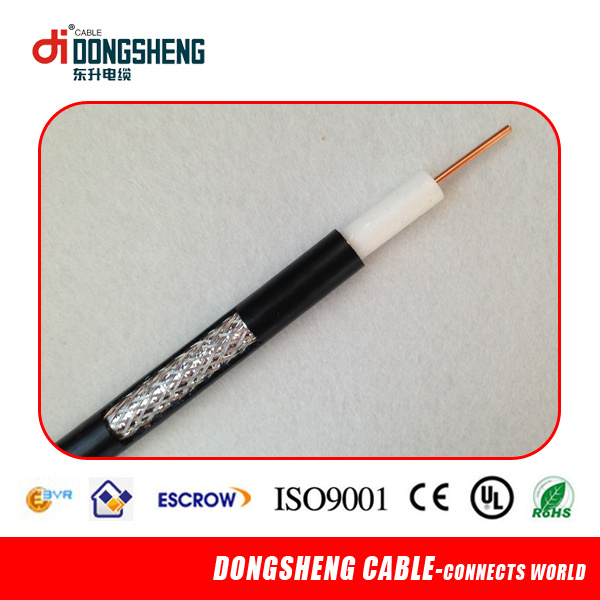

Factory Supply Rg6 With Power Cable

RG6 Coaxial Cable,RG6, RG6 Triple Cabo Coaxial,RG6 Quad Kabel, RG6 Steel Messenger Cable

Specification:

RG6 Tri Coaxial Cable-CATV/MATV/CCTV		TYPE:	RG6TSVM-35% or 95%
Construction
Item	Material			Diameter(mm)
Center Conductor	Copper Clad Steel/BC			1.02
Dielectric	Foam PE			4.57
1st Shield	Bonded Aluminum Foil Copper Foil			4.75
2nd Shield	Aluminum Wire Braid CCA Wire Braid BC Wire Braid TC Wire Braid			3×16×0.12 40% 4×16×0.16 60% 6×16×0.12 75% 7×16×0.16 95% 10×16×0.12 95%
3rd Shield	Aluminum Foil or			AL Foil
Jacket	PVC			7.06 ROHS,UV,UL,LSZH
Messenger	Galvanized Steel			1.30
Electrical Charateristics
Impedance(Ω)				75±3
Capacitance(pF/m)				52±2
Velocity of Propagation(%)				85.0
Shielding Effectiveness
5-1000MHZ(dB)				≥90%
Return Loss
5-1000MHZ(dB)				≥22
1000-2000MHZ(dB)				≥20

Attenuation @68°F.(20 ºC )

@Frequency(Mhz)	Max Attenuation(dB/100ft)	Max Attenuation(dB/100m)
5	0.58	1.90
55	1.60	5.25
187	2.85	9.35
211	3.05	10.00
400	4.15	13.61
500	4.66	15.29
750	5.65	18.54
865	6.10	20.01
1000	6.55	21.49
1500	8.20	26.80
1800	8.80	28.90
2200	9.80	32.20
3000	11.50	37.60

RG6 Coaxial Cable RG6 Products Photos and Package

1) Packing Lengths:100/roll,200m/roll,300m/roll,305m/roll, 500m woden reel, 1000m wooden reel
2) Inner Packing:Wooden reel,plastic reel,and paper reel
3) Outer Packing:Carton box,pull out box,pallet available
4) Other packing available according to clients' request

If you have any interest in our products,
Contact us any time,We'll answer you in the first time.

24 Hours Available

DSC Located at the city of Lin'an, Hangzhou, Hangzhou Lin'an Dongsheng Cable Co., Ltd. is 28km away from Hangzhou City, covering an area of 30000 square meters, with beautiful landscape and convenient communication facilities.

Since 1991, 24 year cable experience, our rapid development helps us to be the industry leader. Our company has passed ISO9001 quality system certification & UL certification, and had foreign trade license. Our company is on the top with comprehensive strength.

Main products in our company cover LAN Network Cables Cat5e CAT6 Cat3, Coaxial CCTV/CATV Cable RG6 RG59 RG11 RG59-2C QR500 RG58 RG213 LMR400 KX6 19VATC CT100 SAT703 ect. Telephone Cable, Alarm Cable and Cable Accessories
