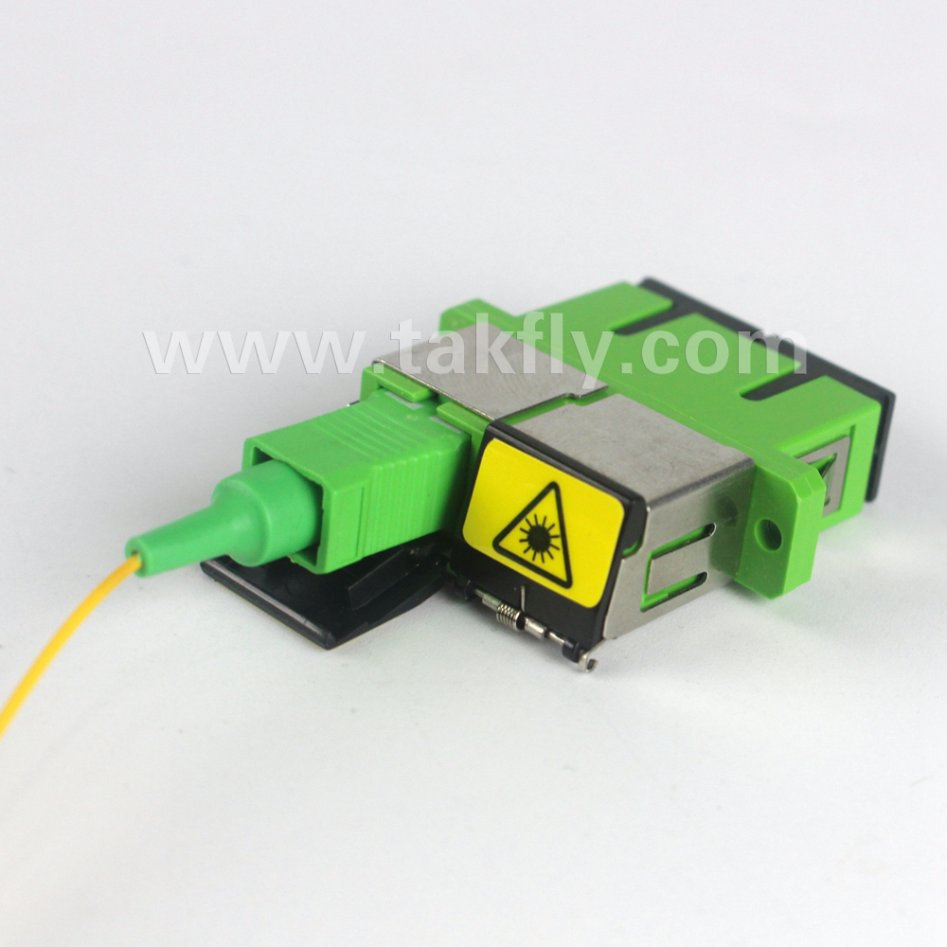

Fiber Optic Adapter Sc/APC with Shutter

Fiber Optic Adapter Sc/APC with Shutter
Price: US $ 0.5/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: Shutter Adapter
Urn Loss: PC >45dB APC>60dB
Cable Diameter: 0.9mm,2.0mm,3.0mm
Attenuation Value: -41 3 5 10 15 20 25dB
Operation Wavelenghth(Nm): 1310/1550nm
Lead Time: 5 Days
Color: Red,Green...
Warranty: 3 Years
Delivery Time: Within 3 Days
Transmission Medium: Single-Mode
Structure: SC
Number Of Cores: Single-Core
Ferrule Endface: APC

Product Description

 Fiber Optic Adapter Sc/APC with Shutter

Product Description

SC fiber optical adapters with shutter, which are competitive price and good performance.

Feature
1.Great repeatability and interchangeability.
2.Low insertion loss.
3.Hign reliability.
4.Compliant with IEC and Rohs standards.

Applications
1.Test equipment.
2.Connection of optical links in optical active devices
3.Jumper connection
4.Production and testing of optical devices
5.Optical fiber communication system,CATV
6.LANs and WANs
7.FTTx

SPECIFICATIONS

ITEMParameter
Single-modeMulti-mode
Adapter colorBlue,GreenBeige
Test wavelength1310nm, 1550nm850nm, 1300nm
Insertion Losstypical≤0.15dB,Max≤0.20dBtypical≤0.15dB,Max≤0.20dB
Repeatability≤0.10dB
Interchangeability≤0.20dB
Durability≤0.20dB Max change,500 mating
Adapter typeShow as drawing (page of 2~4)
ChannelsSimplex,Duplex,4channels
MaterialPlastic or metal
Sleeve materialCeramic(ZrO2) or Customized
Operating Temperature-20ºC to +70ºC
Storage Temperature-40ºC to +85ºC

Metal housingPlastic housingZirconia sleeve
PB sleeveSimplexDuplex
QuadplexSC/PCSC/APC

SPECIFICATIONS

Insertion Loss<0.20dB
Durability<0.20 dB typical change, 1000 matings
Operating Temperature-40 to + 85°C


ORDERING OPTIONS

Housing ColorHousing MaterialSleeve MaterialChannelApplicationFlange
BeigePlasticZirconiaSimplexSC/PCWith
BlueMetalPBDuplex QuadplexSC/APCWithout
