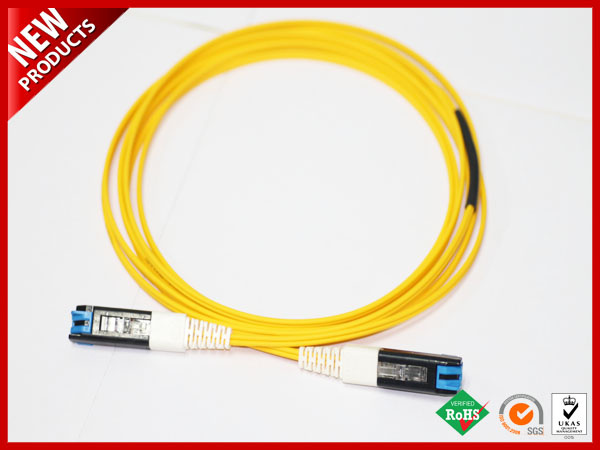

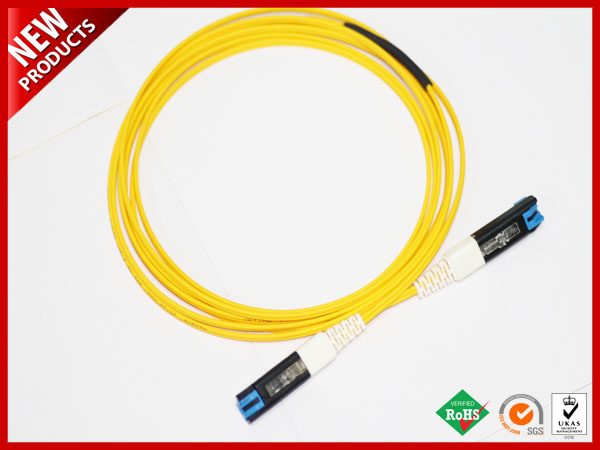

Fiber Optical Patch Singlemode Duplex VF45 Cable
| Price: |
US $ 60-70/Meter |
| Min Order: |
1/Meter |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
88748 |
| Fiber Type: |
SM |
| Cable Jacket: |
OFNP |
| Connector Type: |
MTP USCONE |
| Cable OD: |
3.0mm |
| Connector: |
VF45 |
| Cable Color: |
Yellow |
| Current Rating: |
1.5A max |
| Packaging: |
500 PCS |
| Type: |
Single-mode Fiber |
| Certification: |
CE |
| Connection Structure: |
MTP |
| Sheath Material: |
OFNP |
Product Description
Fiber Optical Patch Singlemode Duplex VF45 Cable
Item Description

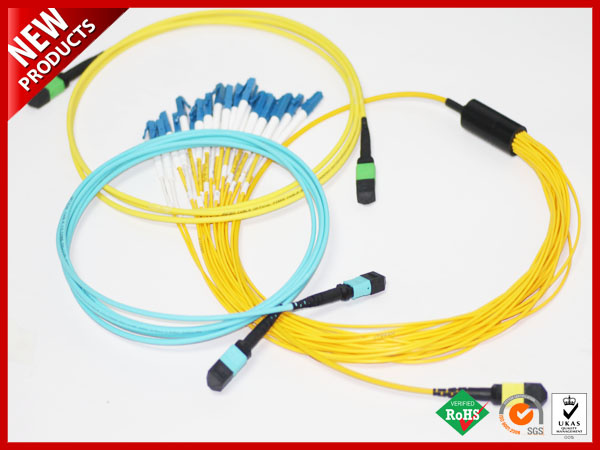

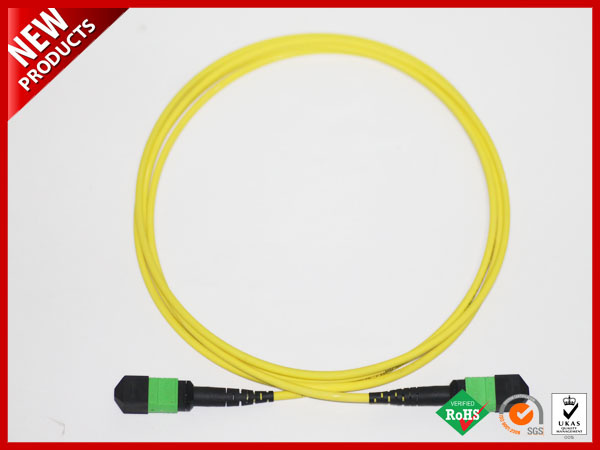

These cable assemblies are typically connectorized using 12-fiber micro-distribution cables (OM3 or OM4) and 12-fiber MPO connectors. MPO connectors can be offered with alignment pins (MALE) or no pins (FEMALE). In order to mate two MPO/MTP connectors together through an adapter, one connector must have male pins and the other must be without pins. Cables can be made as MPO-MPO patchcords or as MPO fanouts where one side of the cable assembly is terminated with an MPO connector while the other side has 12 individual single fiber connectors (LC, SC, FC, ST). The most common wiring scheme for a MPO-MPO patchcord is a straight through arrangement where fiber #1 from one connector is connected to fiber #1 on the other connector, fiber #2 to fiber #2, and so on. This wiring arrangement will produce a patchcord where one connector has its mating key UP and the opposite connector will have its mating key DOWN. This common arrangement is referred to as a "straight - key up, key down" MPO/MTP patchcord. Other wiring arrangements can be offered like "reversed", "pairs flipped", or any other per the desires of the customer.
Keyed Characteristics
• Available in White, Blue,Green,Yellow, Red & Black colours
• Robust and installer friendly design
• Exceeds Cat6 Performance
• Compatible with 22-24AWG Solid Cables
• Compatible to T568A, T568B wiring pattern
• RoHS Compliant
• UL Listed, UL/ETL verified for Channel
• ANSI/TIA-568-C.2 • ISO/IEC-11801, Class E
• Performance Characterized up to 600 MHz
Application
• Used in LAN working area, equipment, data communication, integrated wiring. (Mainly a modular device for managing front-end information points in the work area. After the front-end information point cable enters the work area, it is first wired into the module, and then the jumper is used to connect the module and the working equipment. Its application is sturdy and Easy to install, reduce installation and operating costs, easy to manage )
Product Batching
• Interoperability Requirements Interoperability with Connectors of the Same Standard Series
Benefits
ELECTRICAL CHARACTERISTICS| Voltage Rating | 72V dc max |
| Current Rating | 1.5A max |
| Contact Resistance | ≤ 1 m max per contacts |
| Insulation Resistance | 500M min @ 500Vdc |
| Propagation delay | 2.5ns Max @ 1-100 |
MHz.MECHANICAL CHARACTERISTICS | Plug retention force | >50N for 60s±5s |
| IDC Termination | 200 times minimum |
| Jack Contact Material | Phosphor bronze 50μ" gold over 100μ" nickel plating |
| Conductor Compatibility | 22-24AWG Solid Cable |
| Insertion/Extraction Life with Plug | 750 cycles minimum |
