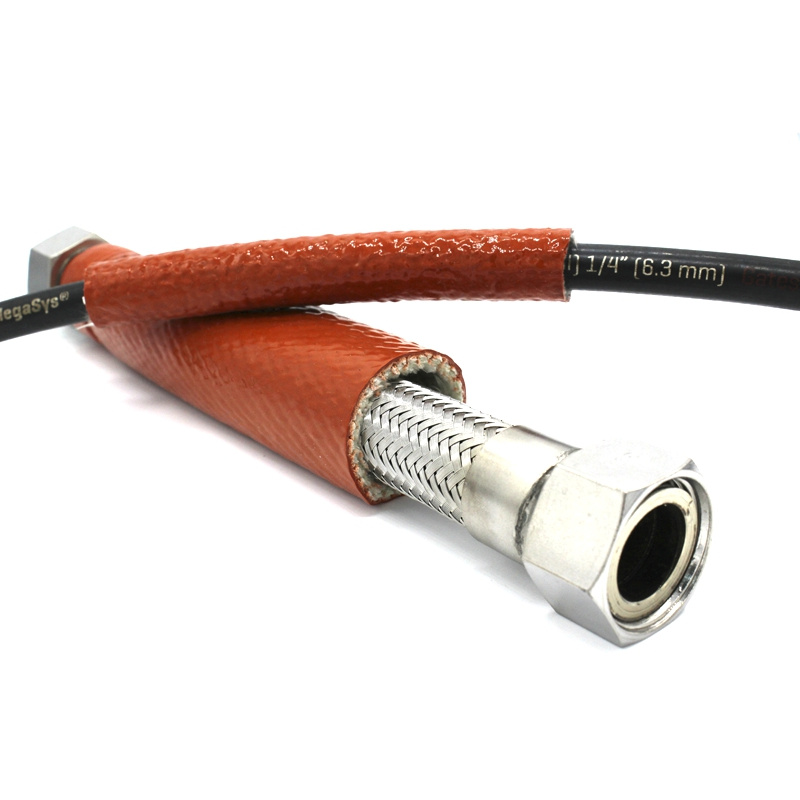

Fire Jacket Used to Protect Hose and Hose Assemblies

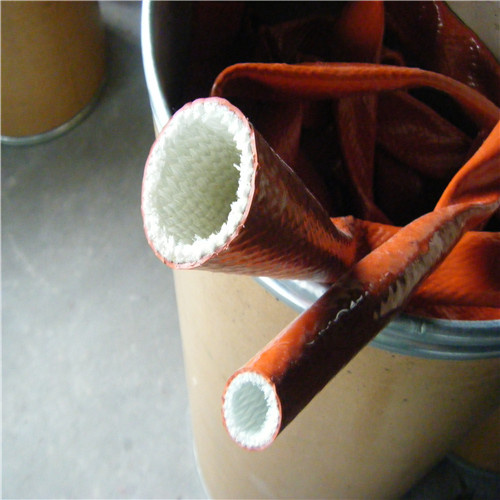

Constructed from a high bulk fiberglass sleeve heavily coated with iron oxide red silicone rubber

• Ideal for protecting hoses and cables in steel mills, aluminum smelting plants,
  offshore drilling rigs, foundries and glass manufacturing facilities
• Ability to shed molten metal splash and withstand intense radiant heat
• Excellent modulus of elasticity, allowing to easily stretch and expand over fittings and connectors
• Resistance to most industrial chemicals and hydraulic oils
• Reduces heat energy loss and environmental overheating
• Unlimited shelf life
• Pyrojacket's insulation properties allow it to provide effective burn protection for personnel from hot hoses and piping,
   while reducing costly heat energy losses.

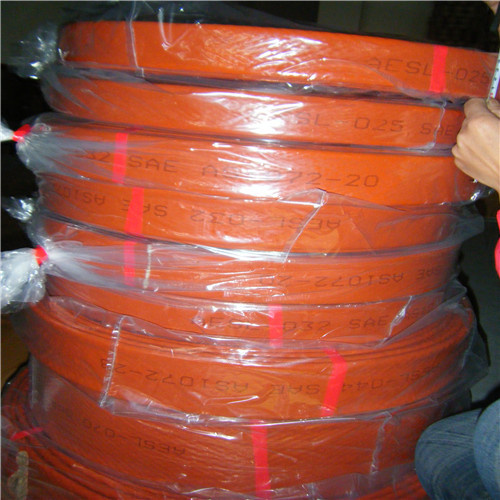

*100ft coils (30.5 metres) including packaging.    Other sizes available on request.
PYROJACKET AND PYRO TAPE PROPERTIES

Both Pyrojacket and Pyrotape retain their flexibility at minus 65°F (-54°C)
and they withstand 500°F (260°C) continuously, up to 2000°F (1090°C)
for 15-20 minutes. and up to 3000°F (1650°C) for 15-30 seconds.

K value in BTU/°F/hour/inch of thickness: 1.2

Flame resistance: U.S. Fed. Spec. CCT-191-B Method 5902-7 seconds
to extinguish with no after glow

Mullens burst strength: 800+ p.s.i.

Part #

PJ- 05

PJ- 06

PJ- 08

PJ- 12

PJ- 14

PJ- 16

PJ- 20

PJ- 22

PJ- 24

PJ- 26

PJ- 28

PJ- 32

PJ- 36

PJ- 40

PJ- 48

PJ- 60

PJ- 64

PJ- 72

I.D

5/16

3/8

1/2

3/4

7/8

1

1 1/4

1 3/8

1 1/2

1 5/8

1 3/4

2

2 1/4

2 1/2

3

3 3/4

4

4 1/2

Weight (lbs.)*

8

10

13

17

18

21

26

30

34

35

36

40

43

46

58

74

77

82

*100ft coils (30.5 metres) including packaging.

Other sizes available on request.

Oil and fluid resistance: remains functional after 120 hours at 80°F (25°C) in
MIL-L-6082 and Skydrol 500

Abrasion resistance: Wyzenbeck 9,500 cycles: 3-1/3 lb pressure, tension 6 lbs,
using fine emery cloth



Ordering Information

Standard Colour: Red iron oxide

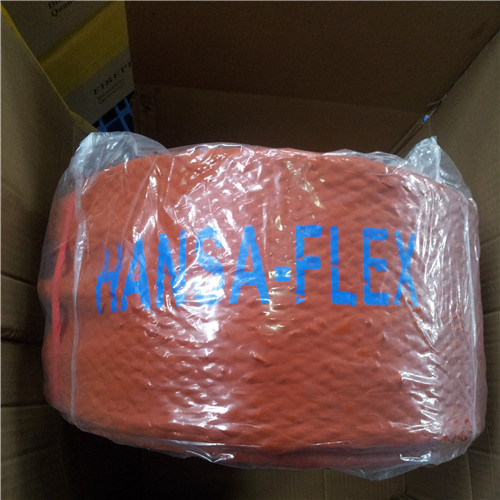

Standard packaging: Spools only, for MOQ please contact us
