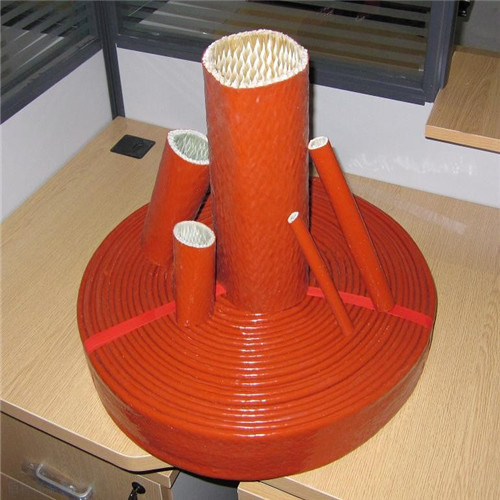

Fire Sleeve with Hook & Loop Tapes
| Price: |
US $ 2.68/Meter |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
100/Meter |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
FVT-168 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
3~152mm |
| Continuous Protection: |
500°f (260°c) |
| Short Term Exposure: |
2220°f (1204°c) |
| Molten Splash Resistance: |
Excellent |
| Dielectric Strength: |
NEMA TF-1 Dielectric Grade a |
| Application: |
Steel Factory |
| Type: |
Insulation Sleeve |
| Chemistry: |
Hybrid Insulation |
| Material: |
Silicone |
| Thermal Rating: |
250 250 |
| Maximum Voltage: |
10KV~20KV |
| Color: |
Red |
| Brand: |
Hong Tai |
Product Description
Braid high bulk glass fiber sleeve and extrude flexibility Silicone Rubber can withstand repeated exposures to molten steel, molten aluminum and molten glass up to 3000°F (1650°C). The heavy coating of our proprietary iron oxide red silicone rubber compound sheds molten metal splash immediately, so very little heat transfer occurs. When exposed to flames, the silicone rubber transforms into a crust, creating a protective SiO2 refractory layer.Excellent modulus of elasticity makes it an ideal choice for bundling hoses, tubes and cables in a variety of hostile environments.| Inner Diameter(mm) | Tolerance(mm) | Wall thickness(mm) | Meters/roll |
| 10-28 | ±0.5 | 3.2±0.2 | 10 mts. |
| 30-50 | ±0.8 | 3.2±0.2 | 10 mts. |
| 55-100 | ±1.0 | 3.2±0.2 | 10 mts. |
| 108-133 | ±1.0 | 3.2±0.2 | 10 mts. |
Breakdown Voltage: when Normal Condition alternating current 50HZ, can reach 10,000~12,000 Volts,so it has good dielectric strength.Colour:Brick red.Guard against fraying and absorption
This special formulation of liquid silicone rubber prevents fraying and the absorption of flammable oils or other contaminants into exposed glass fibers. |
| Hongtai Insulation Glassfiber sleeve - Quick Facts |
| Sizes up 3/8"(10 mm) to 5" (127 mm) diameter. |
| Continuous operating temp: | 500°F (260°C) |
| Max short term exposure: | 3000°F (1650°C) |
| Molten splash resistance: | Outstanding |
| Flame resistance: | Very good |
| Abrasion resistance: | Very good |
| Flexibility: | Outstanding |
| Water and oil resistance: | Outstanding |

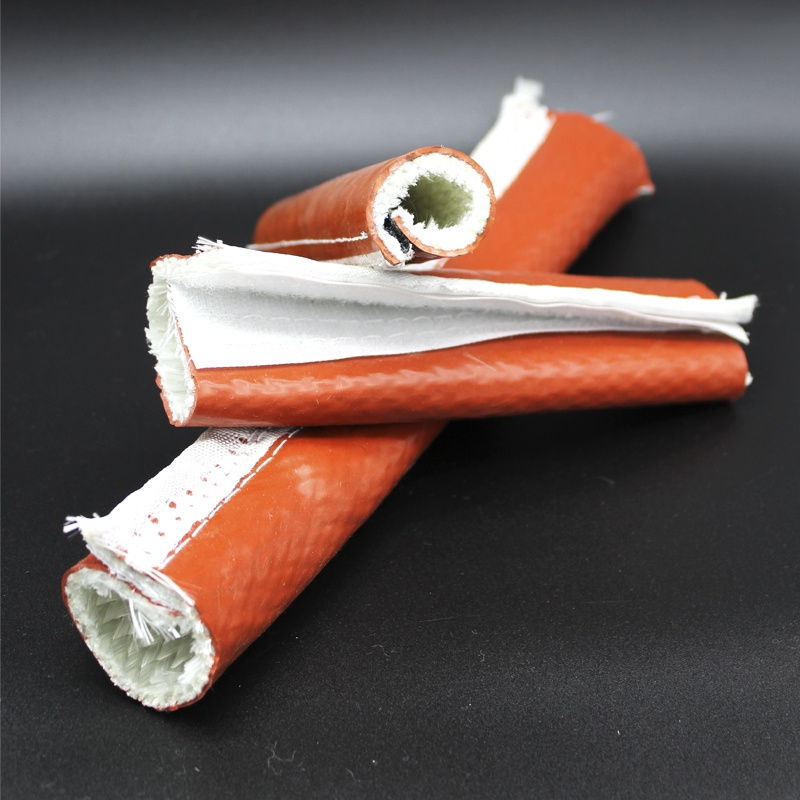

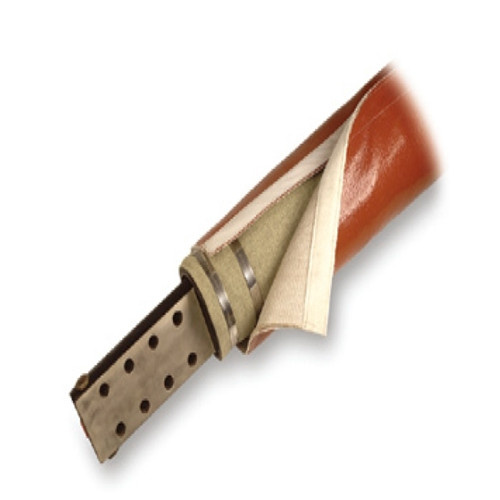

Firesleeve VC is the perfect choice for protecting hydraulic hoses and lines, pneumatic lines, fuel & oil lines, brake lines, wires and cables from exposure to high and extreme heat conditions. The extra thick special formulation of silicone rubber sheds molten metals, slag, welding splatter, electrical or grinding sparks and contamination. Silco Shield VC also provides protection from ozone, UV and abrasion.The standard colour is red-oxide.We take our heavy duty braided substrate firesleeve and add hook and loop to result in a firesleeve than can be easily installed on long hose or cable runs, or on hose and cables that cannot be detached from their installation. This retrofit solution allows the sleeve to be added, or replaced conveniently - this makes for an easy to use Electic Arc Furnace cable cover (EAF cable cover).
The smallest standard I.D. is 1" and the largest standard I.D. is 12". Larger I.D.s are possible by fabricating multiple fabric widths together, with an almost limitless I.D. size being the result. Firesleeve with Hook & Loop uses 3/4" wide Hook & Loop on IDs from 1" through 3 3/4" and 2" wide Hook & Loop on 4" through 12" I.D. fabrications.Withstands Molten Splash & Welding Splatter. Withstands 500°F / 260°C continuous exposure;
2200°F / 1205°C for periods up to 15 minutes and short flash excursions to 3000°F / 1650°C.
Anji Hongtai Insulation Co., Ltd. Specializes in manufacturing insulation braiding sleeving with the production capacity of 5 containers monthly. We have 3, 000 sets of braiding machines and 4 coating product lines.
Our main products are fiberglass sleeving coated silicone rubber and other products including acrylic fiberglass sleeving, PU fiberglass sleeving, HT fiberglass sleeving, heat & flame resistant braided fiberglass sleeve, ceramic-fiber sleeving, carbon fiber sleeving, basaltic fiber sleeving and fire sleeve. Our products are mainly exported to Occident and Southeast Asian developed countries, such as Japan. Our company has been experienced in export for ages.
Now our company has passed the evaluation of the USA BQR ISO9001: 2000 International Quality System Certification and the USA production safety authentication (UL NO.: E467660), and we have also obtained SGS' CTS and PFOS certifications.
We are ABB, GE, HANSAFLEX Packer's gold Supplier.
We have export fiber glass sleeving and fire sleeve Europe and USA 18 years.
