Flexible SGS Fiberglass Sleeving

Name: Flexible SGS Fiberglass Sleeving
Brand: all-electronics-online.com
SKU: 783506005
Availability: InStock
Rating: 4.4 (87 reviews)

Price:	US $ 0.042/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Meter
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	SRG-514
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Flame Propagation:	8 Sec
Size:	From 1mm to 50mm
Low Temperature:	-50c
Application:	Switch Baseplate
Type:	Insulation Sleeve
Chemistry:	Hybrid Insulation
Material:	Fiberglass
Thermal Rating:	200 200
Maximum Voltage:	<10KV
Brand:	Hong Tai

Product Description

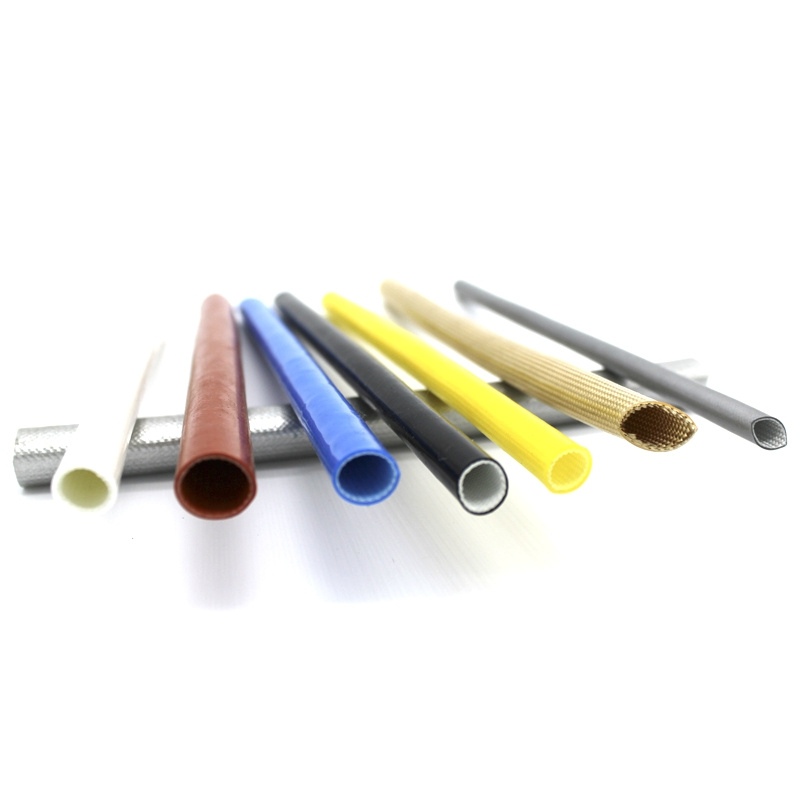

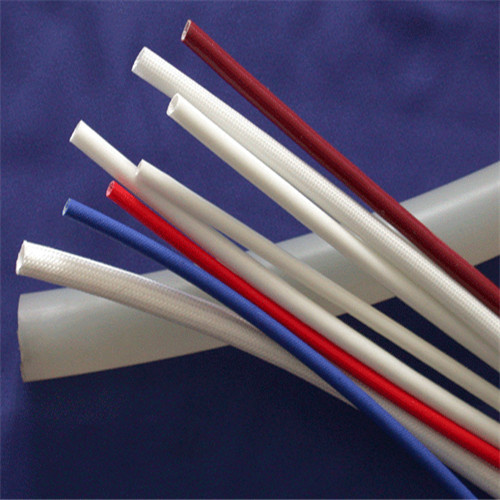

2753 is an electrical insulating sleeving produced with a thermal process. Inner is braided polyester fiber and impregnated with silicone resin;it is available in four standard voltage: 2753.1500 Volt -2753.2500 Volt -2753.4000 Volt -2753.7000 Volt..The thermal treatment and the spcial resin used for this item give this material a very good softness and elasticity, excellent high temperature resistance and good dielectric strength.
Size:

Inside Diameter	Tolerance on Diameter	Wall thickness 2753.1500V C2	Wall thickness 2753.2500V C1	Wall thickness 2753. 4000V B	Wall thickness 2753.7000V A
0.5 to 3.5	+0.3-0	0.32±0.12	0.36±0.15	0.45±0.15	0.50±0.15
4.0 to 9.0	+0.3-0	0.45±0.15	0.46±0.15	0.48±0.15	0.53±0.15
10 to 12	+0.5-0	0.50±0.20	0.52±0.20	0.58±0.20	0.58±0.20
14 to 16	+0.5-0	0.50±0.20	0.52±0.20	0.58±0.20	0.68±0.20
18 to 30	+0.8-0	0.70±0.25	0.72±0.25	0.78±0.25	1.20±0.30

Main properties:

Properties	Results
After heating	No cracking or detachment of the coating after 8 hours at 220ºC.
Low temperature	No cracking or detachment of the coating after 60 minutes at -50ºC.
Flame propagation	Max 10 sec(According to UL VW-1).

Thermal Class: Grade H(200ºC-30ºC) random peaks of 225ºC.
Breakdown voltage: According to UL 1441 VW-1.

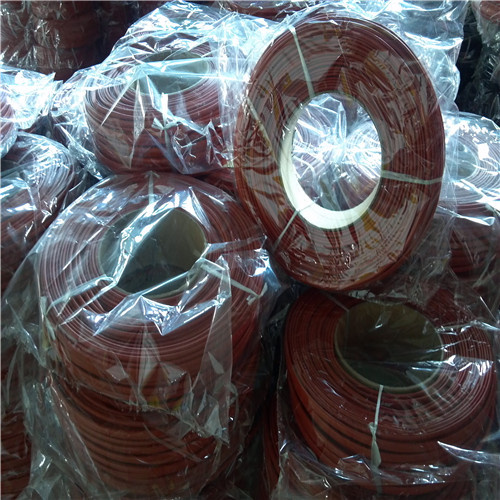

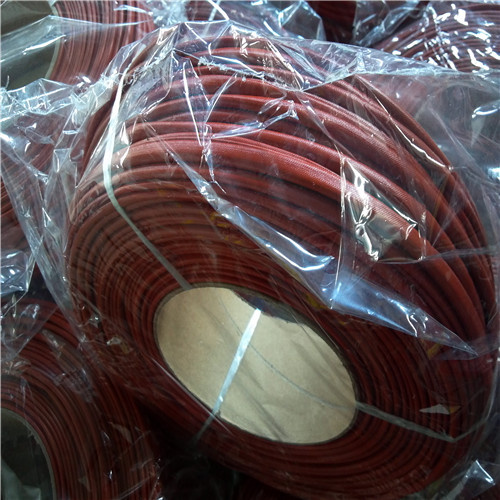

Packaging: from mm.0.5 up to mm.4     200 meters rolls;
          from mm.5 up to mm.16     100 meters rolls;
          from mm.18 up to mm.30     50 meters rolls;
Colour:Black. (other colours on request)

Anji Hongtai Insulation Co., Ltd. Specializes in manufacturing insulation braiding sleeving with the production capacity of 5 containers monthly. We have 3, 000 sets of braiding machines and 4 coating product lines.

Our main products are fiberglass sleeving coated silicone rubber and other products including acrylic fiberglass sleeving, PU fiberglass sleeving, HT fiberglass sleeving, heat & flame resistant braided fiberglass sleeve, ceramic-fiber sleeving, carbon fiber sleeving, basaltic fiber sleeving and fire sleeve. Our products are mainly exported to Occident and Southeast Asian developed countries, such as Japan. Our company has been experienced in export for ages.

Now our company has passed the evaluation of the USA BQR ISO9001: 2000 International Quality System Certification and the USA production safety authentication (UL NO.: E467660), and we have also obtained SGS' CTS and PFOS certifications.

We are ABB, GE, HANSAFLEX Packer's gold Supplier.

We have export fiber glass sleeving and fire sleeve Europe and USA 18 years.
