Flanged-Mounted Differential Pressure Transmitter (A+E-960CD)
| Price: |
US $ 300/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
A+E-960CD |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Item: |
Differential Pressure Transmitter |
| Output: |
4-20mA |
| Sensor: |
Capacitive |
| Supply Voltage: |
24VDC |
| Load Resistance: |
< 570 Ohm |
| Material: |
Ss316L |
| Measuring Medium: |
Liquid, Gas, Steam |
| Certification: |
ISO, SGS |
Product Description

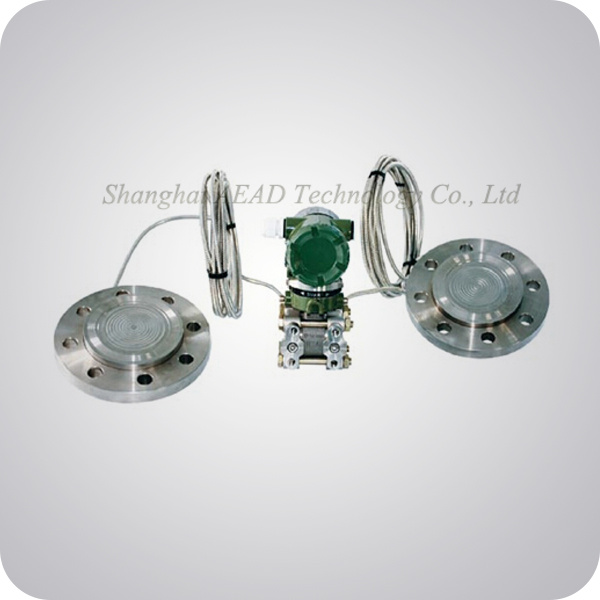

Flanged-Mounted Differential Pressure Transmitter (A+E-960CD)
The seal diaphragm pressure transmitter is used for preventing media in the pipe from directly entering into the sensor module of the pressure transmitter, and it is connected to the pressure transmitter through capillary tubes filled with fluids.
This pressure transmitter is used to measure the liquid, gas and steam's pressure, then output the 4~20mA DC signal corresponding with the pressure.
As they can communicate with HART system, it can complete remote setting and surveillance.| Model | Specification codes | Descriptions |
| A+E-960CD | | Diaphragm-sealed Differential Pressure Transmitter |
| MeasuringRange | 4
5 | 0-10~40kPa
0-40~200kPa |
| Output Signal: |
| S | 4~20mA, HART protocol digital communication |
| Flange size | D
E
F | 2-inch(DN50)
3-inch(DN80)
4-inch(DN100) |
| Wetted material: | S
H
T | SUS 316 (Note 1)
Hastelloy C-276
Tantalum |
| Protruded Length of Diaphragm | 2
4
6 | 50mm
100mm
150mm (Special tailored size) |
| Infusion | A
B
C
D
E | General type (silicone oil) -10~250 degree
General type (silicone oil) -30~180 degree
High-temperature type (silicone oil) 10~300 degree
Low-temperature type (silicone oil) -50~100 degree
Oil-free type (fluorocarbon oil) -20~120 degree |
| Capillary tube length(m) | | The stipulated capillary tubes length is 1~10m (For example: 2m:02) |
| Display Header | D
E
N | Digital header
Digital header with setting button,
No header |
Interfaces | 1
2
3 | M20×1.5 internal thread
G1/2NPT internal thread
1/2NPT internal thread |
Installation Bracket | B1
B2
B3 | Pipe bended mounting plate
Board bended mounting tubes;
Pipe flat mounting plate |
| Anti-explosion | d
i | Flame-proof type dIIBT4
Intrinsic safety type ia II CT 6 |
Shanghai AEAD Technology Co., Ltd is a cooperation of Chinese and German technique which mainly performs in R&D, production and sales.
AEAD Technology was first founded in 2009 in Jiangsu, and established Shanghai Branch in May 18th, 2014. The new Shanghai factory would complete in DEC 2014, located in the Free Trade Zone. Before the business started in 2009, the General Manager Mr. R. H. Liu and Technical Director Mr. S. P. Zong had dedicated in instrumentation for more than 20 years. After 5 years development and achieving good reputation in domestic market, we become a leading manufacture in East China. Now we believe we are ready to overseas users.
The company adopts advanced production line from Germany, and the main products include A+E series products for exporting and A+D products for domestic sales in pressure, temperature, flow, level, calibration and valve which can cater for the needs from domestic and foreign markets. Products are organized and sold under fully dedicated divisions, each staffed with an experienced and highly trained team of dedicated technical sales, applications engineering and customer service support personnel. Products are applied to water treatment, petrochemical, chemicals, machinery, pharmacy, food, mine, metallurgy, etc.
AEAD Technology adheres to the development strategy of Internationalization, Technicalization, Industrialization, which can realize the high-end extension of the products from domestic market to international market. The value chain turns from providing single product to system solution, and the operation expands from linear-oriented to a comprehensive modern enterprise operation including merger and capital operation.
The company has already passed the ISO9001 Quality Management System Certification, ISO14001 Environmental System Certification, and Occupation Health Safety Management System Certification (OHSAS18000).
