Jiangyin Senphus Electrical Material Co., Ltd. >> Flexible Silicone Wire/Cable

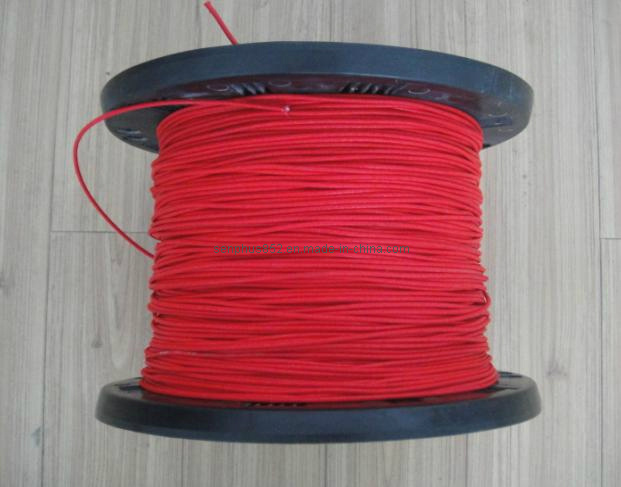

Flexible Silicone Wire/Cable

Flexible Silicone Wire/Cable
Price: Negotiable/Meter
Trade Terms: FOB,CFR,CIF
Min Order: 500/Meter
Pay Type: L/C,T/T,Western Union,Paypal,Money Gram
Prod Model: SH-SR
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Resistance: 1~10000ohm/M
Color: Red, White, etc
Diameter: 2.5mm+/-0.15mm
Certificate: UL3590 UL3081 UL3066 UL3589 UL3219 UL3342 UL3077
Reated Temperature: 150~200oc
Reated Voltage: 300V~600V
Type: Insulated
Application: Heating
Insulation Material: Silicone Rubber
Certification: RoHS
Conductor Type: Solid or Stranded
Conductor Material: CuNi, Nicr
Sheath Material: Silicone Rubber
Range Of Application: Heating
Brand: Senphus

Product Description

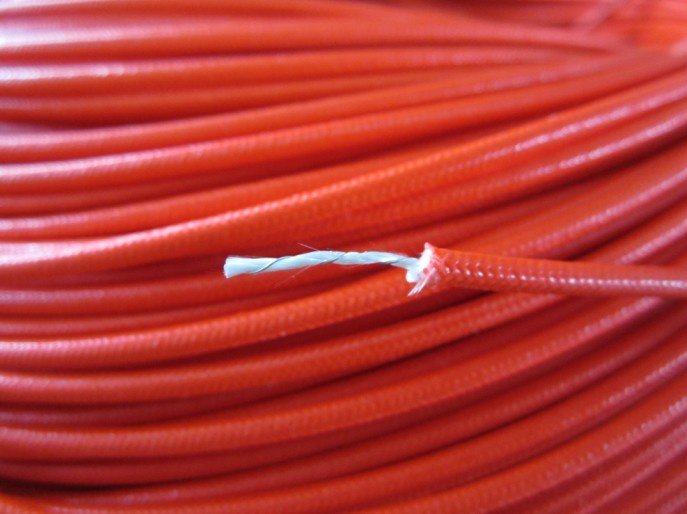

flexible Silicone rubber wire:

Wire conductor: CuNi, NiCr, Tin-copper wires, etc
Insulation: Silicone rubber
Jacket: Fiberglass braided(option)
Diameter: 2.5mm or customize

heating wire structure: single or twin or three conductor
resistance: 1~10000ohm/m
UL: UL3590 UL3081 UL3066 Ul3589 Ul3219 Ul3342 Ul3077


External Diameter2mm to 4mm2mm to 6mm
Heating Coil Circling Skelton0.5mm to 1.5mm
Heating CoilNichrome or CuNi Wire
Insulating Layer105oCPVCSilicon Rubber
ToleranceDC Resistance Value: ± 5%    External Diameter: +0.2/-0.1mm
Output PowerTo 15W/mTo 40W/m
VoltageHighest 600V
Maximum Surface Temperature105oC200oC
Minimum Surface Temperature-30oC-70oC



Jiangyin Senphus Electrical Material Co., Ltd is a new Hi-tech enterprise of heating alloy, heating cable/mat, heating wire, silicone rubber heater, drum silicone rubber heater, thermostat, which is engaging in R&D, manufacture and sale.

We have our own alloy smelting factory, possessing first-class production and advanced research facilities, so that we guarantee the top quality of our products. We have already passed ISO9001 quality management system and achieved the examination report of National Center for quality Supervision & Test of Electric Wire & Cable, and gained the European Union CE certification, UL certificate, GS Certificate, electromagnetic radiation certification, SGS and REACH certification.

Heating cable/wire and temperature controller system are widely used in wind power blades, construction heating, pipeline heating, outdoor snow melting, soil heating field and so on. Silicone rubber heater are widely used in electrical household appliance, spaceflight, petroleum, metallurgy, military project, chemical, electric power, medical appliance, mechanism, outdoor communication, automobile, etc. Industry.

Our products have been exported to America and Europe, Africa, Southeast Asia, like USA, Canada, England, France, Holand, Poland, Peru, South Africa, Italy, Greece, Thailand, India, Hongkong, etc. More than thirty countries and areas.

Our company always persist in"reputation first, quality high and customers supreme" management ideal. We will use great products, competitive price, professional service to cooperate with you and gain win-win!

OEM is welcome! !
