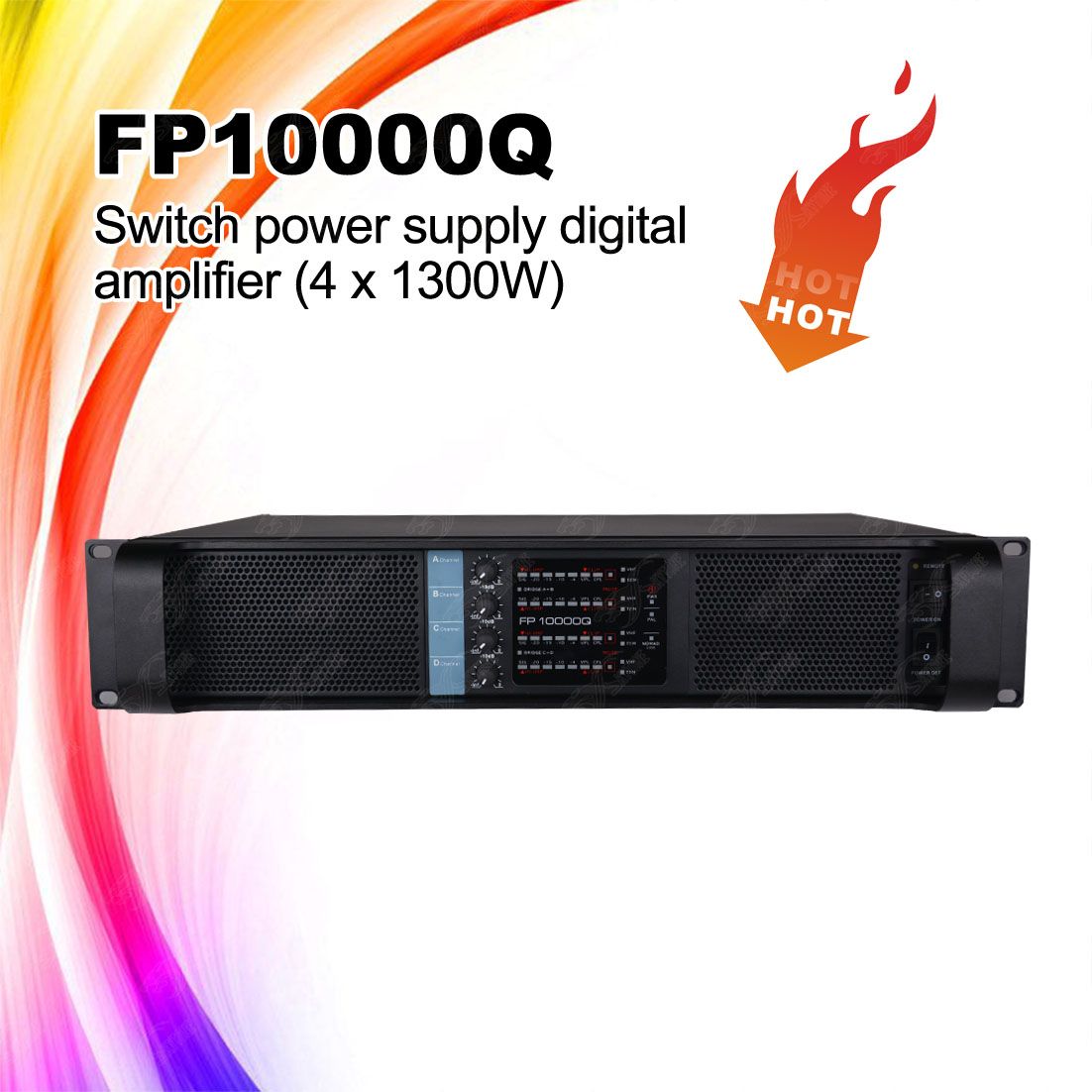

Fp10000q 4 Channels Line Array Professional Extreme High Power Amplifier

Name: Fp10000q 4 Channels Line Array Professional Extreme High Power Amplifier
Brand: all-electronics-online.com
SKU: 786360545
Availability: InStock
Rating: 5 (65 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	2/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	FP10000Q
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model Number:	Fp10000q
System Type:	4 Channels Switch Power Supply
Frequency Response (±3 DB):	20 Hz - 20 kHz
Power Rating:	1300W X4 at 8 Ohms
Channel:	4 Channels
Max Output Power(8ohm):	1300W X 4
Net Weight:	14kg
Color:	Black
458 Software Link:	with
Dimensions:	483(W)× 396(D)× 88(H)mm
Type:	Professional Amplifier
Used For:	Professional
Tube Type:	Transistor Amplifier
Output Number:	4
Conductive Mode:	D
Function:	Switch Power Supply Amplifier
Voltage:	220V or 110V
Usage:	Professional Performance

Product Description

Fp10000q 4 Channels Line Array Professional Extreme High Power Amplifier

professional power amplifier

audio power amplifier

sound power amplifier

high quality power amplifier

line array power amplfier

extreme power amplifier

Power Amplifier advantages:
Imported circuit board
Heat sink is 15mm height red copper
16pairs imported sanken transistors
458 port link
Used imported Neutrik speakon and XLR connectors
Class D power amplifier with light weight

Specifications:

Professional power amplifier Specifications
Model	FP10000Q
Max.Output Power(8ohm)	1300W×4
Max.Output power(4ohm)	2080W×4
Max.Output power(4ohm)	2500W×4
T.H.D(1W.20Hz-20KHz)	<0.1%
Signal To Noise Ratio	>112dBA
Cross Talk(1KHz)	>70dB
Frequency Response	10Hz-35KHz
Default Gain	35dB
Gain Selectable	23,26,29,32,35,38,42,44dB
lnput Connecters	3-Pin XLR.
Onput Connecters	Neutrik Speakon
Main Power Supply	110/220V(±10%)50-60Hz
Weight	13Kg
Dimensions	483(W)×396(D)×88(H)mm

Applications:

Large-scale performances,
Venues
Hall, Stadium
Church
Wedding
Night Club
Business senior entertainment clubs
Other places

Detail photos:
Compare FP10000Q of Skytone and other factories:

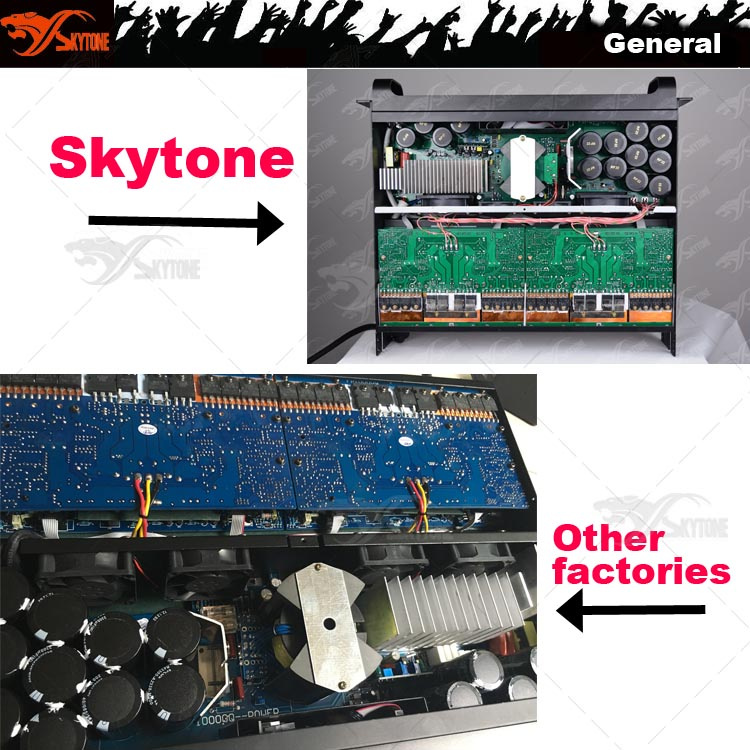

1. General outlook:

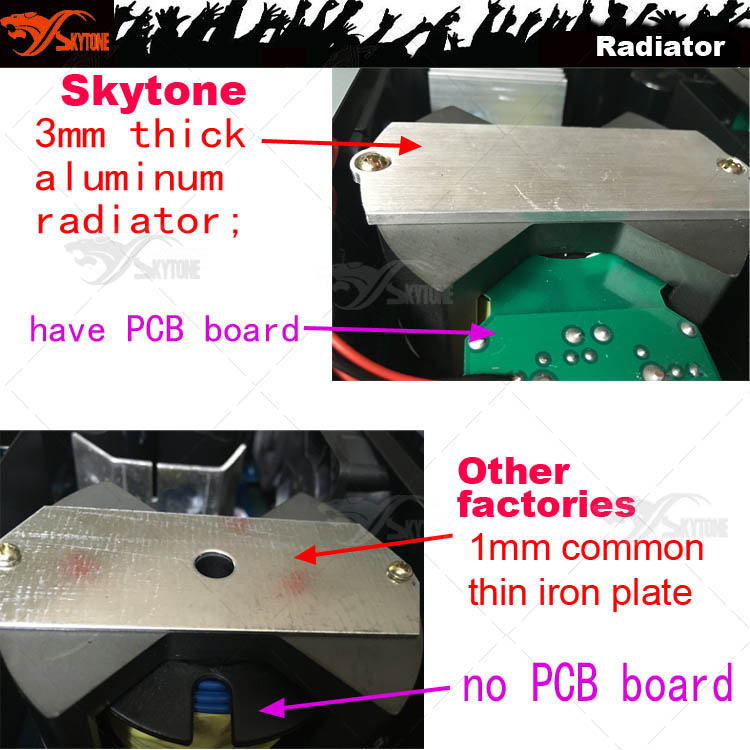

2. Skytone: 3mm thick aluminum radiator; have PCB board
Other factories: 1mm common thin iron plate;no PCB board

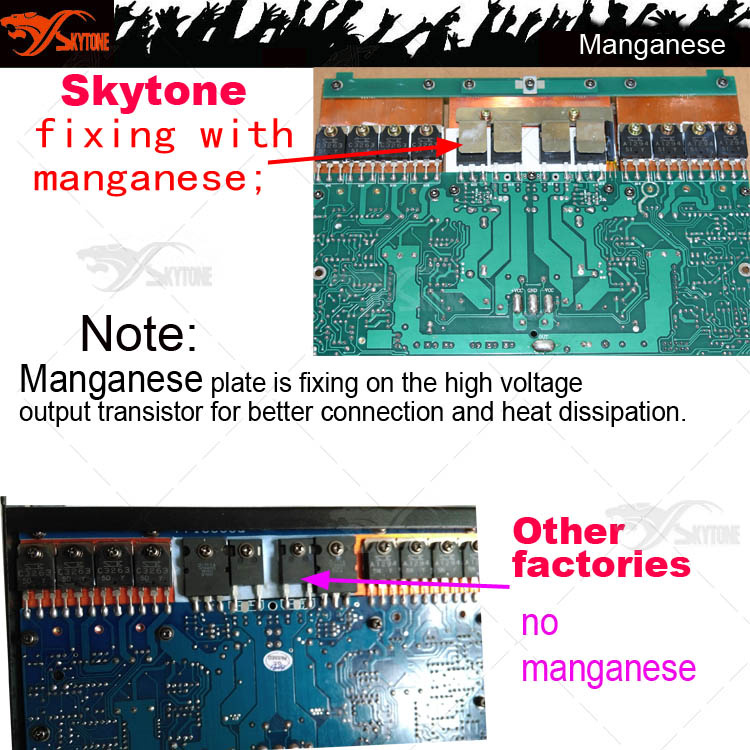

3. Skytone: fixing with manganese;
Other factories: no manganese;
Note: Manganese plate is fixing on the high voltage output transistor for better connection and heat dissipation.

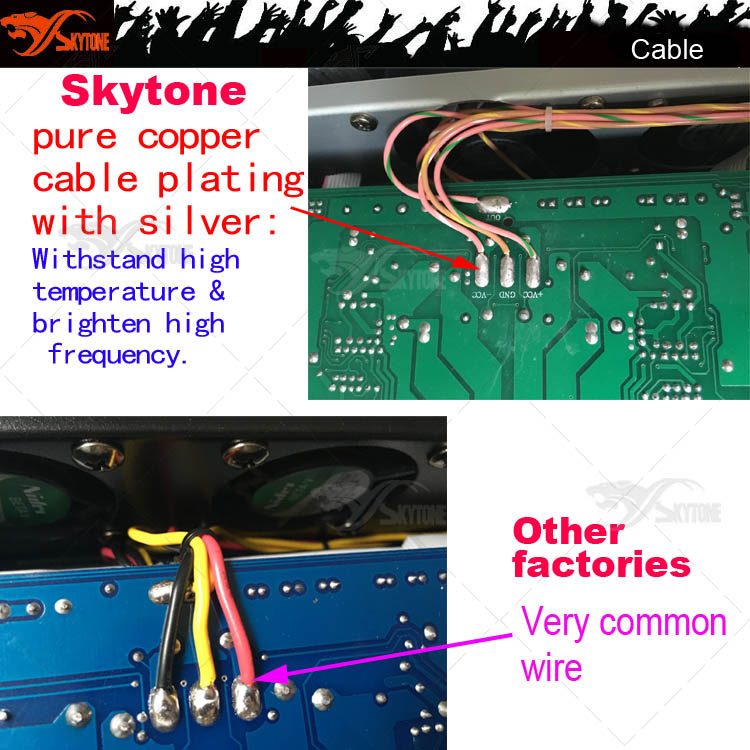

4. Skytone: pure copper cable plating with silver: Withstand high temperature & brighten high frequency.

Other factories: very common wire

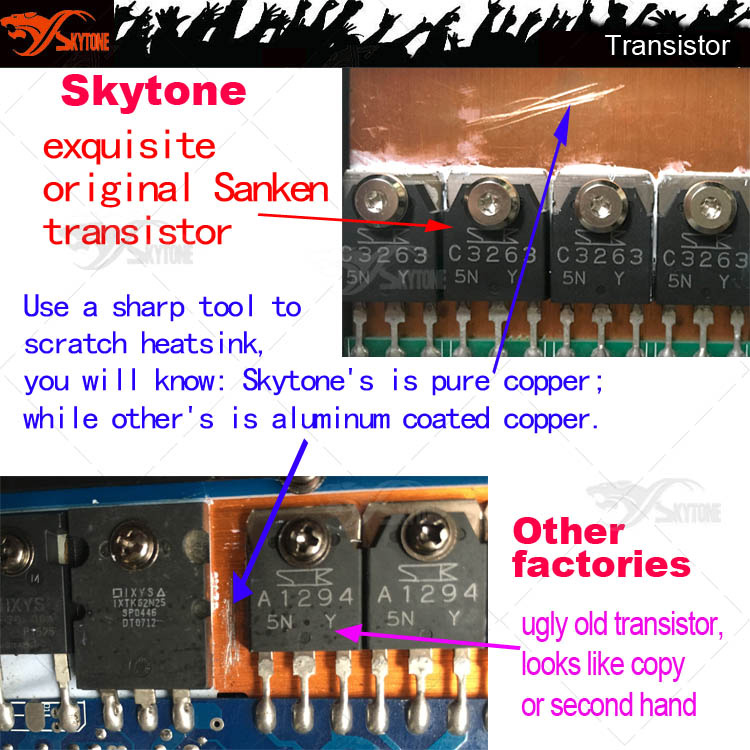

5. Transistor compare:
Skytone: exquisite original Sanken transistor

Use a sharp tool to scratch heatsink, you will know: Skytone's is pure copper; while other's is aluminum coated copper.

Other factory: ugly old transistor, looks like copy or second hand

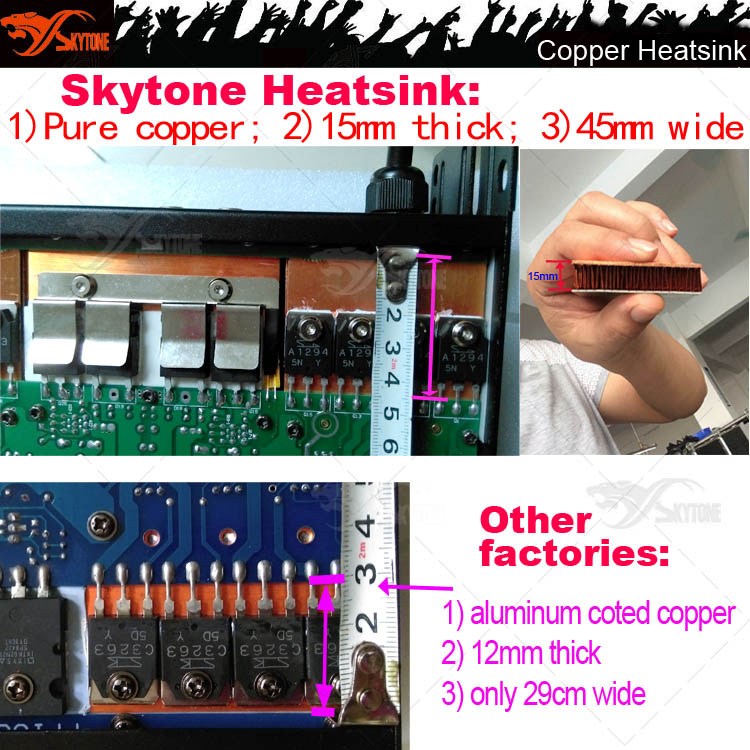

6. Copper Heatsink compare:
Skytone Heatsink:
1)Pure copper; 2)15mm thick; 3)45mm wide
Other factories: 1) aluminum coted copper 2) 12mm thick 3) only 29cm wide
