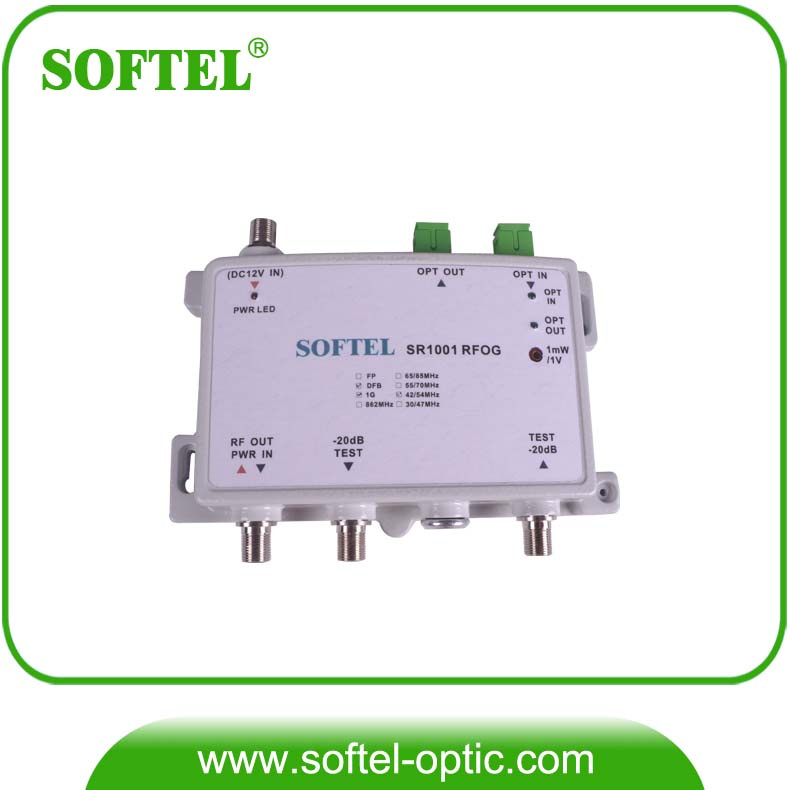

FTTH Mini Fiber Optical Rfog Node

Name: FTTH Mini Fiber Optical Rfog Node
Brand: all-electronics-online.com
SKU: 669317662
Availability: InStock
Rating: 4.4 (143 reviews)

Price:	US $ 100-165/Piece
Trade Terms:	FOB,CFR,CIP
Min Order:	5/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	SR801
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Optical Node Name:	FTTH Mini Node Rfog Optical Node
Frequency Range:	45/87 ~ 750/862MHz, 54 ~1000MHz
Optical Input Range:	-7 ~ +2dBm, -8~0dBm
Wavelength:	1100 ~ 1600nm or 1530 ~ 1620nm
Connector Type:	Sc/APC
Fiber Type:	Single Mode
Optical Return Loss:	>45dB
Power Voltage:	DC12V/1A
Optic Node Dimension:	130(L)X110(W)X35(H)
Output Impedance:	75ohm
Type:	Fiber Transceiver
Wiring Devices:	Integrated Wiring

Product Description

Description:

SR801 optical receiver is a special product only for fiber to the home (FTTH) network structure. The internal circuit of the special product with cast aluminum shell is compact and suitable; It's the best choice for sub-district or family optical fiber network, because it's excellent performance indexes.
The impedance of forward RF output 1is 75Ω .
Because of the -20dB input and output test port, engineering commissioning becomes more convenient.
GaAs amplifier is used.
There is optical power test port(1V/1mW).
The power is supplied by 12-15V direct voltage (stand-by power supply).
There are downlink SC/APC and uplink SC/PC optical interfaces.

Items	Unit	SR801	SR801B
Optical Parameter
Optical Input Range	dBm	-7 ~ +2	-8~0
Optical Return Loss	dB	> 45
Optical Receiving Wavelength	nm	1100 ~ 1600
Optical Fiber Connector Type		SC/APC
Optical Fiber Type		Single-mode
Downlink Performance
Frequency Range	MHz	45/87 ~ 750/862	54 ~1000
Flatness in Band	dB	±0.75	±0.75
Nominal Output Level	dBμV	85 -2dBm Input	81 -4dBm Input
Output Return Loss	dB	≥15	≥15
C/N	dB	≥50 -2dBm Input	≥48 -4dBm Input
C/CTB	dB	≥65 -2dBm Input	≥65 -4dBm Input
C/CSO	dB	≥63 -2dBm Input	≥63 -4dBm Input
Uplink Performance
Frequency Range	MHz	5 ~ 30/65	5~42
Flatness in Band	dB	±1
RF Input Power	dBμV	80 Total Power on the RF input port
Output Return Loss	dB	≥15
Output Optical Power	mW	0.5~2	1~3
Insert uplink Performance
Frequency Range	MHz		5 ~500
Flatness in Band	dB		±1
RF Input Power	dBμV		80Total Power on the RF input port
Output Return Loss	dB		≥15
Output Optical Power	mW		1
Generic Characteristic
Supply Voltage	V	DC 12~15 V
Operating Temperature	ºC	-10~40
Storage Temperature	ºC	-25~55
Relative Humidity	%	Maximum95%No Condensation
Power Consumption	VA	≤5	≤7.5
Dimension	mm	130(L)* 110(W)* 35(H)	150(L)* 120(W)* 35(H)
