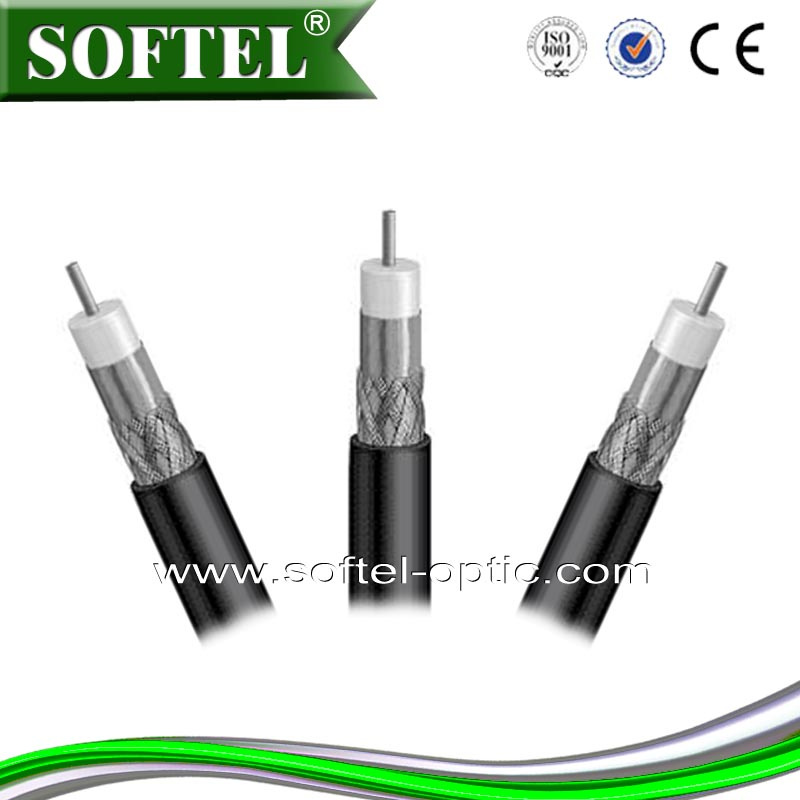

Rg11 Coaxial Cable with Solid Steel Messenger

Rg11 Coaxial Cable with Solid Steel Messenger
Price: US $ 0.031/Meter
Trade Terms: FOB,CFR,CIF
Min Order: 1000/Meter
Pay Type: L/C,T/T,D/P,Paypal,Money Gram
Prod Model: RG11
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Module Number: Rg11
Dielectric: 4.57+ 0.05mm Foam PE
Center Conductor: 1.02mm + 0.01mm
Shield: Bonded Al Foil
Outer Conductor Thickness: 0.343mm
Braid Coverage: 60%
Jacket: 6.91+0.05mm PVC
Messenger: 1.30mm
Jelly/Apd: Per Customer' Special Requirement
Application: Coaxial Cable
Conductor Material: BC/CCS/CCA/TC/CU/CCAG
Cover Material: PVC
Certification: CCC
Type: Coaxial Cable
Brand: Softel

Product Description

RG58/RG59 BC/CCS Quad-Shield House Drop Coaxial Cable from High Technology Manufacture in China




-Construction

Min. Bending radius: 8.9mm(jacketed)
Max. Pulling tension: 68kgf
Min. Thickness strength
Of messenger: 816kgf
Impedance: 75+2Ohm
Capacitance: 50+3nF/km, 15.3+1pF/ft
Velocity of Propagation: 88%

-Characteristics

Sparker test: 4000VAC

Impedance: 75+2 Ohm

Capacitance: 54+3pF/m

Velocity of Propagation: 85%

Return Loss: 20dB min (5-2300MHz)

-Nominal D. C. Resistance @20

Copper clad:
Inner conductor 4.43ohms/km
Outer conductor 1.21ohms/km
Loop 5.64ohms/km
