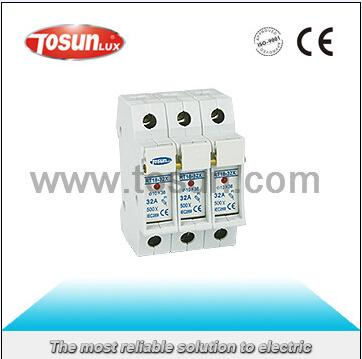

Fuse Holder Fuse Base Fuse Holder

Prod Model:	RT18/RT18L
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Certificate:	CE
Breaking Capacity:	High
Type:	Current Fuse
Usaga:	Low Voltage

Product Description

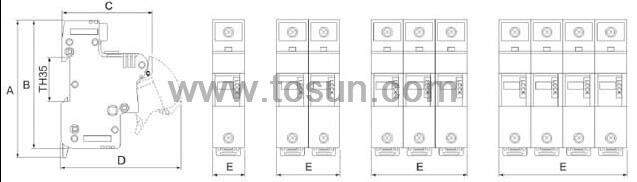

Type	Assorted Fuse	Rated Voltage (V)	Rated Current (A)	Dimension (mm)
				A	B	C	D	E
RT18-32 1P	10*38	380	32	82	78	35	63	18
RT18-32 2P			32	82	78	35	63	36
RT18-32 3P			32	82	78	35	63	54
RT18-63 1P	14*51		63	106	103	35	80	26
RT18-63 2P			63	106	103	35	80	52
RT18-63 3P			63	106	103	35	80	78
RT18-32X 1P	10*38		32	82	78	35	63	18
RT18-32X 2P			32	82	78	35	63	36
RT18-32X 3P			32	82	78	35	63	54
RT18-63X 1P	14*51		63	106	103	35	80	26
RT18-63X 2P			63	106	103	35	80	52
RT18-63X 3P			63	106	103	35	80	78

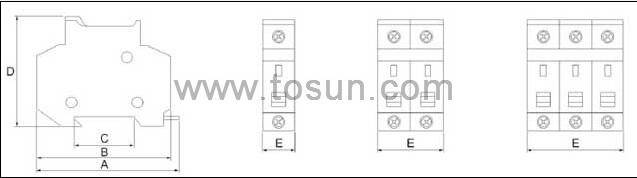

Model	Matched Fuse Link	Rated Voltage (V)	Rated Current(A)	Dimension
				A	B	C	D	E
RT18L-63 1P	14 x 51	690	63	115	108	78	100	27
RT18L-63 2P				115	108	78	100	54
RT18L-63 3P				115	108	78	100	81
RT18L-63 4P				115	108	78	100	108
RT18L-125 1P	22 x 58		125	134	126	78	104	36
RT18L-125 2P				134	126	78	104	72
RT18L-125 3P				134	126	78	104	108
RT18L-125 4P				134	126	78	104	144

IF YOU ARE INTERESTED IN OUR PRODUCTS,  PLEASE  CONTACT WITH US.  THANK YOU.

ABOUT US:

Wenzhou Tosun Electric Co., Ltd deals with numerous Electrical Products and LED Lights

in high quality, such as voltage stabilizers, circuit breakers, AC contractors, meters, relays, control units,

led spotling, led panel light.


Why us?
1. We have extensive experience in low tension electric items and illumination products. We have been  dealing the line for more than 21 years.

2. The prices of our products are very reasonable because our network of raw material supply, spare parts and goods. And our factory is efficient, covering an area of 13,000 m².

4. Our  group of professional inspectors supervising the quality for your every order. Our products have  obtained TUV, SEMKO, CE, CB, and ROHS certificates.

5. We have particular designers in charge of packing.

6. We have experienced salesmen to handle business for you specially.

About us
1.  More than 23 years' experience. We have extensive experience in low tension electric items illuminaiton products.

2. Reasonable price. Good network of raw material supply, spare parts and goods and efficient factory covering an area of 13,000 m².

3. Reliable quality. We have professional inspectors supervising the quality during the production. Our products have obtained TUV, SEMKO, CE, CB and RoHS certificates.

4. Favorable service. We have experienced salesmen to handle business for you specially.

5. Attractive packing. We have particular designers in charge of packing material in a unique style.

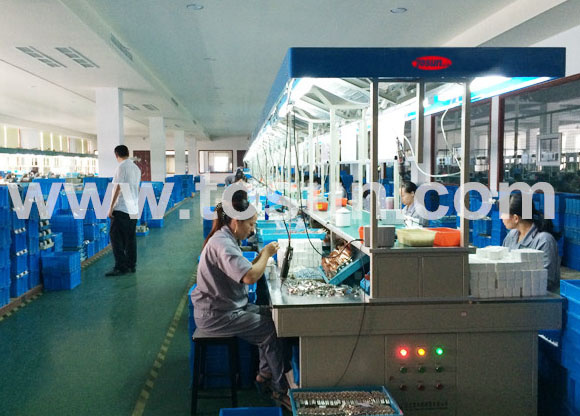

OUR PRODUCING LINE


Our office
