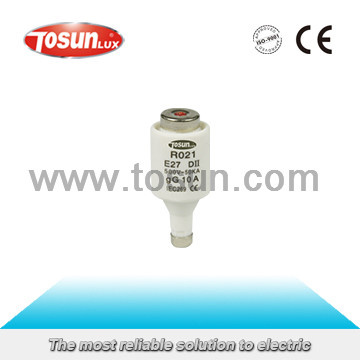

Spiral Fuse Link

Name: Spiral Fuse Link
Brand: all-electronics-online.com
SKU: 765774435
Availability: InStock
Rating: 4.7 (32 reviews)

Price:	US $ 0.1-1.8/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	RO, RS series
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Certificate:	CE
Breaking Capacity:	High

Product Description

Model		Size	Rated Current(A)	Dimension(mm)
GG	AR	Size	Rated Current(A)	A	C	D	L
RO 21	RS 21	DII	2,4,6	6	22	13	50
			8, 10	8	22	13	50
			13	8	22	15	50
			16	10	22	15	50
			20	12	22	15	50
			25	14	22	15	50
RO 22	RS 22	DIII	30, 35, 40	16	27	20	50
			50	18	27	20	50
			63	20	27	20	50
RO 23	RS 23	DIV	2, 4, 6	6	27	20	70
			8, 10	8	27	20	70
			16	10	27	20	70
			20	12	27	20	70
			25	14	27	20	70
			35	16	27	20	70
			50	18	27	20	70
			63	20	27	20	70
RO 24	RS 24	DI	2, 4, 6	6	12.5	11.3	50
			10	8	12.5	11.3	50
			16	10	12.5	11.3	50
			20, 25	12	12.5	11.3	50

Model		Size	Rated Current(A)	Dimension(mm)
GG	AR	Size	Rated Current(A)	A	B	C	D	L
RO 26	RS 26	D01	2,4,6	5	7.3	10.6	10	36
			10	5	8.5	10.6	10	36
			16	5	9.7	10.6	10	36
		D02	20	8.5	11	15	14	36
			25	8.5	12	15	14	36
			35	8.5	13.3	15	14	36
			50	8.5	14.5	15	14	36
			63	8.5	16	15	14	36
		D03	80	17	22	22	21	43
		D03	100	17	25	22	21	43

IF YOU ARE INTERESTED IN OUR PRODUCTS, PLEASE CONTACT WITH US. THANK YOU.
