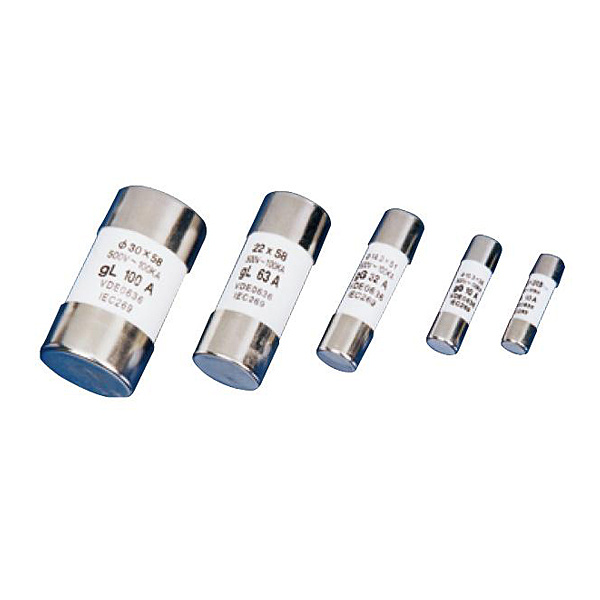

Fuse Link

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Breaking Capacity:	Low
Type:	Current Fuse
Usaga:	Low Voltage

Product Description

1.Application
The fuses links having cylindrical contact caps are designed for protecting electrical distributing installations of rated voltage of 380V AC. with rated current up to 125A against damage due to overload and short circuit. Fuse links with the striker are supplied for the purpose of protecting motors against motor single phasing operation when fitted in fuse isolators.1.RT18


1.Specification

Dimension(mm)	Rated current (A)	L	Hamx	C
mm
8.5 x 31.5	2,4,6,10,16	31.5±0 0.6	8.5	8.5±0.1
10 x 38	2,4,6,10,16,20,25,32	33±0.6	10.5	10.3±0.1
14 x 51	2,4,6,10,16,20,25,32,40,50,63	51±06 10	13.8	14.3±0.1
22 x 58	10,16,20,25,32,40,50,63,80,100	58±01 20	16.2	22.2±0.1
30 x 58	63,80,100,125	58±01 20	16.2	30±0.1
