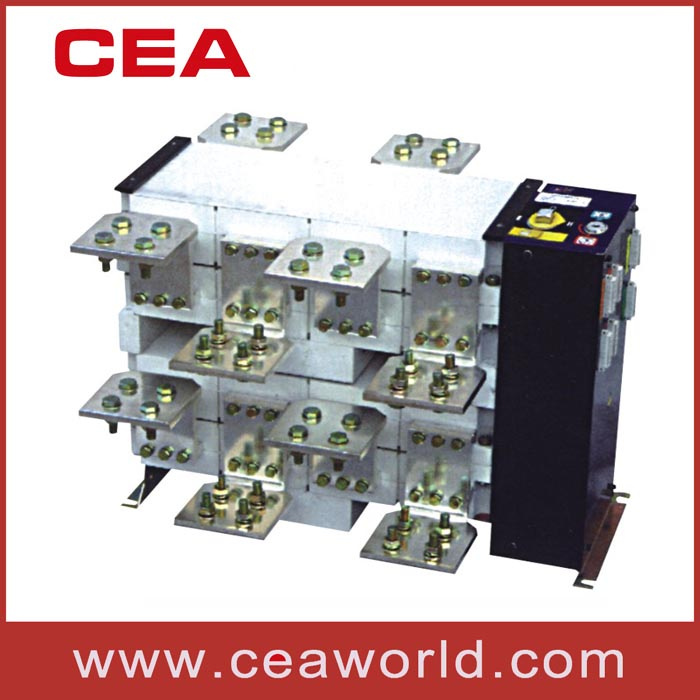

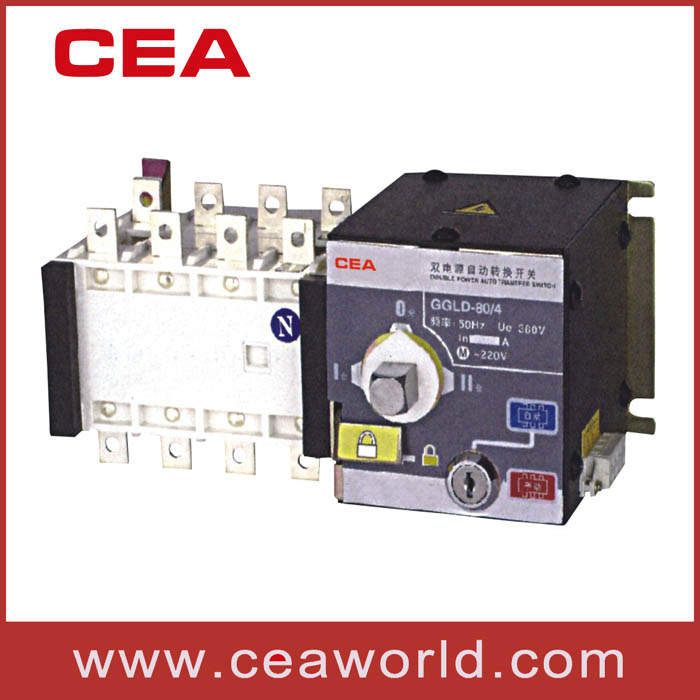

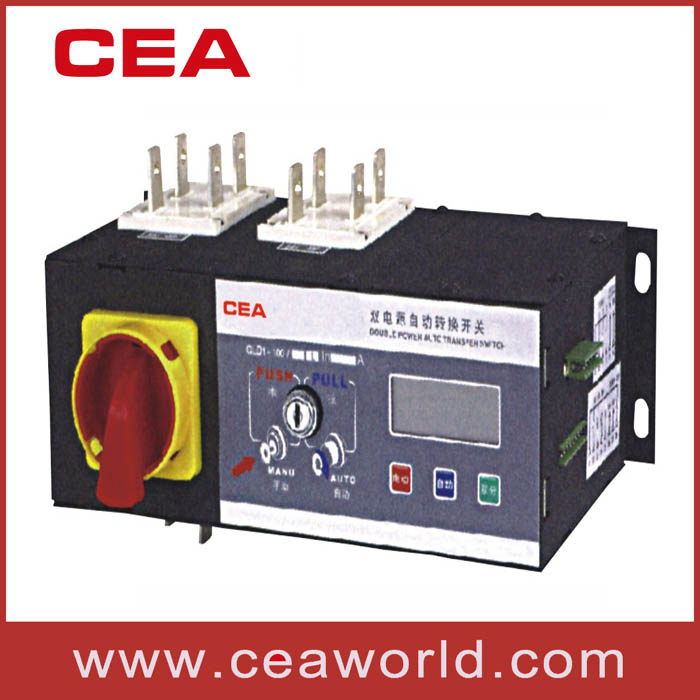

GGLD Automatic Transfer Switch

Prod Model:	GGLD
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type: Auto-Recovery Mode/ Nomal Code:	Installation: DIN-Rail and Screw
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Electric Type
Speed:	High-Speed Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Structure:	Moulded Case Circuit Breaker
Certification:	CE,CCC

Product Description





With double-row composite control, levelly-pulling opening and closing mechanism, micro motor energy pre-stored technology as well as microelectronic control technology, it can basically realize no flashover( no arc hute).


Adopt realiable mechanical and electrical interlocking.

Due to zero crossing technology, it can set two zero compulsorily under emergency cut off double circuit power synchronously

With visible indication of on/off position, it can get the space between power and load.

The switch has multi-circuit input interface that can realize PLC remote control as well as automation of system.


The switch does not need any external control elements.

conventional heating current Lth	80A	100A	125A	160A	250A	400A	630A	800A	1000A	1250A	1600A	200A	2500A	3200A
rated insulation voltage UI	750	750	750	750	750	1000	1000	1000	1000	1000	1000	1000	1000	1000
rated impaction withstand voltage Uimp(KV)	8	8	8	8	8	12	12	12	12	12	12	12	12	12
rated working current Ue AC	440	440	440	440	440	440	440	440	440	440	440	440	440	440
rated working current Ie AC-31A	80	100	125	160	250	400	630	800	1000	1250	1600	2000	2500	3200
rated working current  Ie AC-35A	80	100	125	160	250	400	630	800	1000	1000	1250	2000	2000	2500
rated working current Ie AC-33A	80	100	125	160	250	400	400	800	1000	1000	1000	1250	1250	1250
rated operating capacity	10Ie	10Ie	10Ie	10Ie	10Ie	10Ie	10Ie	10Ie	10Ie	10Ie	10Ie	10Ie	10Ie	10Ie
rated breaking capacity	8Ie	8Ie	8Ie	8Ie	8Ie	8Ie	8Ie	8Ie	8Ie	8Ie	8Ie	8Ie	8Ie	8Ie
rated limiting short circuit current(KA)	100	100	100	100	100	70	70	100	100	100	120	80	80	80
rated short time withstand current Is  (KA)	7	7	7	9	9	13	13	26	50	50	50	50	50	55
voltage of control power supply AC	220	220	220	220	220	220	220	220	220	220	220	220	220	220
energy consumption of the motor start  (W)	300	300	300	325	325	355	355	400	440	440	440	600	600	600
energy consumption of the motor nomal(W)	55	55	55	62	62	74	74	90	98	98	98	120	120	120
weigh(KG) 3poles	7.2	7.5	7.5	8.8	9	16.5	17	32	36	40	49	95	98	135

Company Profile:

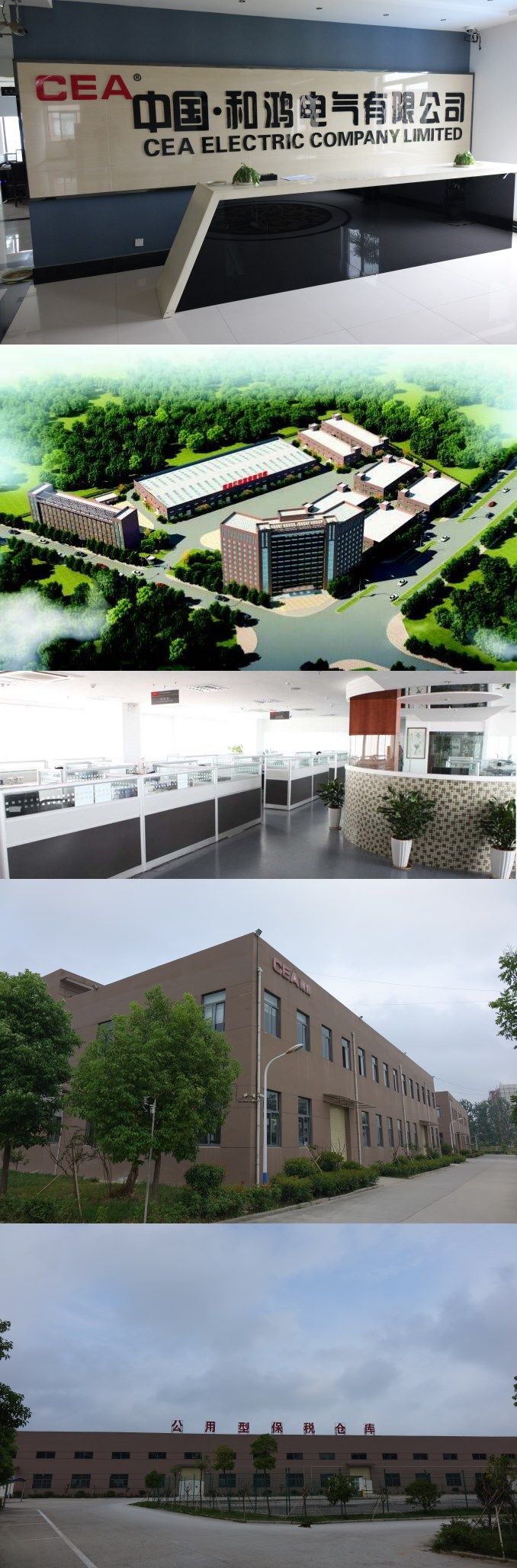

Founded in 1999, CEA Elecreic Co., Ltd is acknowledged as one of the most respected electrical apparatus and LED lighting manufacturer in China. The company located in Fuyang city Anhui Province, owns production area of 50,000m² and employs more  than 5oo staffs.
