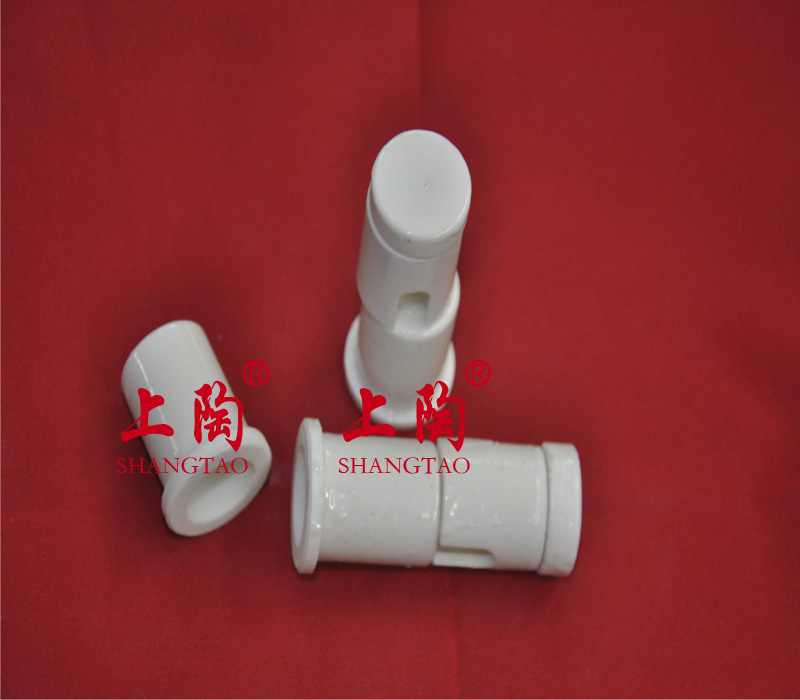

Name: Glazed Ceramic Insulator
Brand: all-electronics-online.com
SKU: 727996225
Availability: InStock
Rating: 5 (39 reviews)

Price:	US $ 0.1/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	GT-0272
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Shape:	Round
Surface Treatment:	Brushed
Grade:	1000 Series
Alloy:	Non-alloy
Temper:	No Need

Product Description

Gongtao company mainly produce alumina tubes, rods and various industrial ceramic parts, which are mainly used in thermalcouple temperature, liquid steel continous temperature, various industrial furnace(containig vacuum furnace, carburizing furnace, wire furnace, atmosphere furnace etc), especially widely used in petrochemical, spinning, electric, instrumentation, mechanical workout, military project etc industry.

Property of material:

Material	85 Al2o3	90 Al2o3	95 Al2o3	99 Al2o3
Al2o3	85%	90%	93%	99.30%
Fe2o3	≤ 1.0	≤ 0.5	≤ 0.5	≤ 0.3
Desnsity: g / cm3	3.4	3.5	3.6	3.85
Vickers Hardness	≥ 8.6	≥ 8.8	9	9
Water Absorption:%	≤ 0.2	≤ 0.1	≤ 0.085	≤ 0.01
Refractoriness:°C	1580 °C	1600 °C	1650 °C	1800°C
Flexural Strength:Mpa	180	200	240	280
Wear Rate( at room temperature, erosion, 100 grinding)%	≤ 3	≤ 2.5	≤ 1	≤ 0.5

Other information:

Feature	Application	Main usage
1.Great mechanical strength	Electric appliance industry Automotive industry	1.Heat treatment furnace and toughened furnace
2.High softening temperature
3.Good resistance to thermal impact
4.Small thermal expansion coefficient	Mechanical industry Engineer industry	2.Inner liner tube and heating tube in electric furnace
5.Good chill and abrupt heat properties
6. Resistance to acid and alkali corrosion

Shanghai Gongtao Ceramics Co., Ltd. is one of the most leading and advanced ceramic material companies in China, integrating the design, manufacture and marketing of high-tech ceramics. Brand name "SHANGTAO" was formed more than 20 years ago. We specialize in Alumina products, Zirconia products, Magnesia products, Silicone Nitride products and Alumina Nitride products. We have developed advanced skills and technologies. Our products are widely used in electricity, information, power, automobile and other fields.

Range of Industrial Ceramics: alumina ceramics, zirconia ceramics, titanium oxide ceramics, silicone carbide ceramics, silicon oxide ceramics, special ceramics, high-frequency ceramics, mullite ceramics, general ceramics, refractory ceramics, electronic ceramics, textile ceramics, high purity alumina crucible, electrical ceramics, etc.

SHANGTAO strictly complies with ISO9001 quality management system. Our products are widely used in aerospace, mining machinery, lift, power, paper making, laboratory, nonferrous metal processing, electronics processing, textile machinery and other industries, SHANGTAO provides wholesale and retail services.

We have the largest stocks in Shanghai, professional manufacturing experience, most complete industrial ceramics, rock bottom price, best service, speedy delivery.

Welcome to contact us for cooperation! Also welcome to visit us!
