Good Quality 3p MCCB Moulded Case Circuit Breaker

Good Quality 3p MCCB Moulded Case Circuit Breaker
Price: US $ 9/Piece
Min Order: 20/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: 4P 100A
Standard: GB10963/IEC60898
Breaking Capacity: Low Voltage Circuit Breakers
Operation: Manual Type
Speed: Normal Type Circuit Breaker
Arc-extinguishing Medium: Air
Installation: Fixed
Structure: MCCB
Certification: CCC
Poles Number: 2p,3p 4p

Product Description

Good quality 3p Mccb moulded case circuit breaker

specification

Main technical specifications



Rated breaking capacity grade if MCCB: D-economical type. with overload release on N pole. which making all time, not closing and opening with the other three poles;N-standard type: H-high breaking capacity type: L-highest breaking capacity type.

TypeRated Current (A)Poles numberRated insulating voltage(V)Rated operating voltage(V)Arcing Over Distance (mm)Ultimate Short Circuit BreakingServies Circuit BreakeringOperation performance
LoadedUnloaded
M2-100D12.5,16,20,25,32,40,5063,80,100









3P,4P



750under 690v0181815008500
M2-100N 2525
M2-100H7070
M2-100L150150
M2-160D16,20,25,32,40,50,63,80,100,125,160252510007000
M2-160N3636
M2-160H7070
M2-160L150150
M2-250D160,180,200,225,250353510007000
M2-250N4545
M2-250H7070
M2-250L150150
M2-400D200,225,250,300,315,400353510004000
M2-400N4545
M2-400H7070
M2-400L150150
M2-630D315,350,400,500,600,630353510004000
M2-630N4545
M2-630H7070
JM2-630L150150
M2-1250D500,600,630,800,1000,12505037500
M2-1250N7050


Wenzhou Suoli Electric Co, . Ltd. (will change the namer to Wenzhou Manjia Electric Co., Ltd. ) is a manufacturer specialized in low-voltage electrical appliance, gathering research, manufacture, distribution and service as a whole. We mainly produce switch cabinet, JXF, distribution box, lighting box, plastic water-proof and dust-proof junction box, seal box, MCBs and so on.

Our company is established in 1995, located in Yueqing economic development zone with an area of 7800 square meters which is next to national highway 104, the transportation is very convenient.

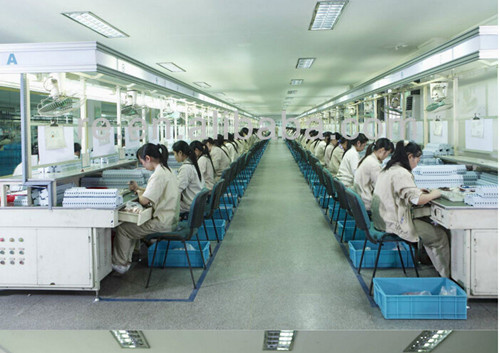

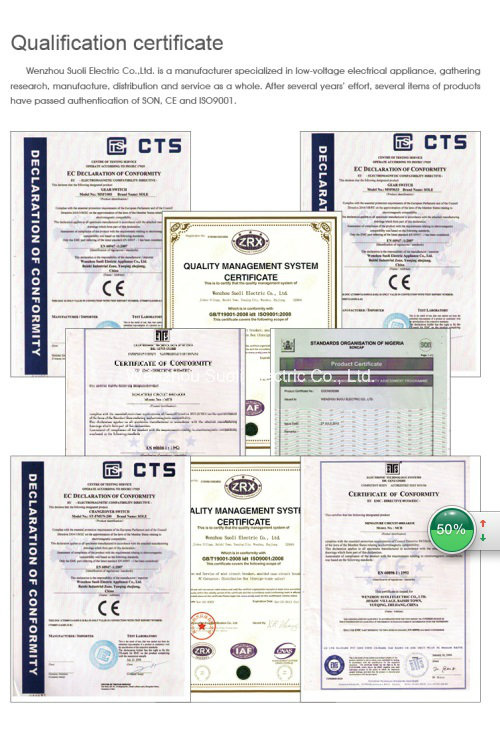

Relying on powerful technology strength, advanced testing equipment, exquisite technical and modernized management mode, based on the principle that people oriented, we have 200 workers and 20 engineers. We import numerical control bending machine, cutting machine, punch, injection molding machine and such top-ranking facilities. Our products have passed certification of SON, CE and ISO9001.

The satisfaction of customers is our wishes and responsibility. In order to offer best services, we require all the staff to strengthen the notion of customer first. Besides, we also have established the center of after-sale services.

The company always keeps in touch in with clients and communicates with potential clients. Suoli always has been keeping the idea of the human being as base and considers honesty as the foundation, peace as the most valuable thing, and puts credibility in the first place.

Together with you, Souli is willing to create a better future.
