| Prod Model: |
DL-GPS-014 |
| Mounting: |
Screw Fixing |
| Connector: |
SMA Gold Plated Male Head Straight |
| Cable: |
Rg174 0.27m |
| Color: |
Black |
| Size: |
46.6*17mm |
| Weight: |
80g |
| Usage: |
Car Antenna |
| Operating Wavelength: |
Medium Wave |
| Material: |
Al |
| Directionality: |
Directional Antenna |
| VSWR: |
1.5~2 |
Product Description
Summary
Effect of GPS receiving antenna, the electromagnetic wave energy conversion radio signal from the satellite receiver into the electronic device can supply intake applications. Our GPS antenna is composed of ceramic body and active antenna amplifier. The plastic shell package, has the characteristics of waterproof, the product has the advantages of small volume, the antenna is arranged at the bottom of 3M glue, convenient installation and use.

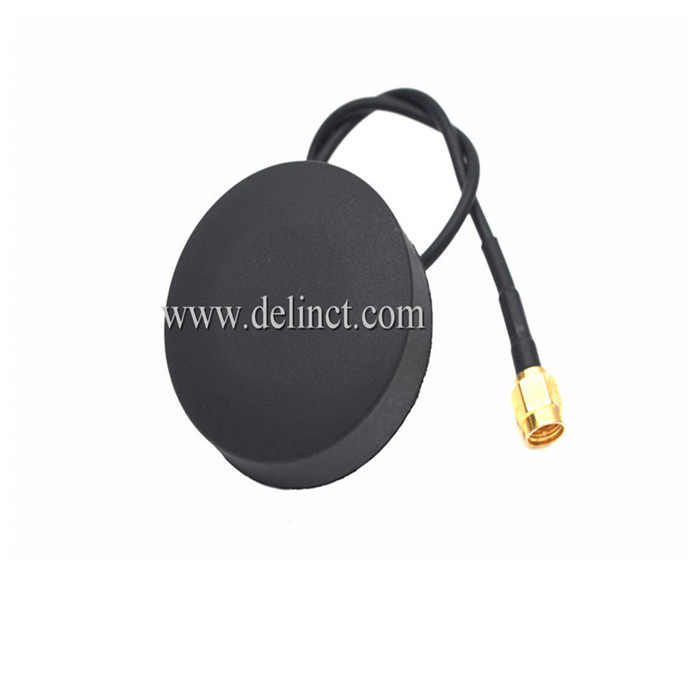

Product Apearance
| Size | Ø46.6*17mm | Mounting | Screw Fixing |
| Weight | <80gram | Connector | SMA gold plated male head straight |
| Color | Black | Cable | RG174 0.27m |
Antenna Specifics
| NO | (Item) | (Specifications) | Post Environmental Tolerance |
| 1 | (MHz)
Range of Receiving Frequency | 1575.42±2 | ±2.5 |
| 2 | (30*30m)
Center Frequency(MHz)
(with 30mmSpuareGND plane) | 1575.42 | ±3.0 |
| 3 | Band Width(MHz)
(Return Loss≤-10dB) | ≥10 | ±0.5 |
| 4 | V.S.W.R(in Center Frequency) | ≤2.0 | ±0.3 |
| 5 | Gain (Zenith)(dBi typ) | 3.0 | ±0.5 |
| 6 | Axial Ratio
(with 70mm Square GND plan) | 3.0dB | ±0.2 |
| 7 | Polarization |
Right-Handed Circular | ---- |
| 8 | Impedance(Ω) | 50 | ---- |
| 9 | (ppm/ºC)
Frequency Temperature Coefficient | 0±10 | ---- |
Amplifier Characteritics
| NO | (Item) | (Specifications) |
| 1 | frequency range | 1575.42±2MHz |
| 2 | amplifier gain | 26dB±3 |
| 3 | standing-wave ratio (SWR) | ≤2.0 |
| 4 | noise factor | <2.0 |
| 5 | Direct-current Voltage | 3~5V |
| 6 | Direct current | ≤20mA |
Environmental Test
1: high temperature test: in the temperature of 80 degrees in the drying box for 12 hours, after checking the appearance of no deformation, after drying at room temperature for 12 hours after the oxidation, its performance test as follows:
2.: low temperature test for 12 hours in the freezer temperature of -40 degreees, shape deformation, at room temperature after recovery without oxidation rust phenomenon, the performance test of the following Salt fog test:
| number of test samples | hang | Parameter | checkout | conclusion |
| pay | 30 degrees of suspension, cutting edge covered by 3M | Dust free, atmospheric pressure, 80PA pressure; solution pH value: 6.9; salt solution at 35 degrees concentration (42G solution per liter of sea salt solute); density: 1.0366; after testing with 32 degrees flow pure water rinse; hair dryer air dry. | No oxidation corrosion phenomenon. | The test results show that the products of anti-oxidation, corrosion resistance is superior |
Operating Condition
Temperature: -40ºC~+80ºC
Humidity:95%~100%
Storage:
Temperature:-45ºC~+85ºC
Humidity:95%~100%
