Green Gas Insulated Switchgear

Name: Green Gas Insulated Switchgear
Brand: all-electronics-online.com
SKU: 726699402
Availability: InStock
Rating: 5 (131 reviews)

Price:	US $ 500-3000/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	HDC15-12
Altitude:	<=2000m
Ambienttemperature:	-15~+45
Seismic Capacity:	8 Degrees
Structure:	Protection
Type:	Power Distribution Cabinet
Shell Protection Grade:	IP44
Brand:	Dechun

Product Description

Green Gas Insulated Switchgear
Product Specification:

Item	Unit	Parameter
		C module		V module
		Load break switch	Earthing switch	Load break switch	Earthing switch
Rated voltage	KV	12	12	12	12
Power frequence withstand voltage KV	KV	42/48	42/48	42/48	42/48
Impulse withstand voltage KV	KV	75/85	75/85	75/85	75/85
Rated current	A	630		630
Breaking capacity
Active load A	A	630
Closed loop	A	630
Off load cable charging	A	63		25
Earth fault	A	31.5
Short circuit drop-out current	KA			20
Making capacity	KA	50		50	50
Grade(electrical life)		E3		E20
4S short-time withstand current	KA	20	20	20	20
Mechanical operation times once	Time	M1/10000	M2/30000	M1/10000	M2/30000
Mechanical operation order				O-00.3s-CO-180-CO

Product description:

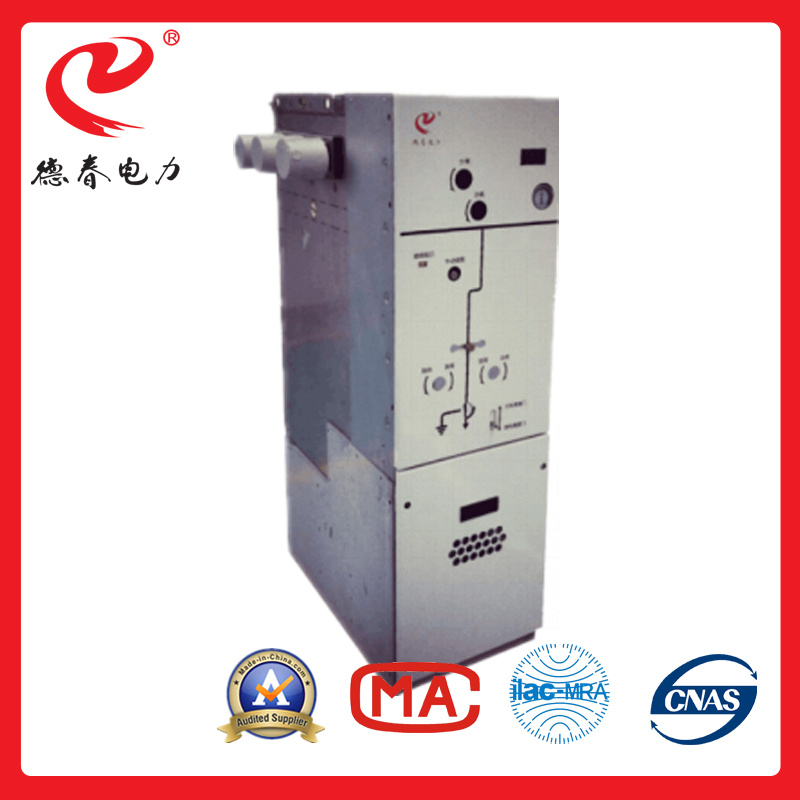

HDC15-12 Green Gas Insulated Switchgear is 12KV ,tree-phase AC 50Hz , the single bus and the bus section complete sets of power distribution
unit of the system. Use nitrogen (N2) insulation, no SF6 and SF6 changes in toxicity caused by arcing,guarantee the personal safety in the environment. In the process of production, use, recycling will not cause leakage and emissions of SF6, also can realize the goal of green environmental protection,and no carbon emissions.

Features:
Filling with nitrogen(N2),do not use the SF6 gas,Keep environmentaly friendly;
Anti harsh environment,anti condensation, frost,fog,salt contamination, corrosion resistance etc;
All the liveparts and swith are enclosed in a stainless steel shell filled by
N2,Compact structure, fully insulated;
Modular design, flexible expansion;
Smart grid compatible, optional automation terminal, to meet the requirements of smart grid upgrade.

Applicable conditions:
Altitude:≤2000m
Ambienttemperature:-35ºC~+40ºC
Relative humidity:
Daily average≤95%,Monthly average≤90%
Seismic capacity: 8 degrees

Current	AC
Altitude	≤2000m
Ambienttemperature	-35ºC-+40ºC

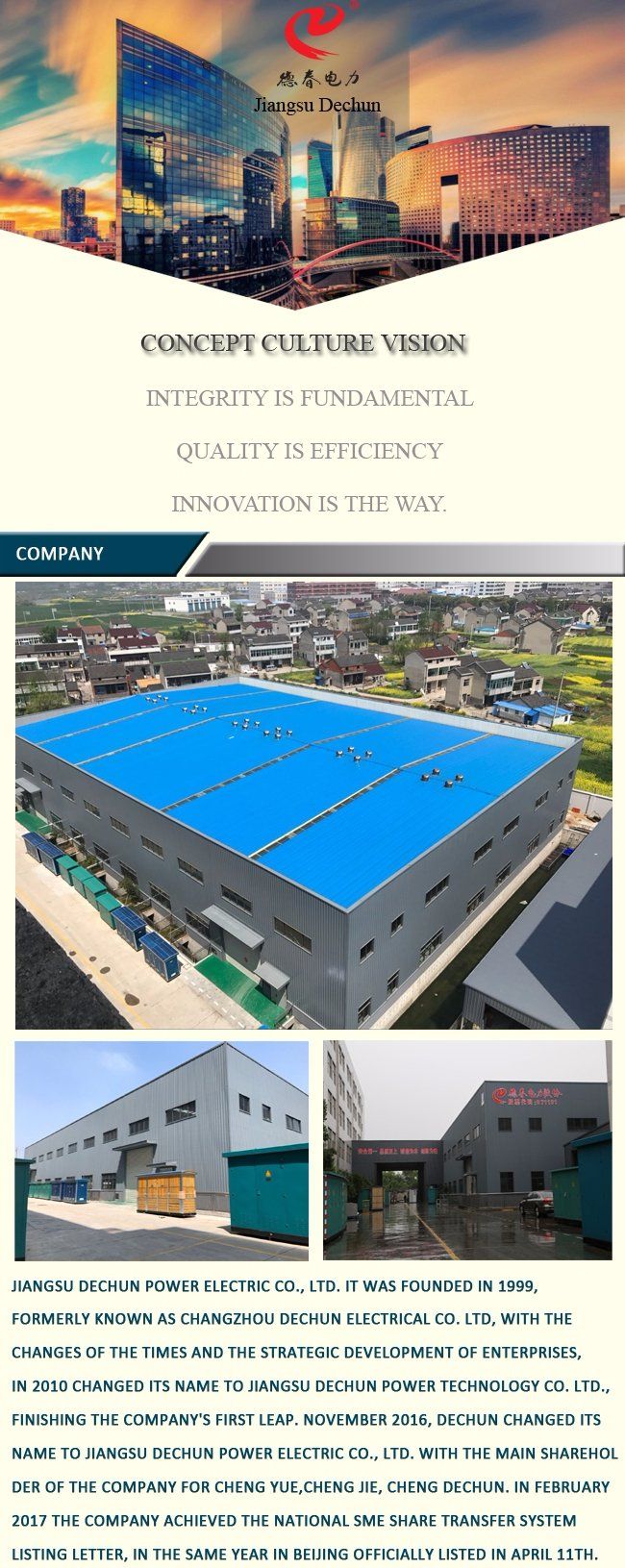

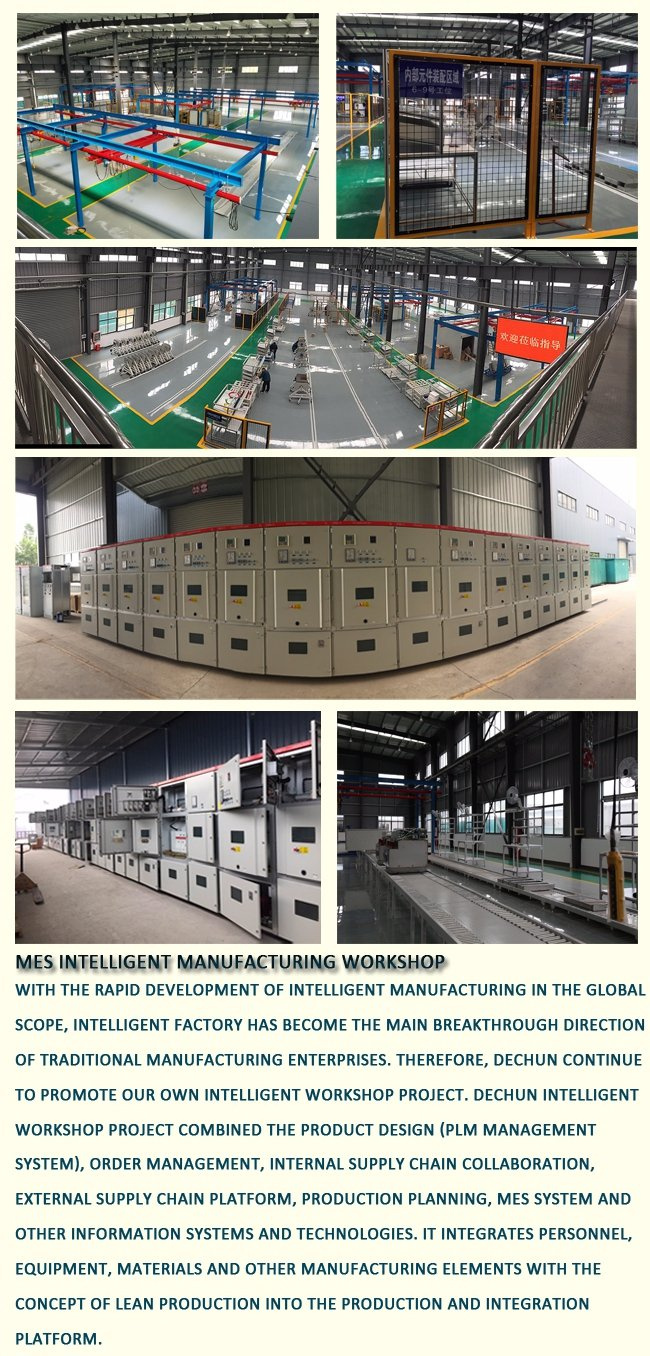

Jiangsu Dechun Power Electric Co., Ltd is located in Menghe Fumin Industrial Park, Xinbei District, Changzhou, Jiangsu Province. It founded in 1999 and covers an area of 50 acres. It built with modern standards for the delivery room 56, 000 square meters and a total investment of 200 million yuan with more than 300 employees. Dechun is one of the domestic key enterprise which researches products such as sulfur hexafluoride load switch, vacuum load switch, sulfur hexafluoride ring network cabinet, cabinets and so on. Dechun has improved production equipment, complete testing equipment and applicable to the product technology standard and tooling facilities.

Since its inception, the company has been adhering to the "integrity is fundamental, quality is the efficiency, innovation is the way, " the guiding ideology, constantly optimizes the quality of management. It has always been to new high-tech products as a guide, develops new products, creates a new brand, and constantly improves the technological content and market share. Under the support, as always, from all sections of the community and all the joint efforts of everyone in the company, Dechun was identified as "key national high-tech enterprise", "high-tech enterprises in Jiangsu Province", "private technology enterprises in Jiangsu Province ", "high-tech SMEs in Jiangsu ", "Credit management standard enterprise of Jiangsu Province " and other honors. It also accessed to hundreds of town, district, municipal, provincial and national awards. At the same time, it has passed National safety production standard (grade 2), ISO9001: 2008 quality management system certification and CCC authentication.
